Schematic and Routing Diagram
>>
Wipers and Washer System Circuit Wiring Diagram
>>
For NOTCHBACK Model
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
For NOTCHBACK Model

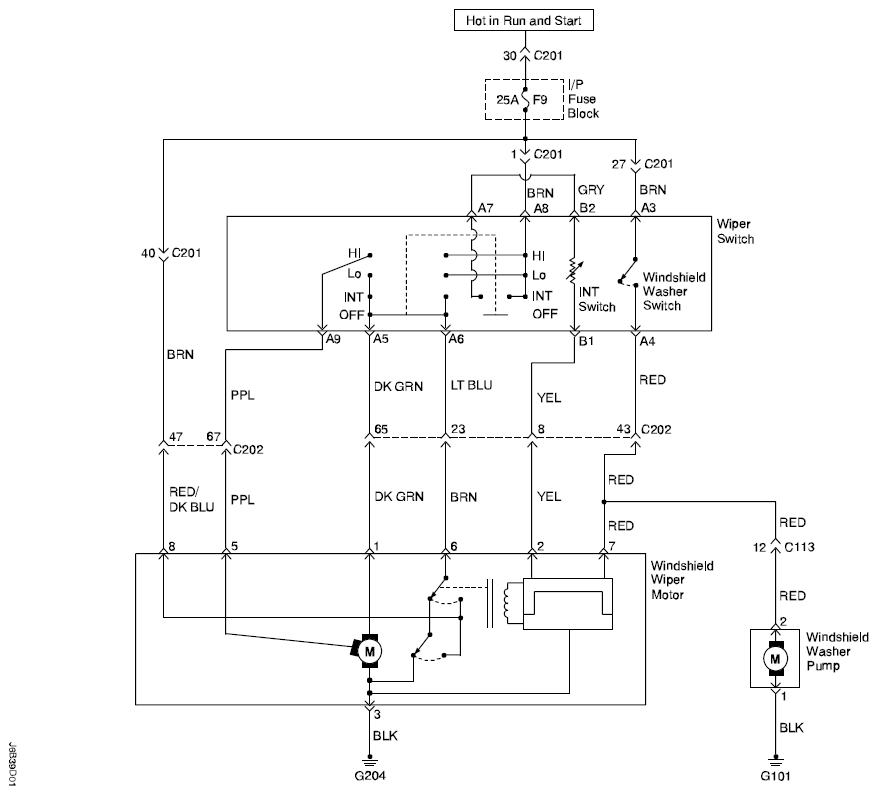

Fig 1: Wipers And Washer System Circuit Wiring Diagram - Notchback Model
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
