Select Lever Components

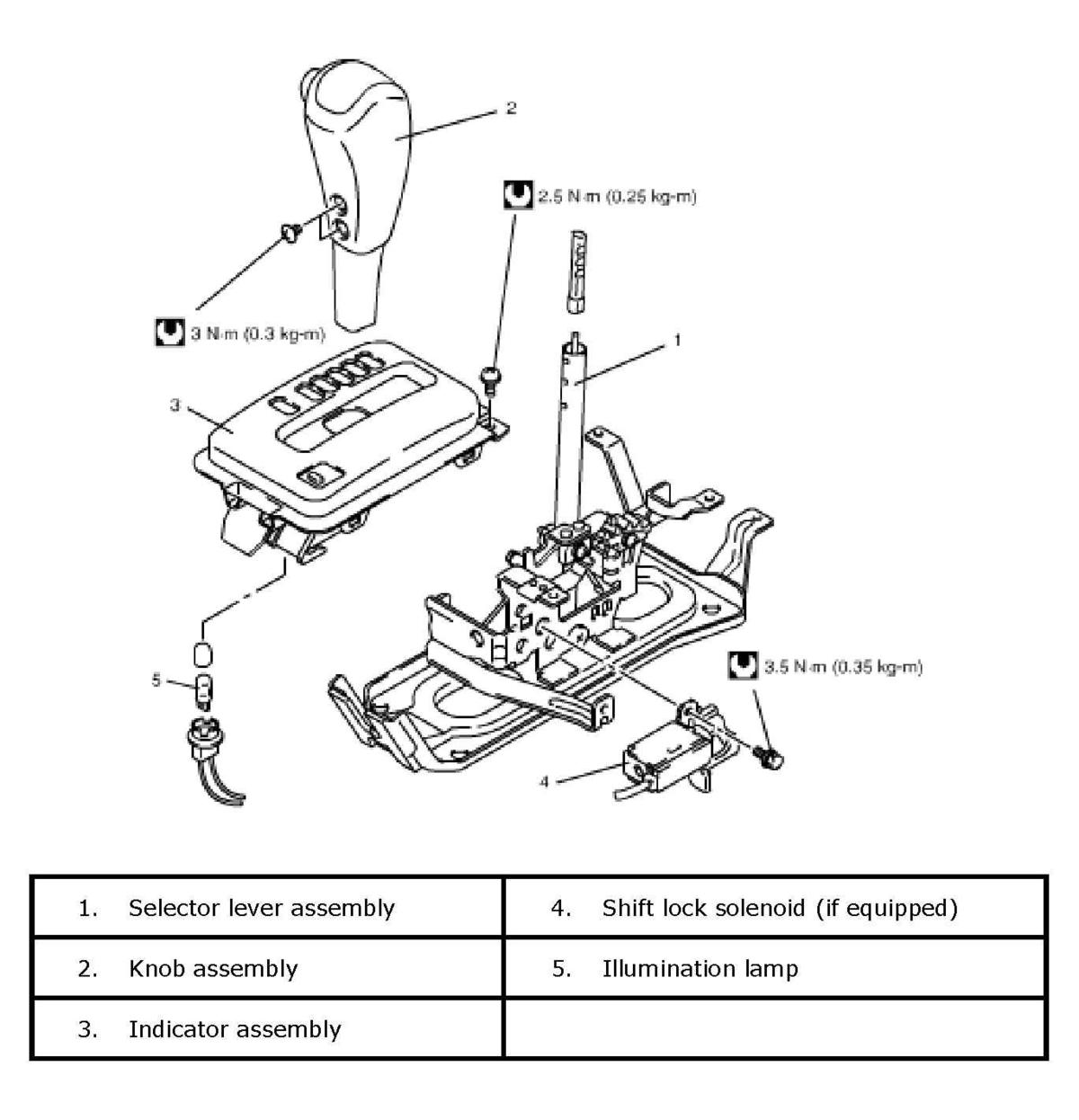

Fig 1: Identifying Select Lever Components

G04591866

Courtesy of SUZUKI OF AMERICA CORP.
