Water Pump Inspection

CAUTION: Do not disassemble water pump.
If any repair is required on pump, replace it as assembly.

Rotate water pump by hand to check for smooth operation. If pump does not rotate smoothly or makes abnormal noise, replace it.

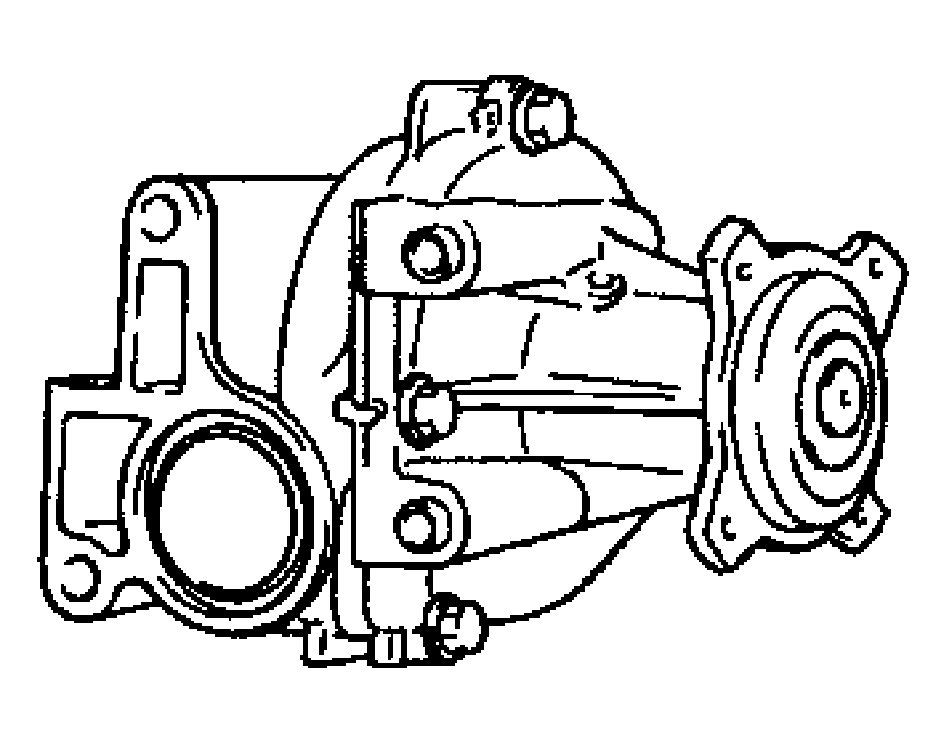

Fig 1: Identifying Water Pump
Courtesy of SUZUKI OF AMERICA CORP.

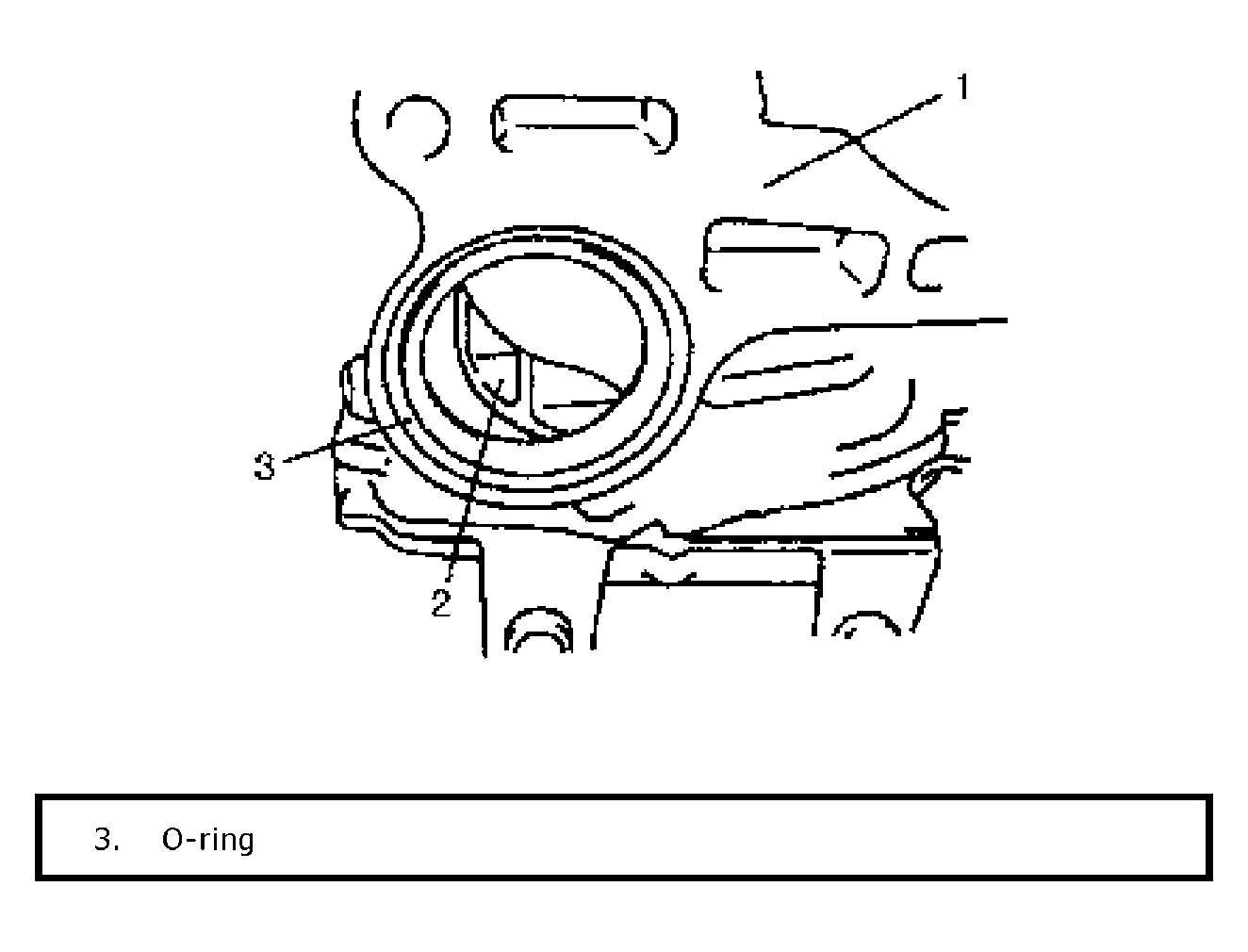

Inspect water pump (1) impeller (2) for damage.
Replace as necessary.

Fig 2: Inspecting Water Pump Impeller
Courtesy of SUZUKI OF AMERICA CORP.
