Steering Wheel Removal and Installation: Removal

Remove driver air bag (inflator) module from steering wheel. Refer to AIR BAG SYSTEM -- AERIO .

Fig 1: Removing Driver Air Bag Module From Steering Wheel
Courtesy of SUZUKI OF AMERICA CORP.

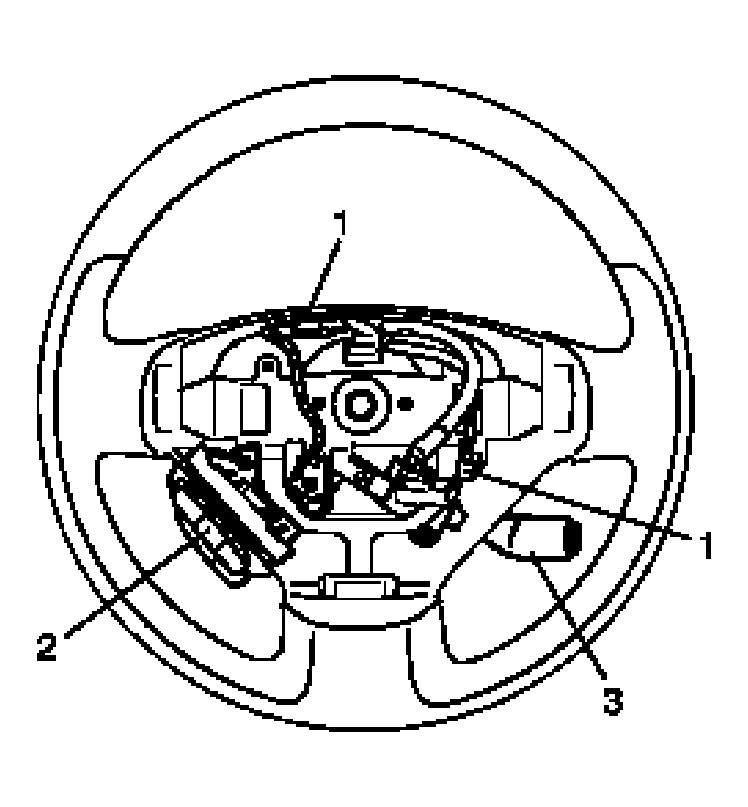

Disconnect connector (1) from audio control switch (2) and cruise control lever (3), if vehicle equipped.

Fig 2: Disconnecting Connector From Audio Control Switch And Cruise Control Lever
Courtesy of SUZUKI OF AMERICA CORP.
Remove steering shaft nut.
Make alignment marks (1) on steering wheel and shaft for a guide during reinstallation.
CAUTION: Do not hammer the end of the shaft. Hammering it will loosen the plastic shear pins which maintain the column length and impair the collapsible design of the column.

Fig 3: Identifying Alignment Marks Position
Courtesy of SUZUKI OF AMERICA CORP.
Remove steering wheel (1) with special tool.
Special Tool

(A): 09944-36011

Fig 4: Removing Steering Wheel With Special Tool
Courtesy of SUZUKI OF AMERICA CORP.
