Rear Door Window Regulator Removal and Installation: Removal

  1. Remove door glass referring to REAR DOOR GLASS REMOVAL AND INSTALLATION .
  2. Disconnect power window motor lead wire at coupler and loosen clamp.
  3. Loosen regulator mounting bolts (1) and nuts (2), and then remove rear window regulator (3).

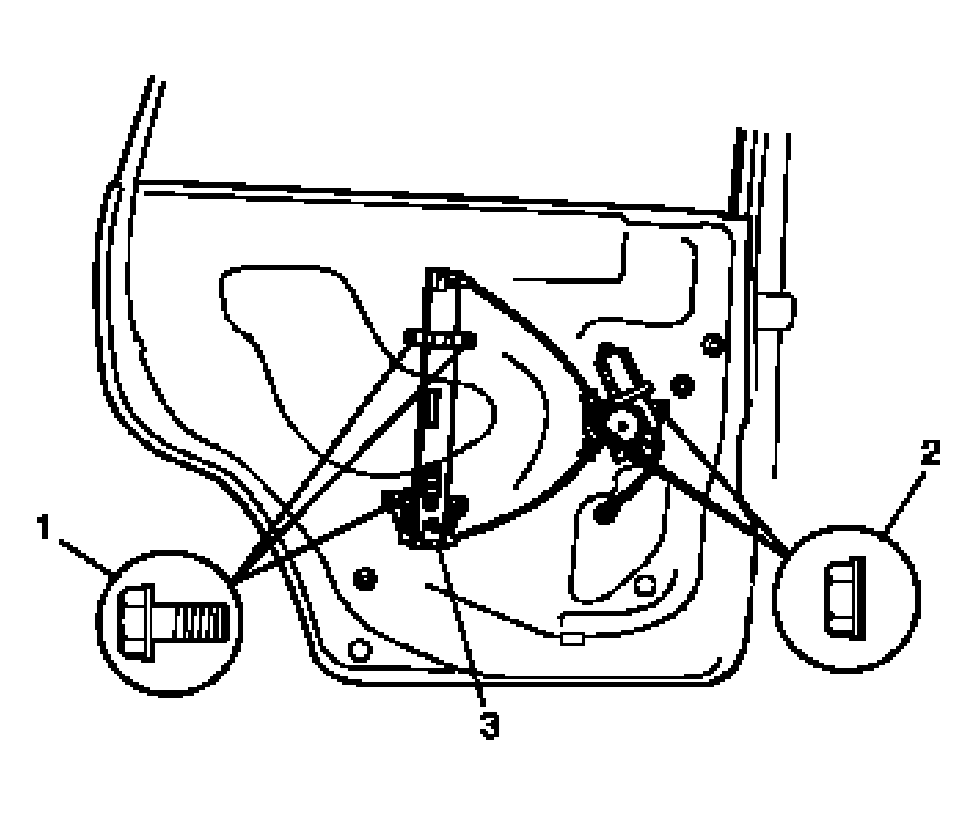

    Fig 1: Removing Rear Door Window Regulator
    G04591666Courtesy of SUZUKI OF AMERICA CORP.
