Fuel Tank Inlet Valve Removal and Installation: Removal

  1. Remove fuel tank from vehicle. Refer to FUEL TANK REMOVAL AND INSTALLATION .
  2. Remove clamp and fuel filler hose from fuel tank.
  3. Remove fuel tank inlet valve (1) using flat-bladed screwdriver.
    CAUTION: Be careful not to damage fuel tank inlet valve (1) with flat-bladed screwdriver (2).

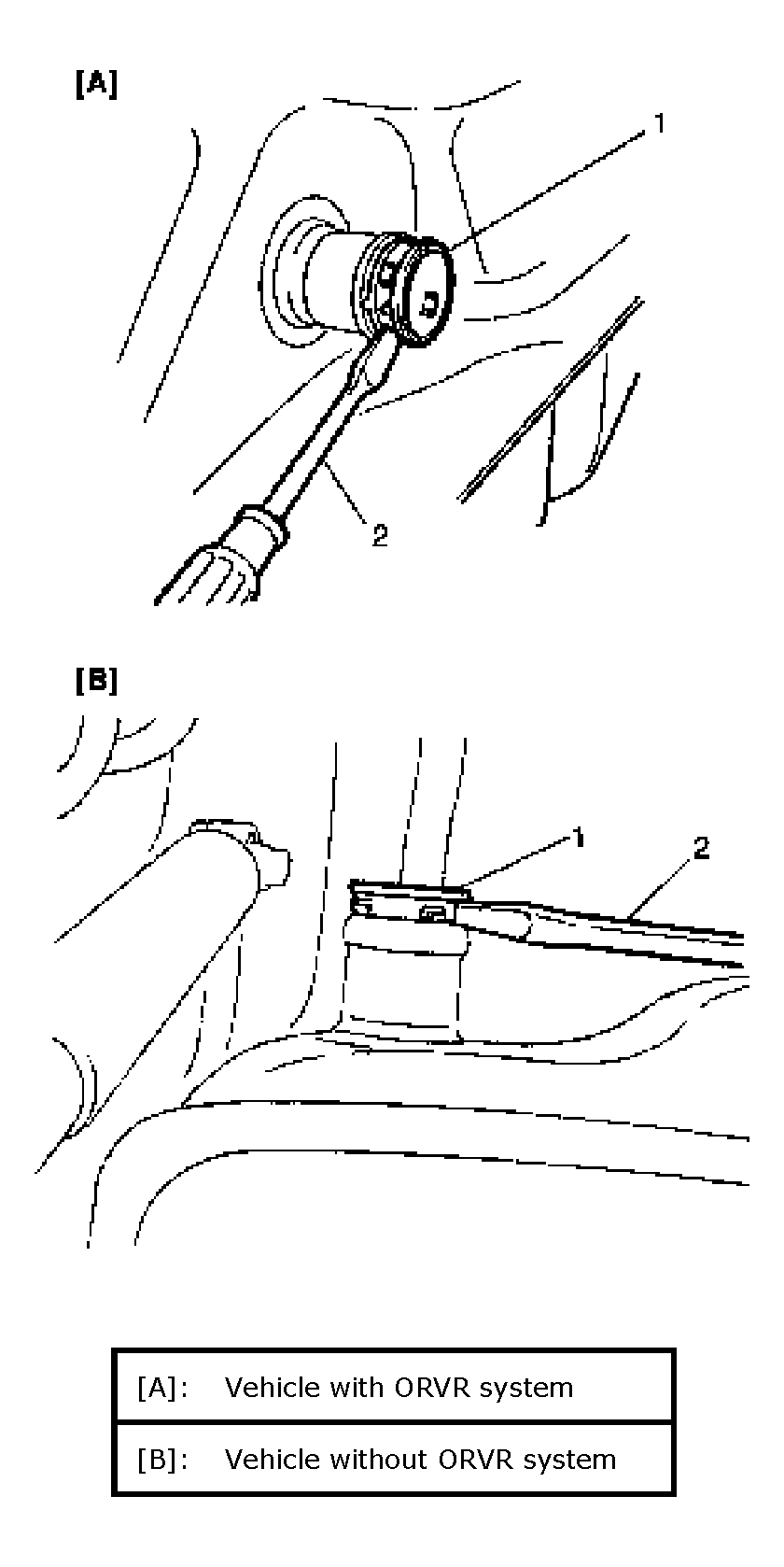

    Fig 1: Removing Fuel Tank Inlet Valve
    G04589995Courtesy of SUZUKI OF AMERICA CORP.
