Side Clearance

Using straightedge (5) and thickness gauge (4), measure side clearance.

If side clearance exceeds its limit, replace oil pump assembly.

Limit on side clearance

0.11 mm (0.0043 in.)

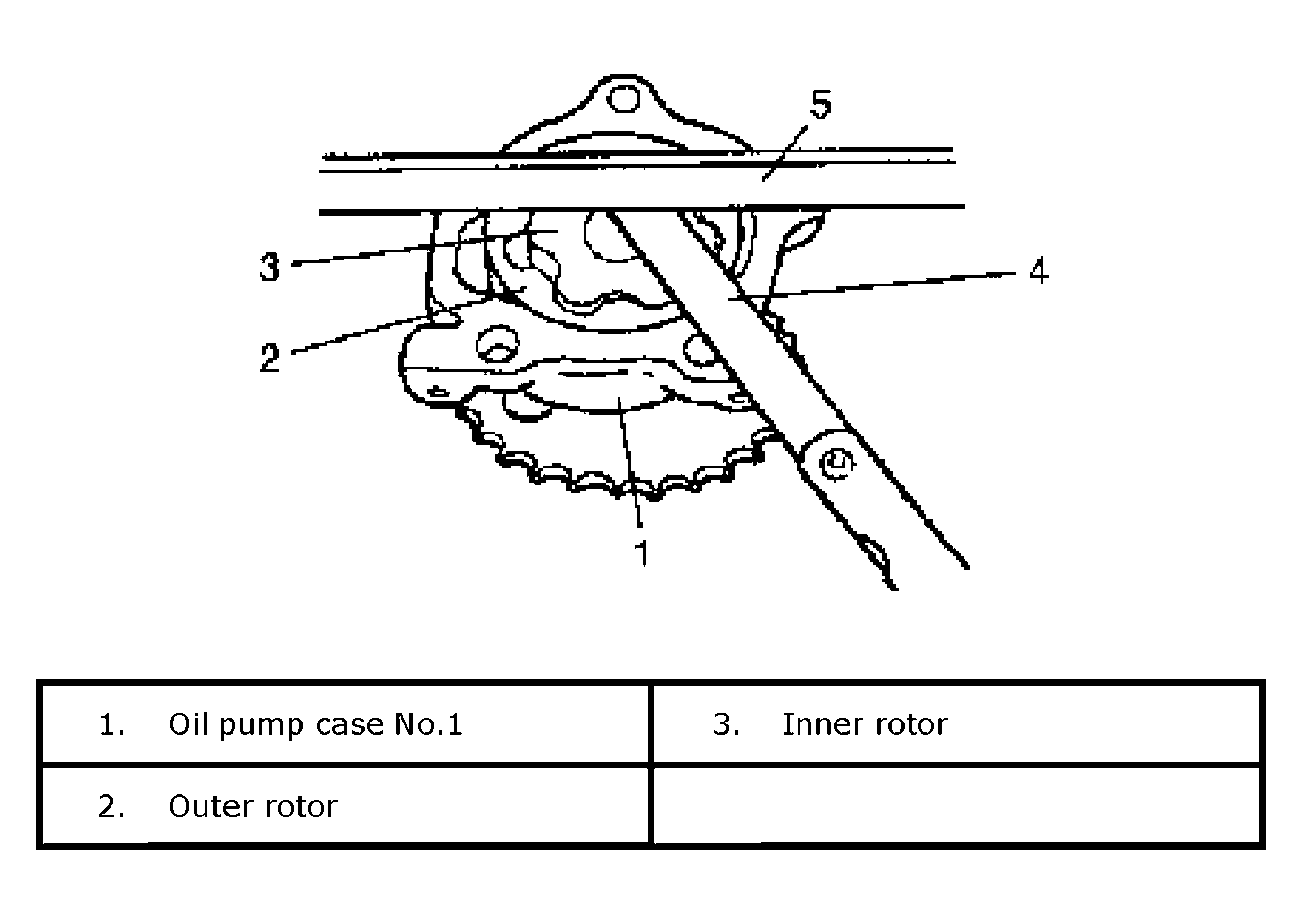

Fig 1: Checking Side Clearance

Courtesy of SUZUKI OF AMERICA CORP.
