Fog Light Bulb Replacement

Reference: FRONT FOG LIGHT ASSEMBLY REMOVAL AND INSTALLATION

WARNING:

To avoid danger of being burned, don't touch when the bulb is hot.
Don't touch glass surface of bulb to avoid deteriorate as the case may be unclear when bulb light on at dirty condition.

Remove fog light referring to FRONT FOG LIGHT ASSEMBLY REMOVAL AND INSTALLATION .
Remove fog light bulb (1) as shown.

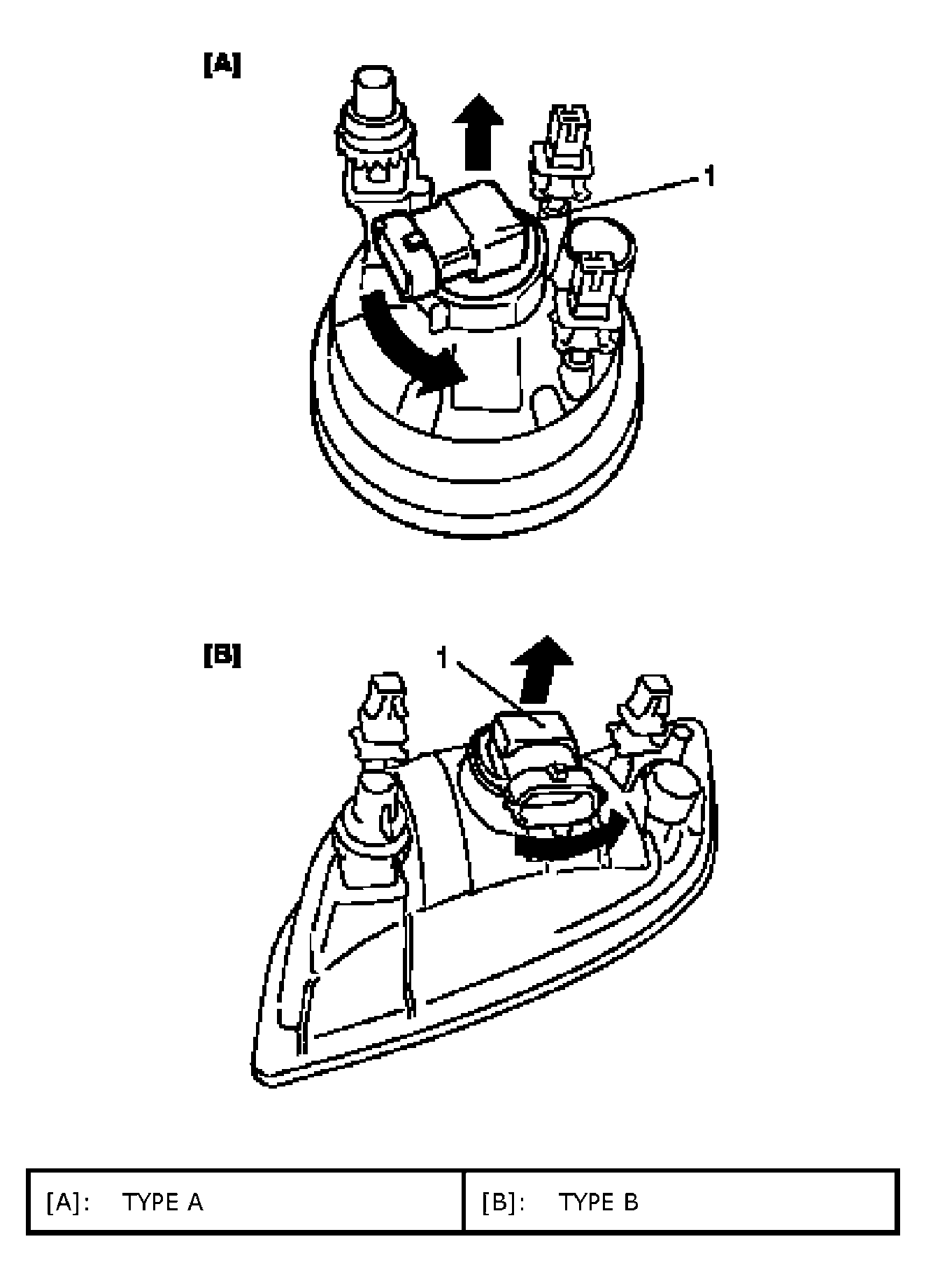

Fig 1: Identifying Fog Light Bulb (1) Removal Directions
Courtesy of SUZUKI OF AMERICA CORP.
Replace fog light bulb and assemble all removed parts.
