CMP (Camshaft Position) Sensor Removal and Installation: Removal

  1. Remove engine cover from cylinder head cover referring to ENGINE COVER REMOVAL AND INSTALLATION .
  2. Disconnect CMP sensor coupler.
  3. Remove CMP sensor (1) by removing two bolts (2).

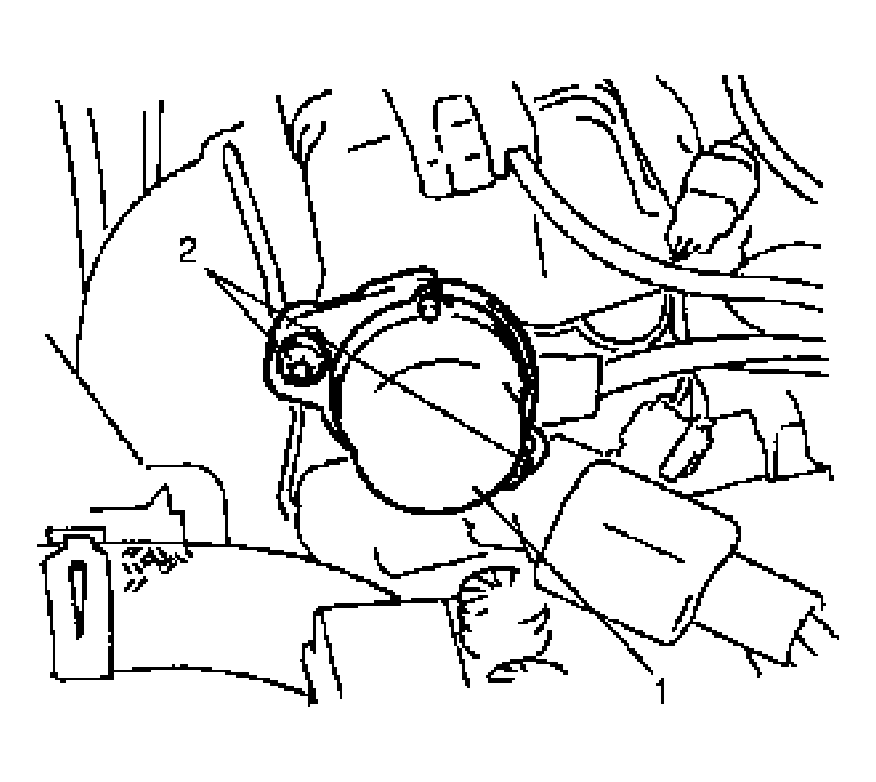

    Fig 1: Removing CMP Sensor
    G04589666Courtesy of SUZUKI OF AMERICA CORP.
