DTC P0116: Engine Coolant Temperature Circuit Range / Performance: Wiring Diagram

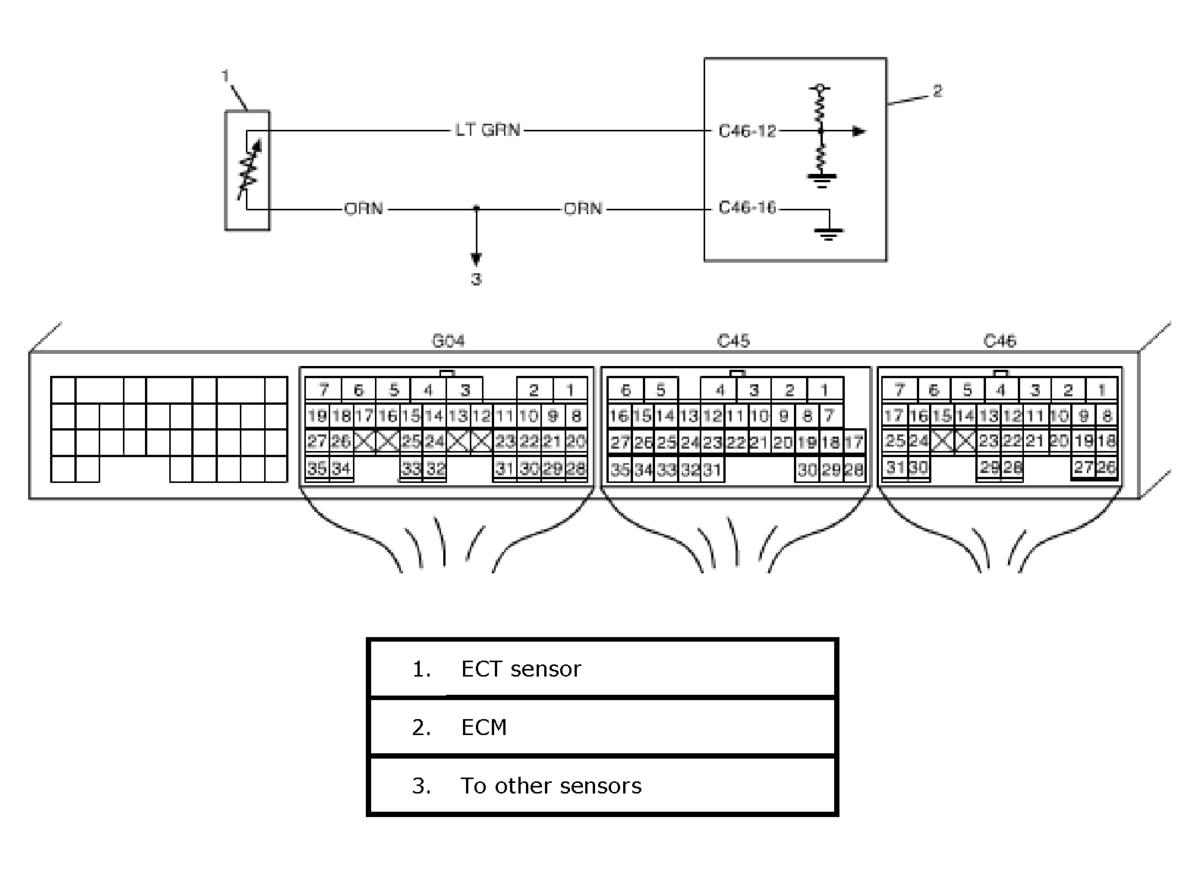

Fig 1: Engine Coolant Temperature Circuit Range / Performance - Wiring Diagram
G04589437Courtesy of SUZUKI OF AMERICA CORP.
