DTC P0107: Manifold Absolute Pressure Circuit Low Input: Wiring Diagram

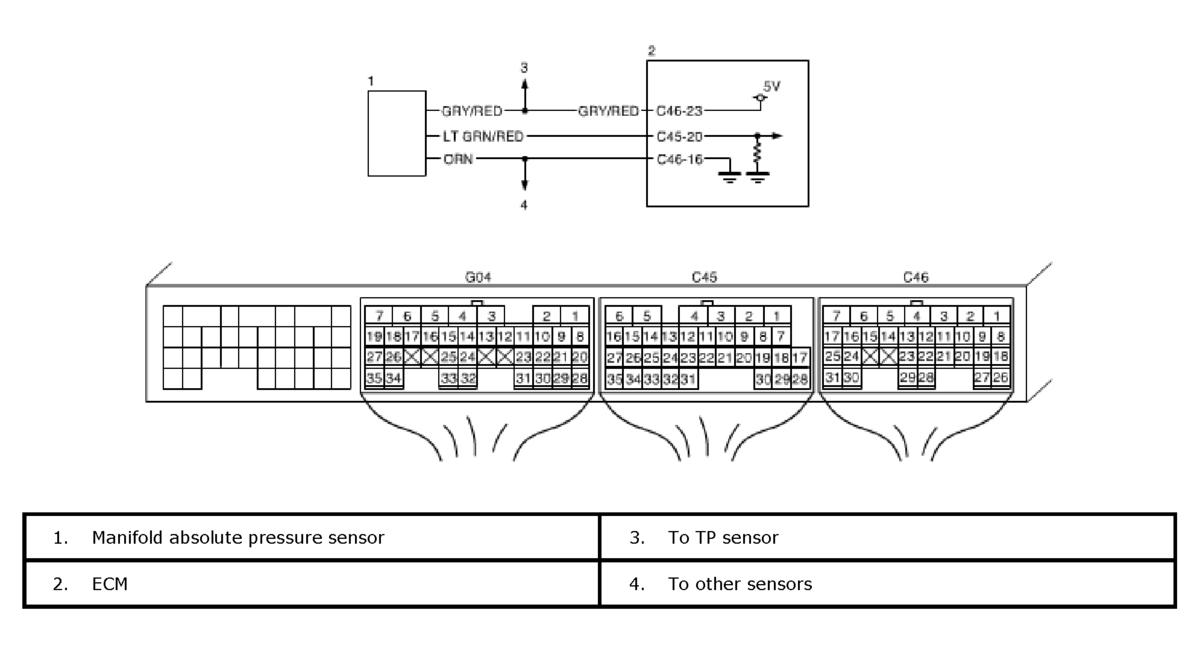

Fig 1: Manifold Absolute Pressure Circuit Low Input - Wiring Diagram
G04589428Courtesy of SUZUKI OF AMERICA CORP.
