Hold-in coil open circuit test

Check for continuity across magnetic switch "S" terminal (1) and coil case. If no continuity, coil is open and should be replaced.

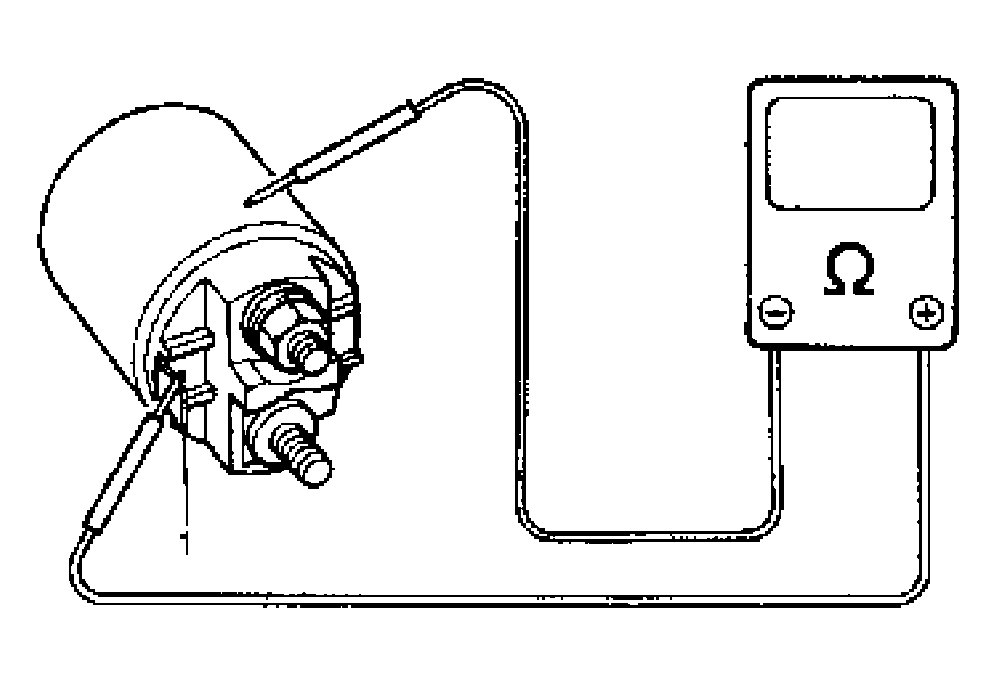

Fig 1: Checking Continuity Across Magnetic Switch S Terminal And Coil Case

Courtesy of SUZUKI OF AMERICA CORP.
