Starting Motor Dismounting and Remounting: Remounting

Reverse the dismounting procedure.

Tightening torque

Starting motor battery cable nut a: 11 N.m (1.1 kg-m, 8.0 lb-ft)

Starting motor mount bolt b: 23 N.m (2.3 kg-m, 17.0 lb-ft)

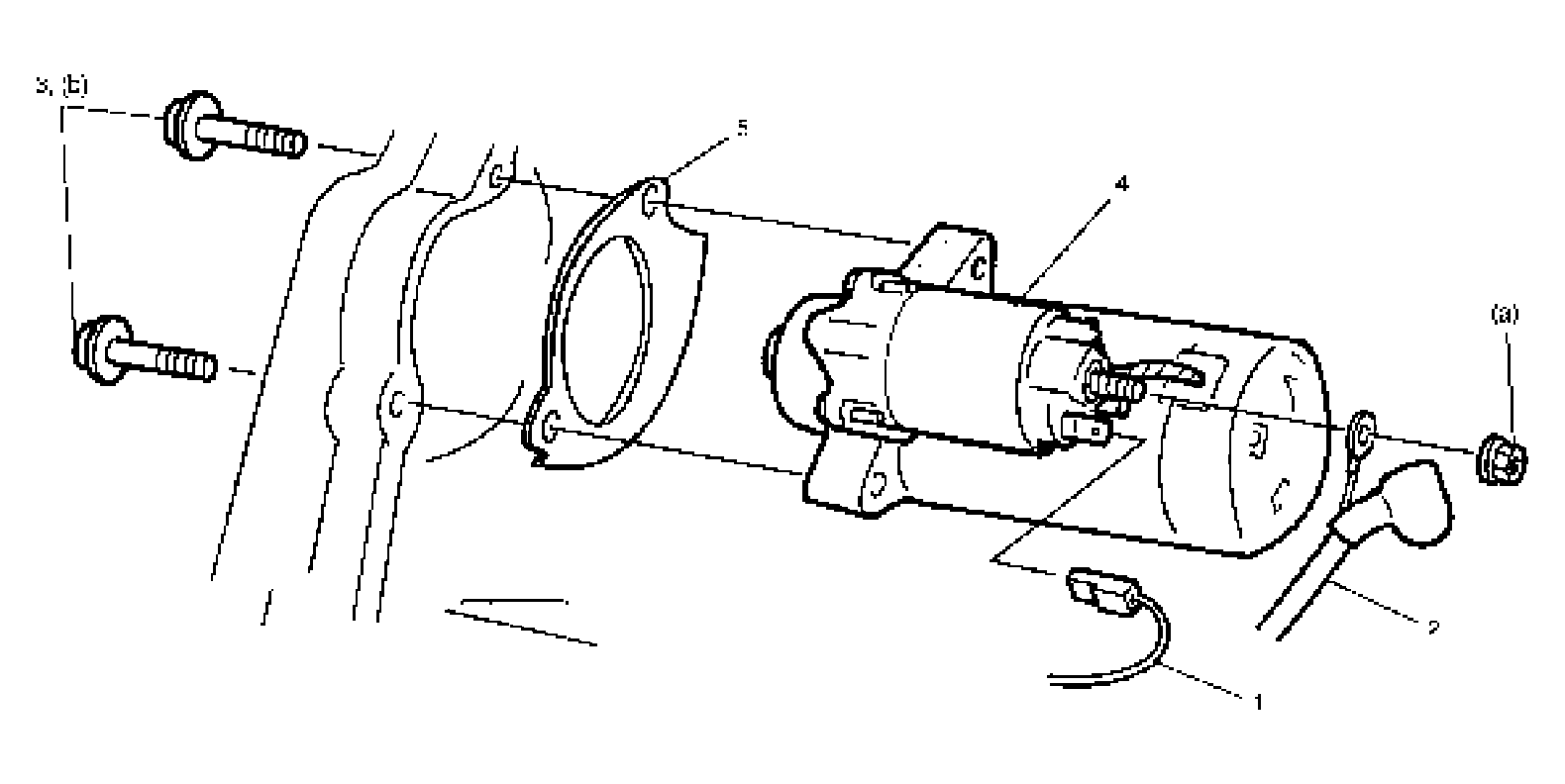

Fig 1: Removing Starting Motor Starting Motor Plate

Courtesy of SUZUKI OF AMERICA CORP.
