Front Drive Shaft Components

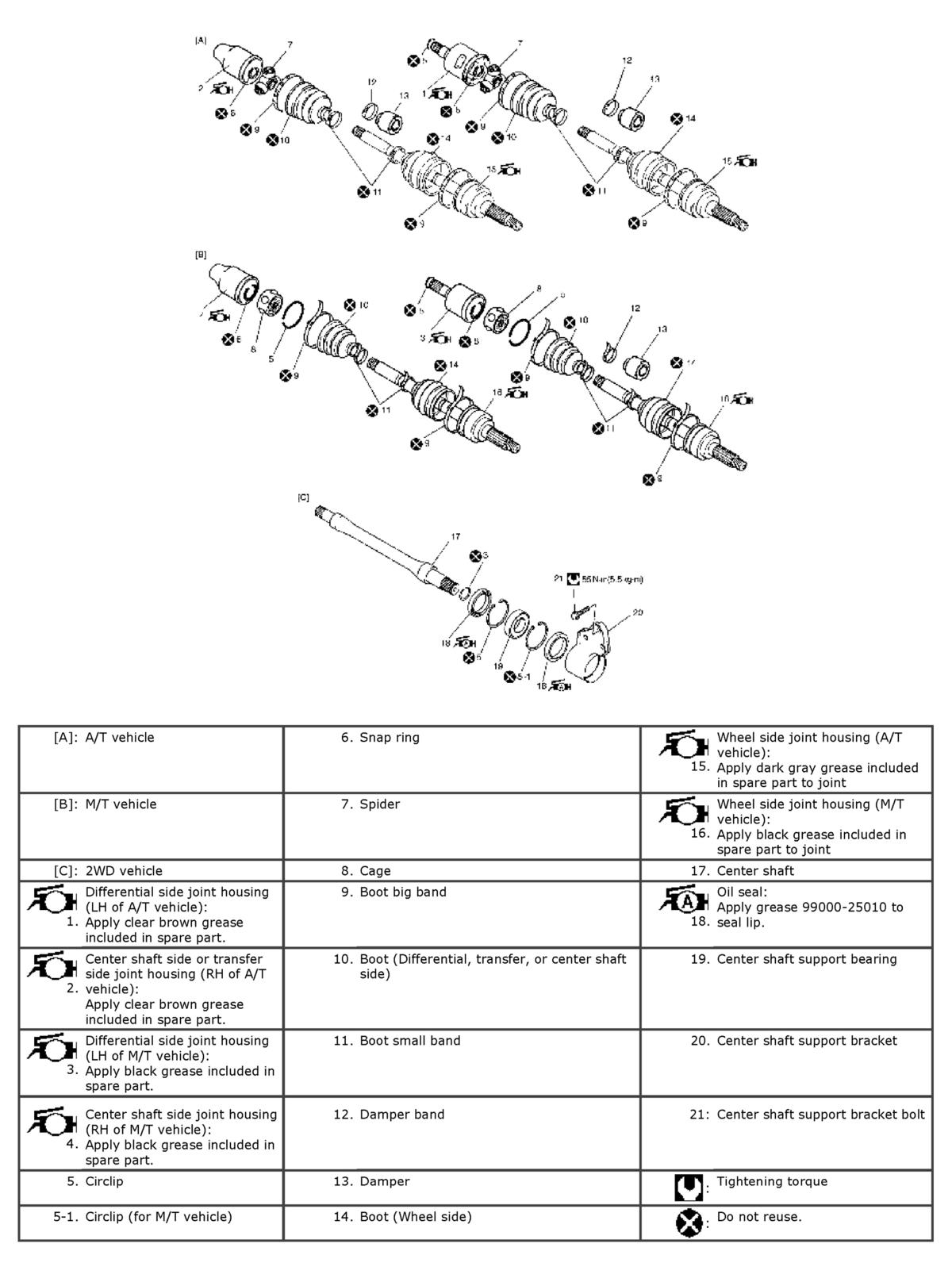

Fig 1: Identifying Front Drive Shaft Components (With Tightening Torques)
G04590280Courtesy of SUZUKI OF AMERICA CORP.
