Spot Light Inspection

Remove spot light referring to Step 1 of HEAD LINING REMOVAL AND INSTALLATION .
Check spot light bulbs. If bulb(s) are blown, replace.
Using ohmmeter, check for continuity between terminals at each switch position as shown.
If check result is not as specified, replace spot light.

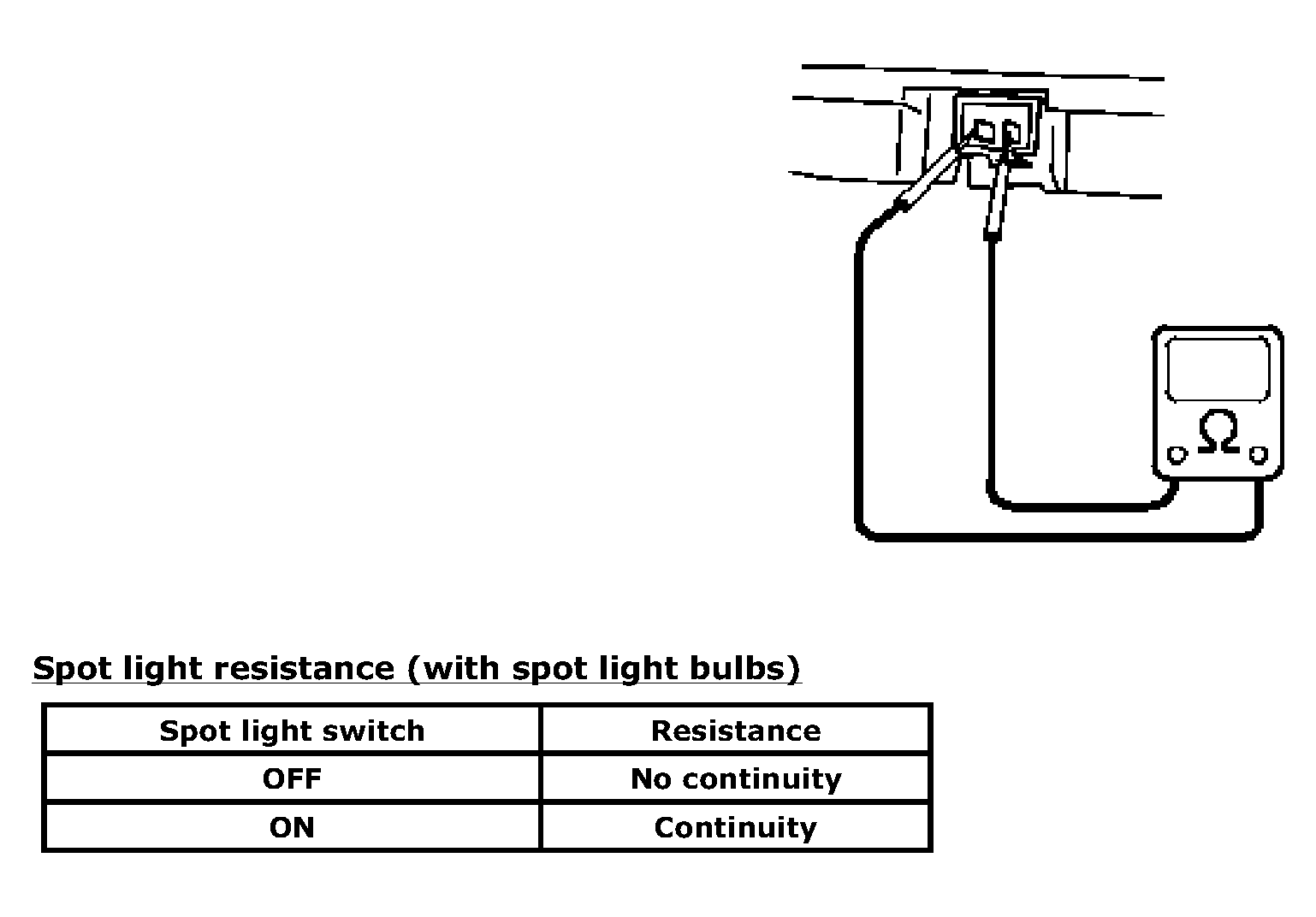

Fig 1: Measuring Resistance Between Spot Light Switch Connector Terminals Using Ohmmeter
Courtesy of SUZUKI OF AMERICA CORP.
