Removal and Replacement

Front Pillar Window Removal and Installation

Refer to Windshield Removal and Installation as removal and installation procedures are basically the same. However, note the following.

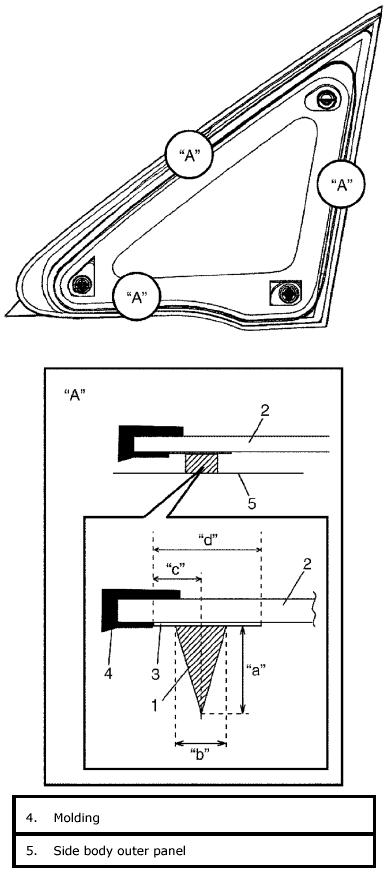

^ Observe the following precautions when applying adhesive (1) along glass (2) edge.
^ Adhesive (1) should be applied evenly especially in height.
^ Be careful not to damage primer (3).
^ Press glass against body quickly after adhesive (1) is applied.

Adhesive amount specification and position for front pillar window
Height "a": 10 mm (0.39 in.)
Width "b": 6 mm (0.24 in.)
Position "c": 4.5 mm (0.18 in.)
Width "d": 12 mm (0.47 in.)
