A/T Symptom Diagnosis

A/T Symptom Diagnosis
Trouble Diagnosis 1
Electrical repair

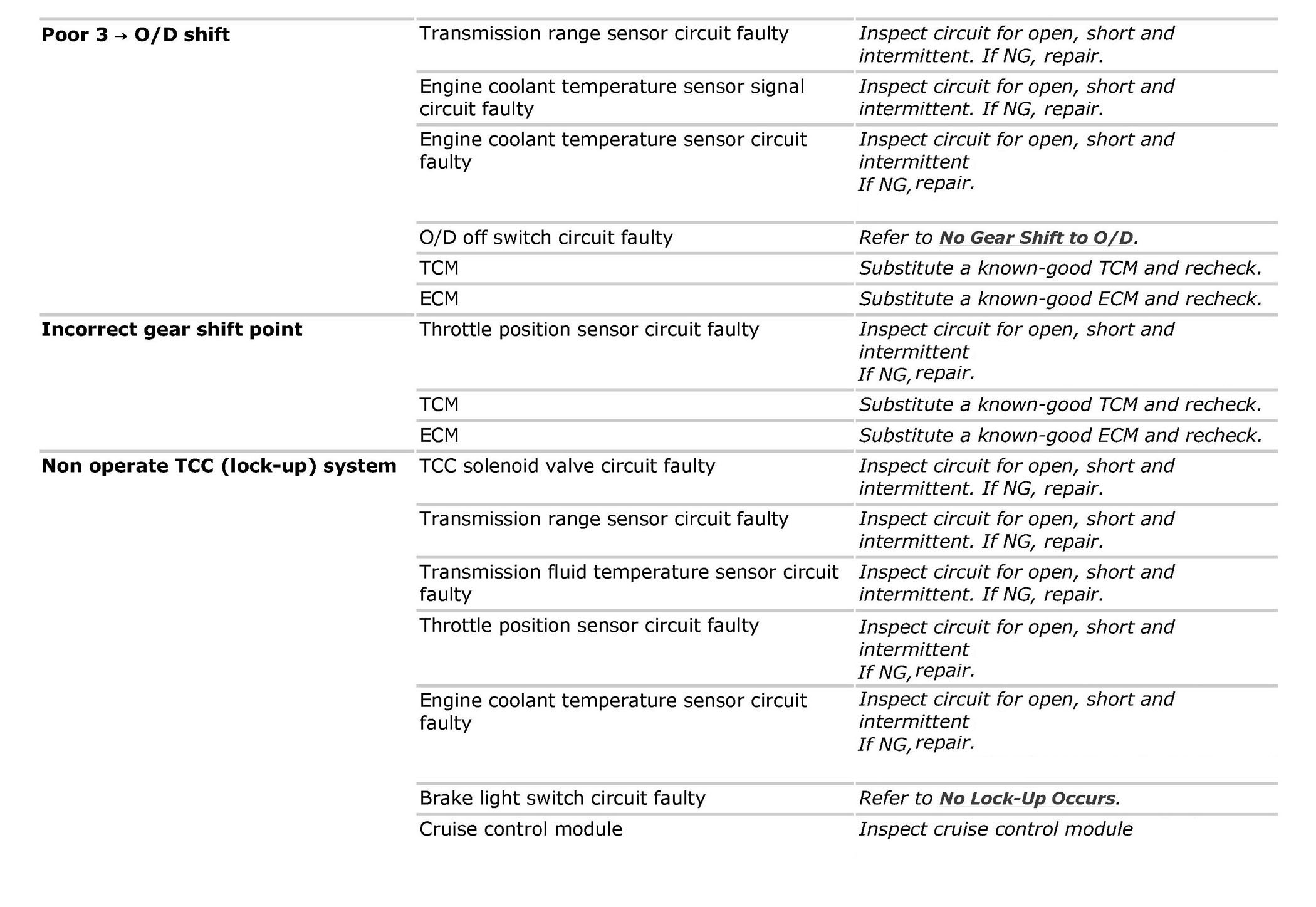

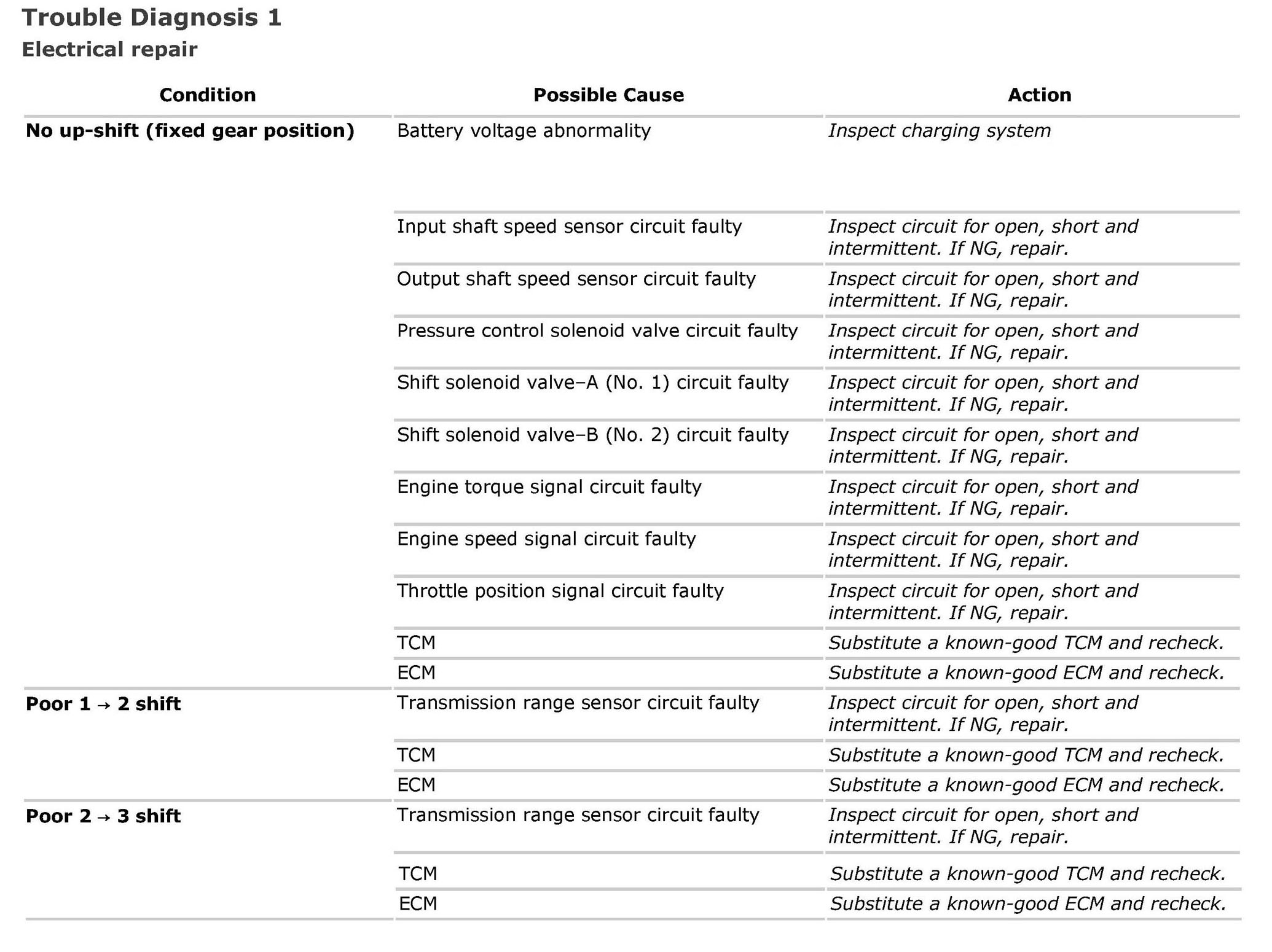

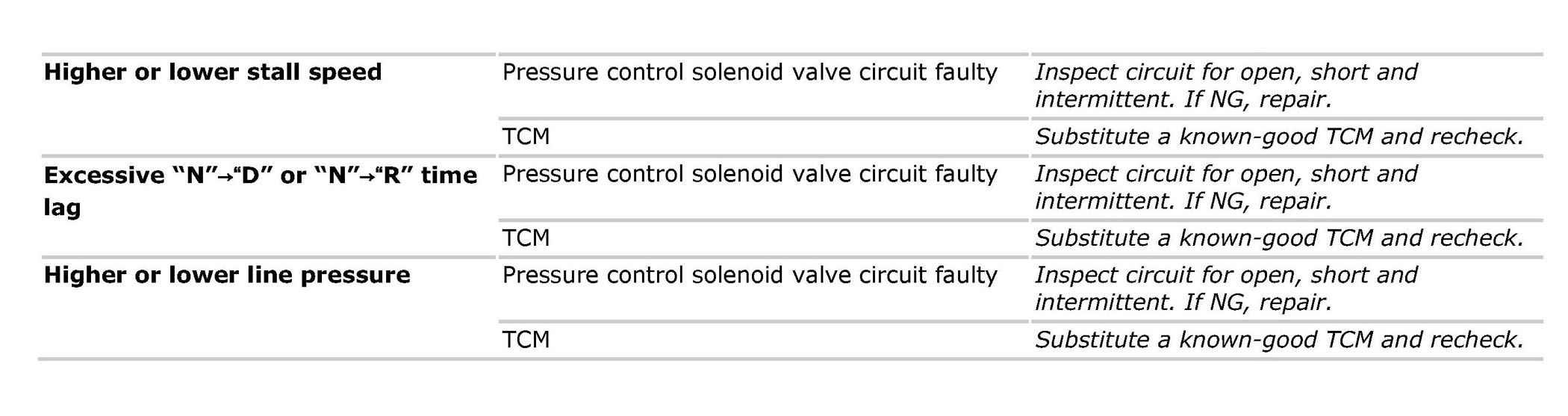

Trouble Diagnosis 1 (Electrical repair) (Part 1):




Trouble Diagnosis 1 (Electrical repair) (Part 2):




Trouble Diagnosis 1 (Electrical repair) (Part 3):





Trouble Diagnosis 2
On-vehicle repair

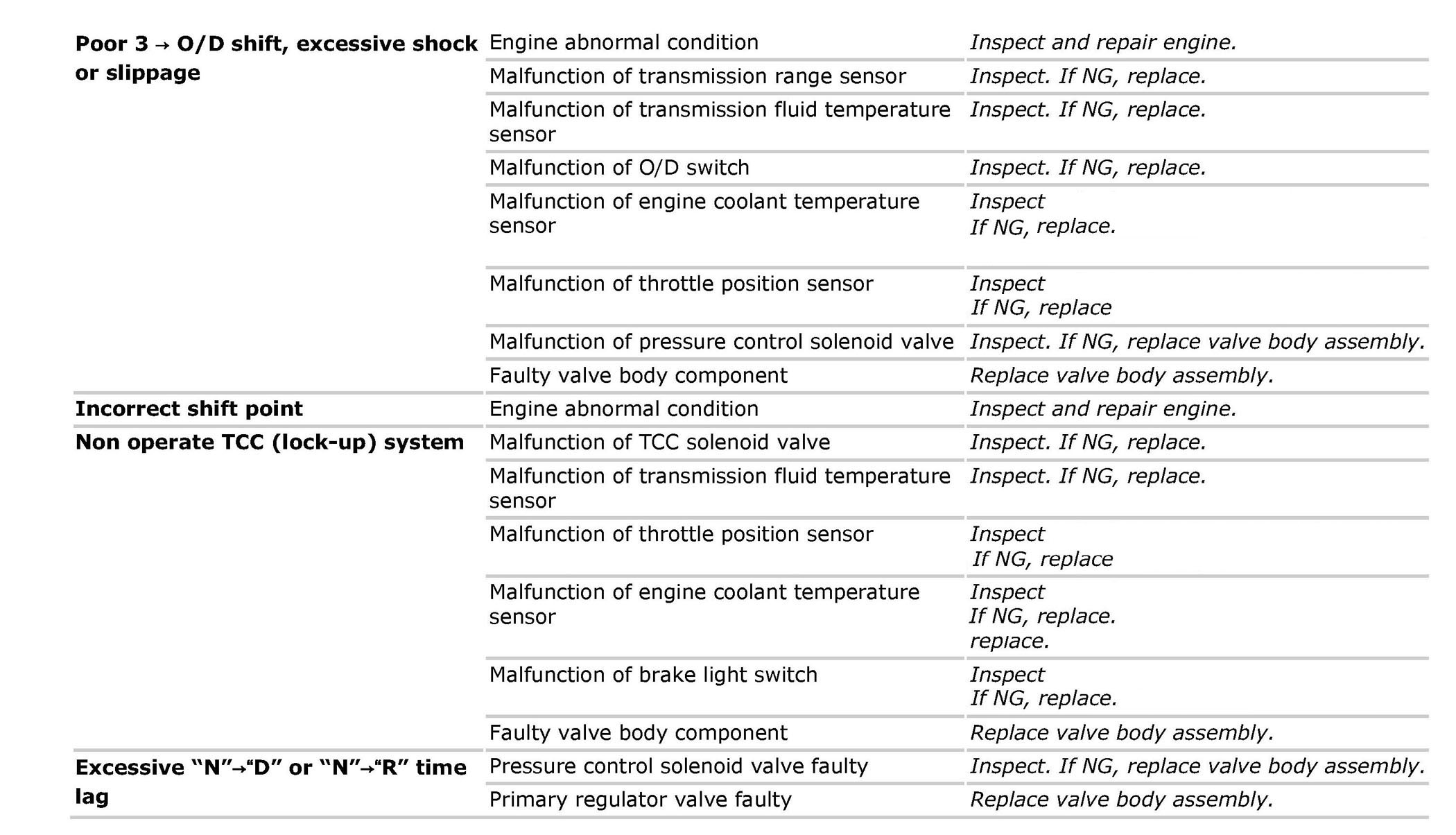

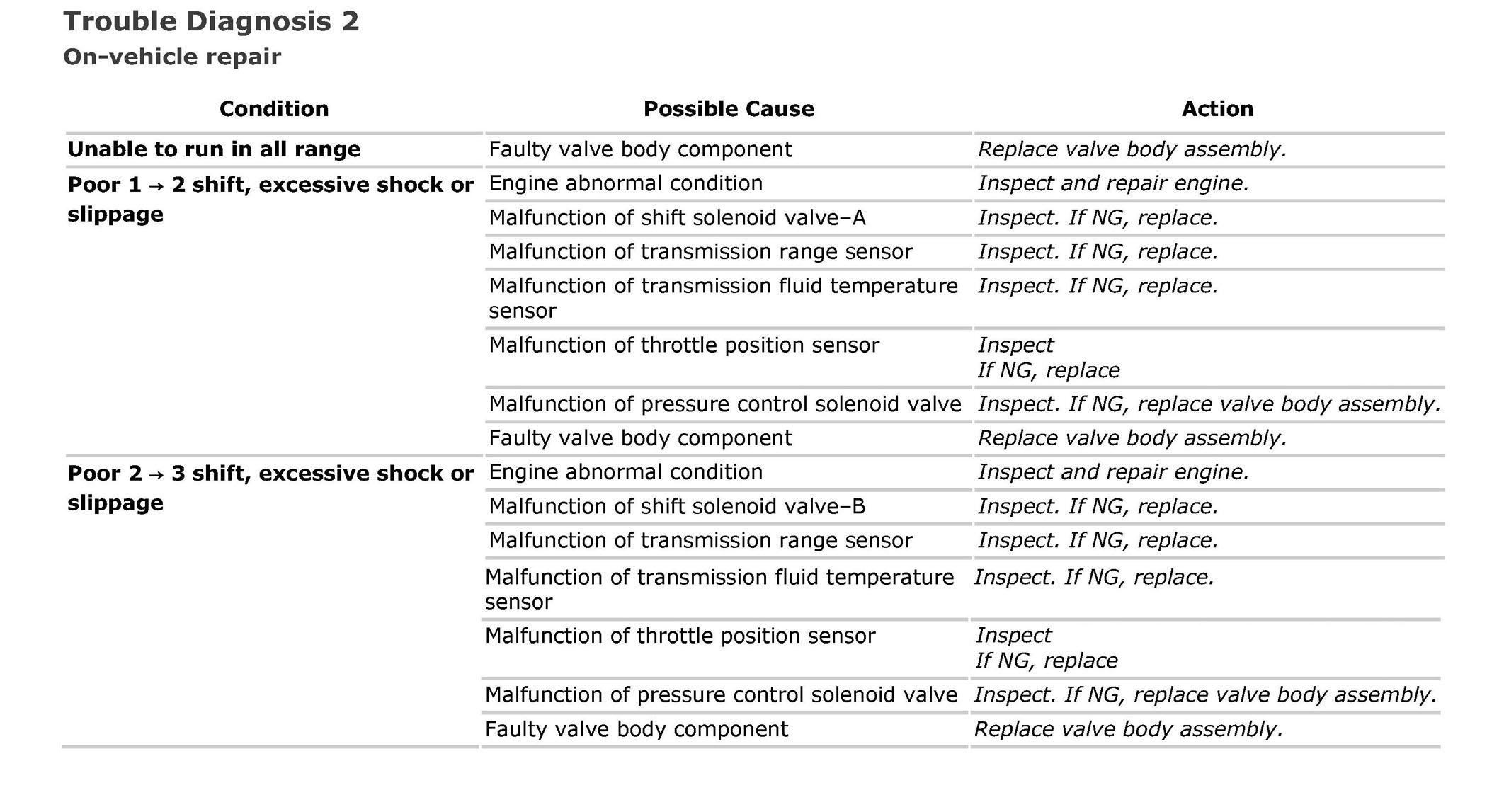

Trouble Diagnosis 2 (On-vehicle repair) (part 1):




Trouble Diagnosis 2 (On-vehicle repair) (part 2):





Trouble Diagnosis 3
Off-vehicle repair

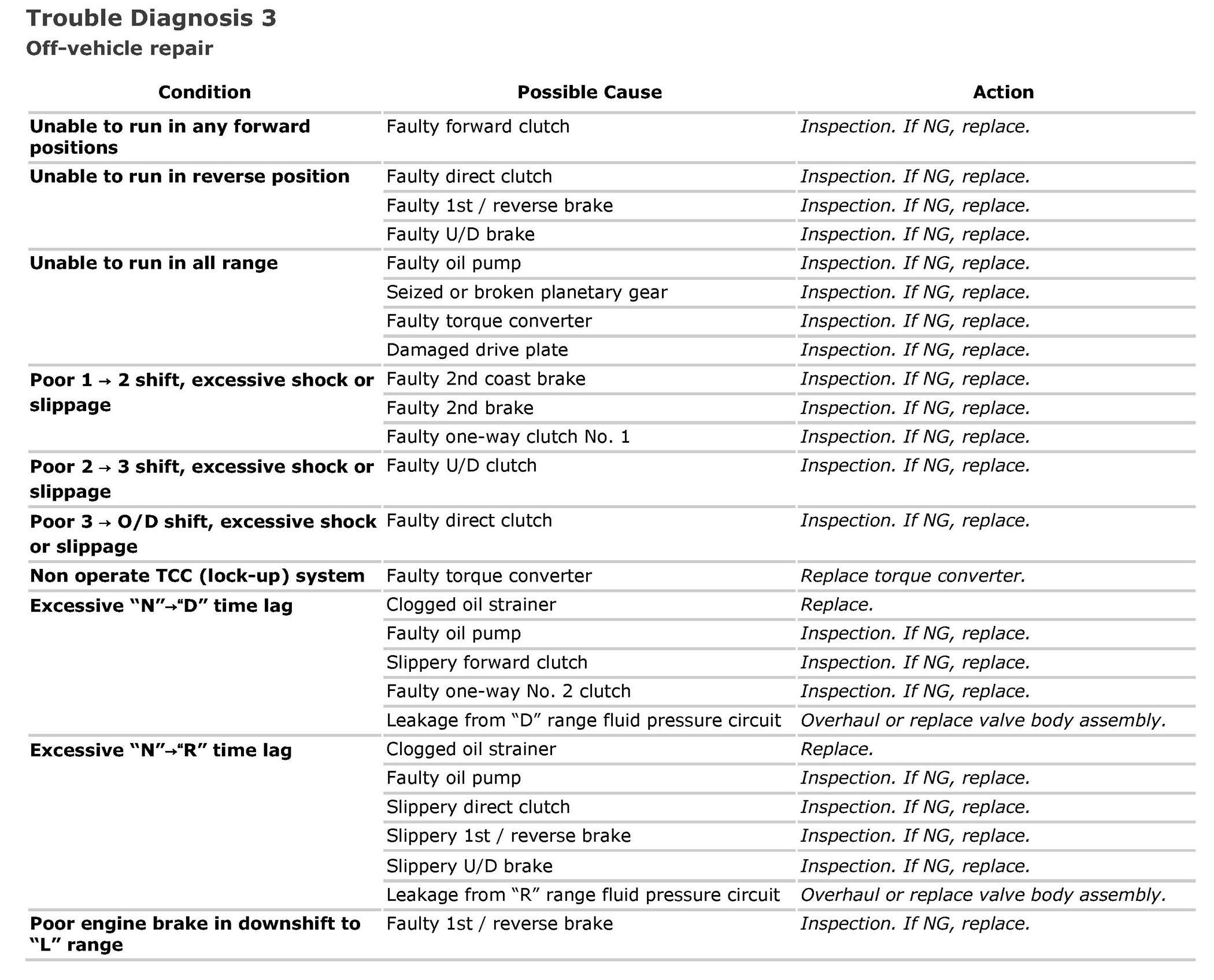

Trouble Diagnosis 3 (Off-vehicle repair):
