Without Advanced Air Bag

Air Bag Diagnostic System Check

Flow Flow Test Description

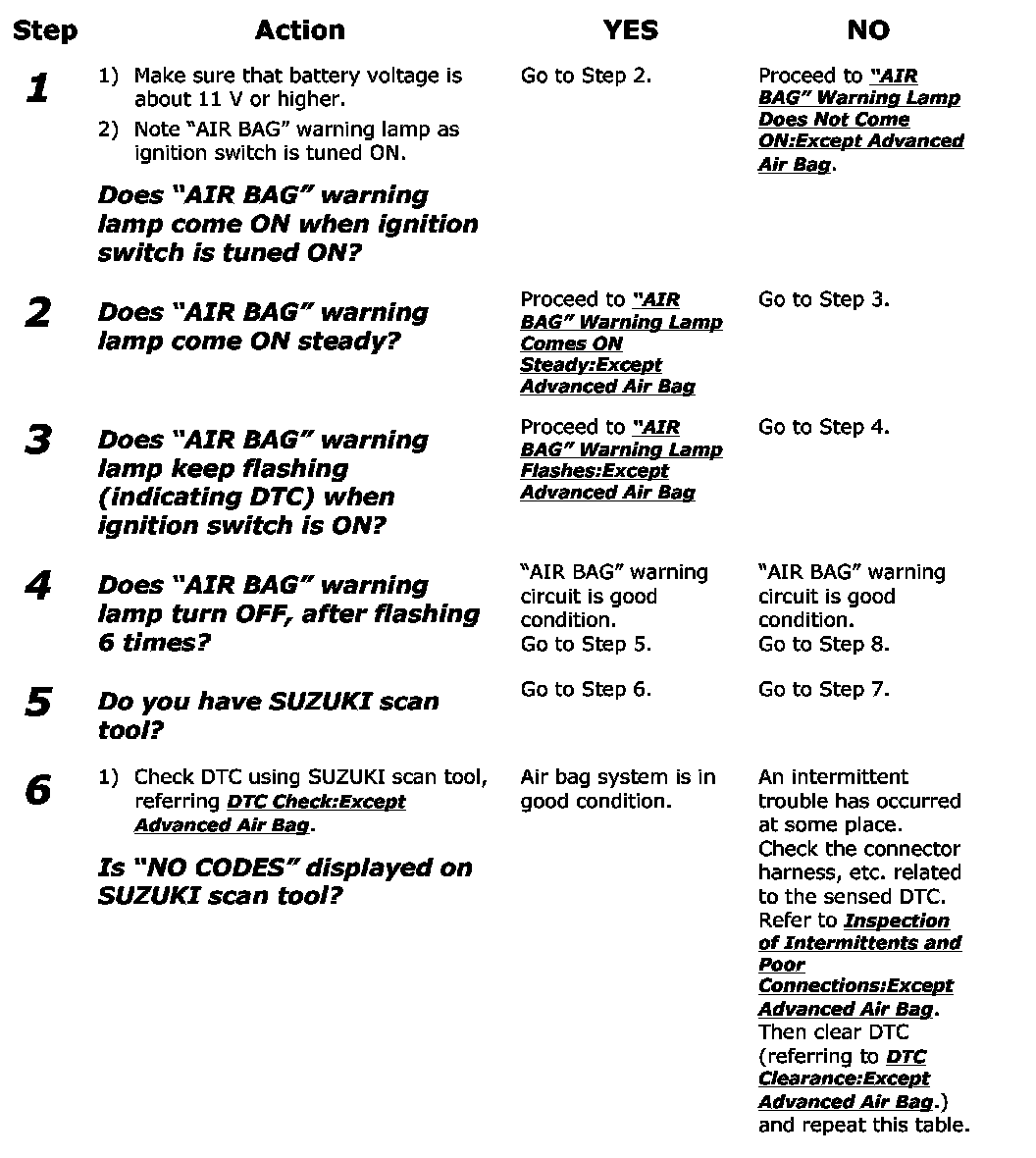

Step 1 - 6:

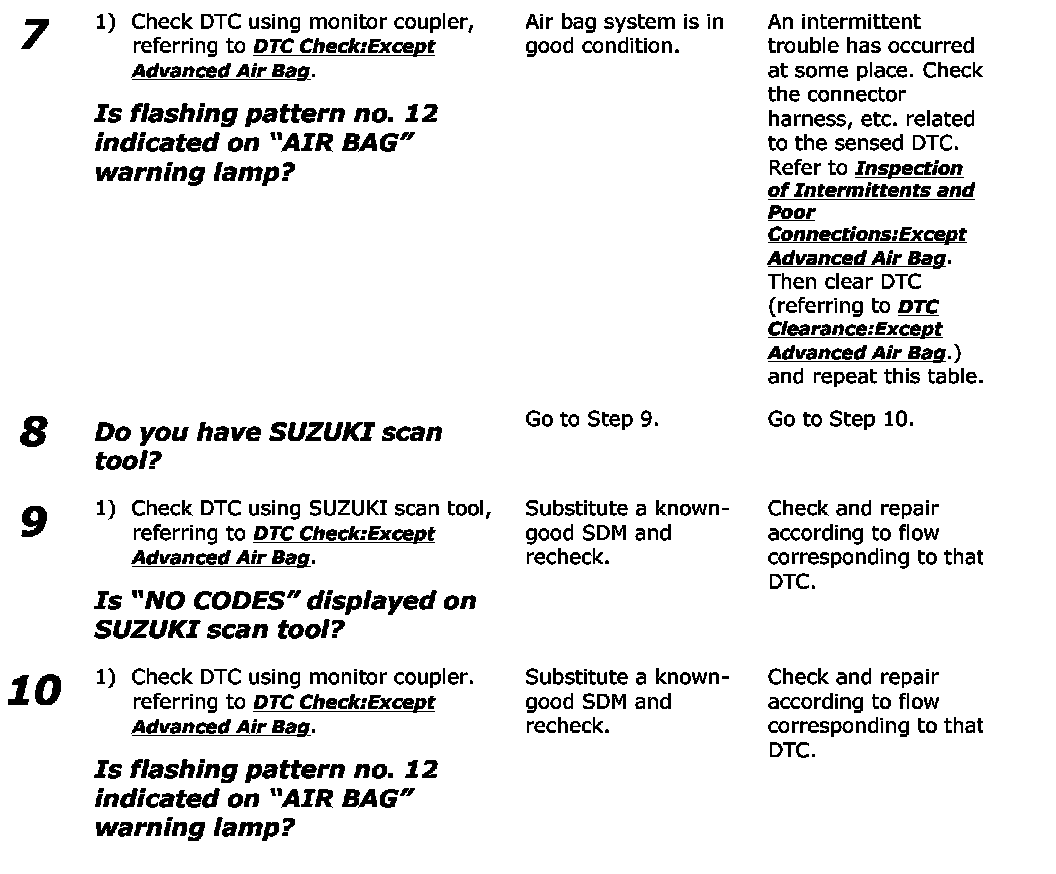

Step 7 - 10:

STEP 1: Check that AIR BAG warning lamp lights.
STEP 2: Check that AIR BAG warning lamp lights.
STEP 3: Check diagnosis switch circuit.
STEP 4: Check that AIR BAG warning lamp flashes 6 times after ignition switch is turned ON.
STEP 6: Check that history codes are in SDM memory. (using SUZUKI scan tool)
Step 7: Check that history codes are in SDM memory. (using monitor coupler)
Step 9: Check that current code is in SDM memory. (using SUZUKI scan tool)
STEP 10: Check that current code is in SDM memory. (using monitor coupler)
