Engine Basic Check

ENGINE BASIC INSPECTION

Step 1 - 5:

Step 5 (Continued) - 6:

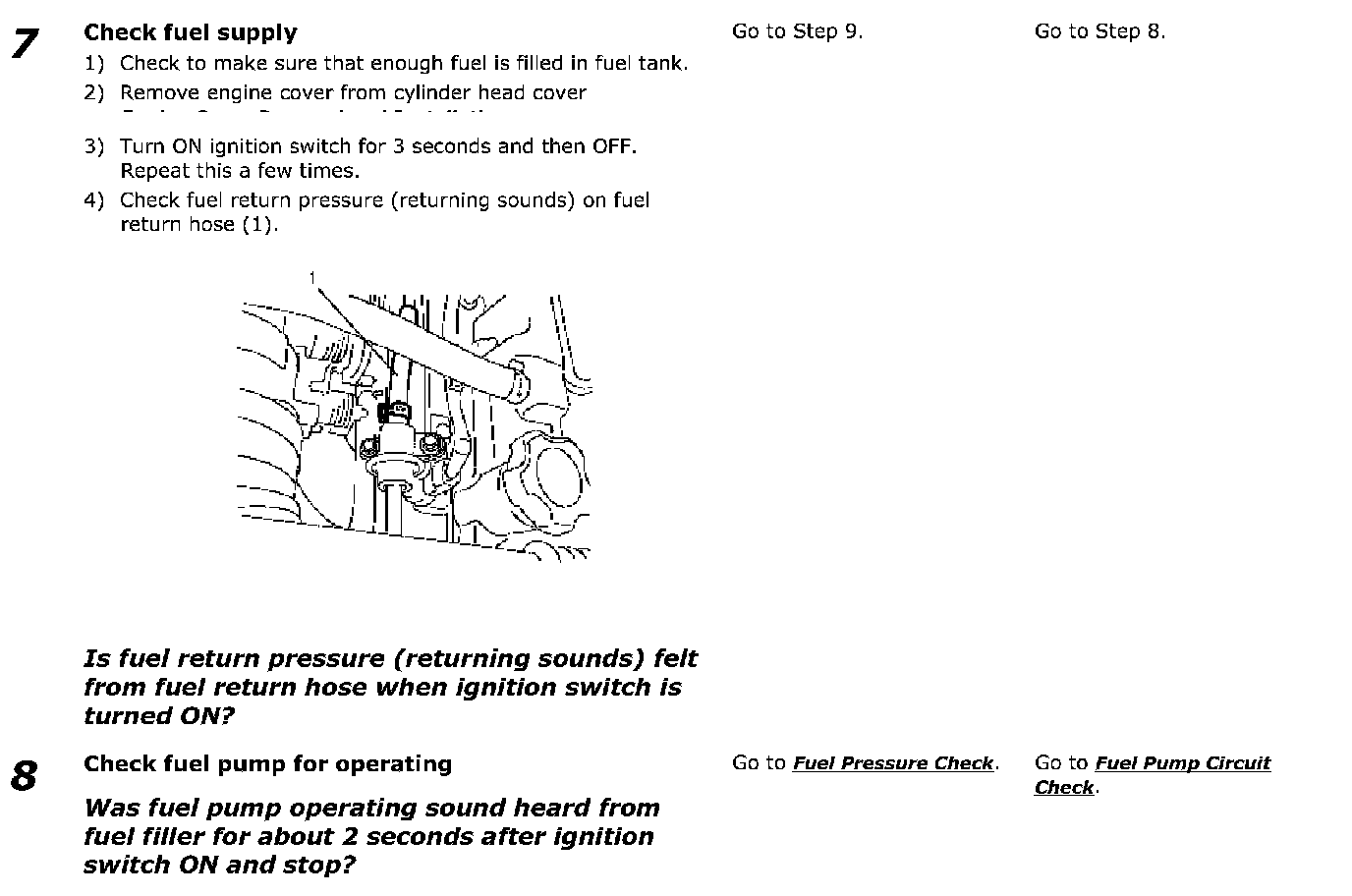

Step 7 - 8:

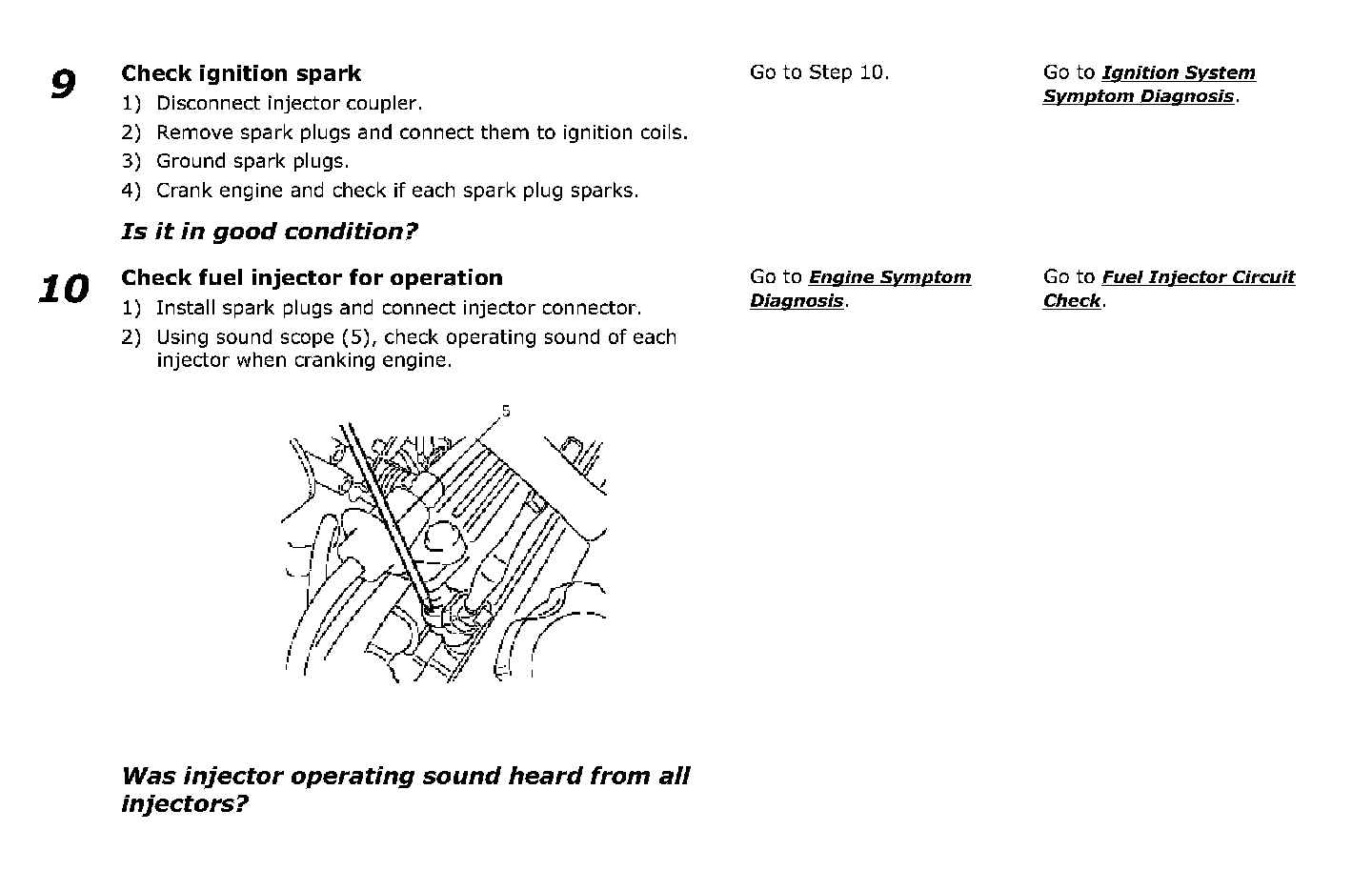

Step 9 - 10:

This check is very important for troubleshooting when ECM has detected no DTC and no abnormality has been found in visual inspection. Follow the flow carefully.
