A/C Signal Circuits Inspection

A/C Signal Circuits Check (Vehicle with A/C)

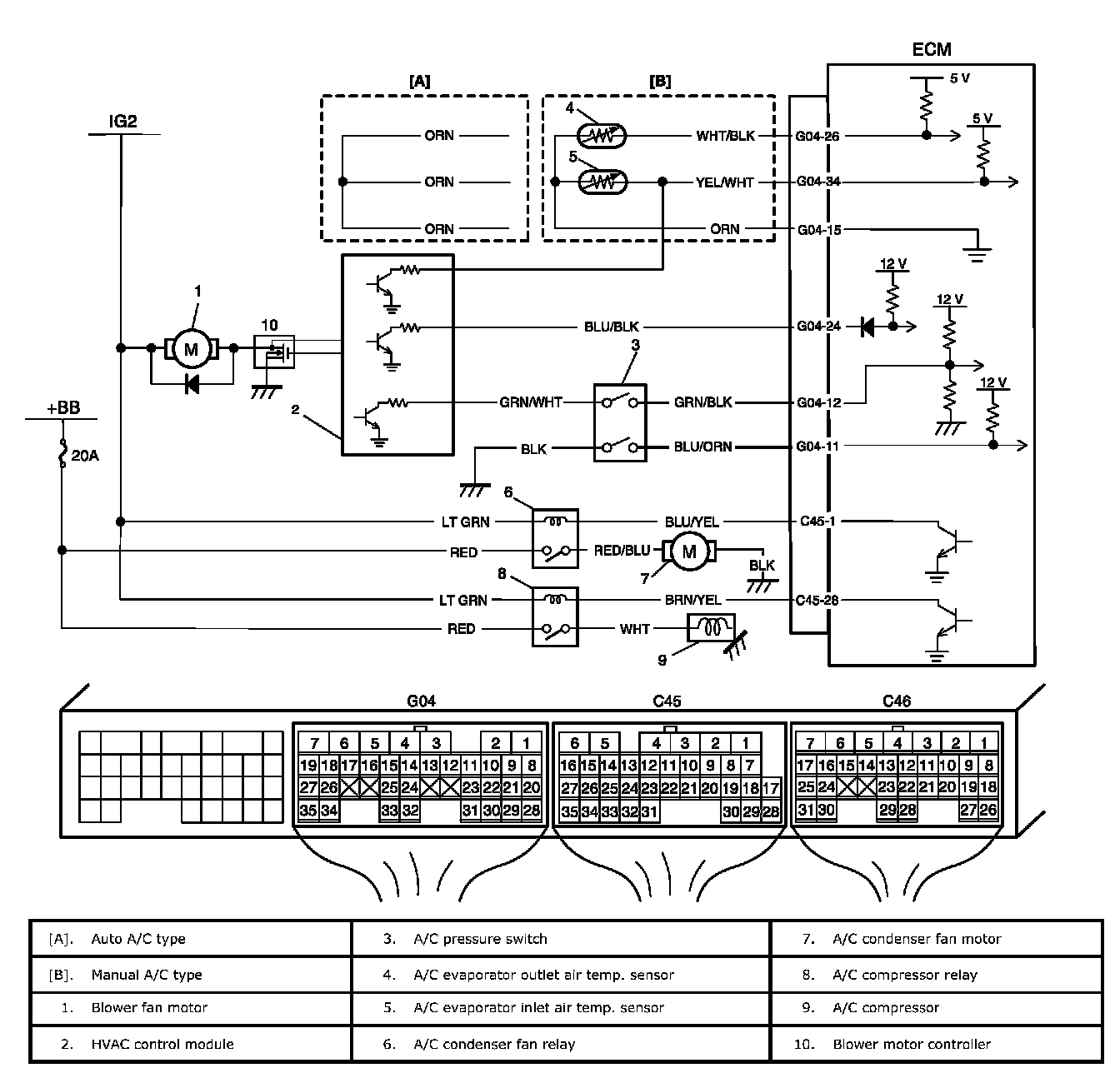

Wiring Diagram:

Wiring Diagram

Step 1:

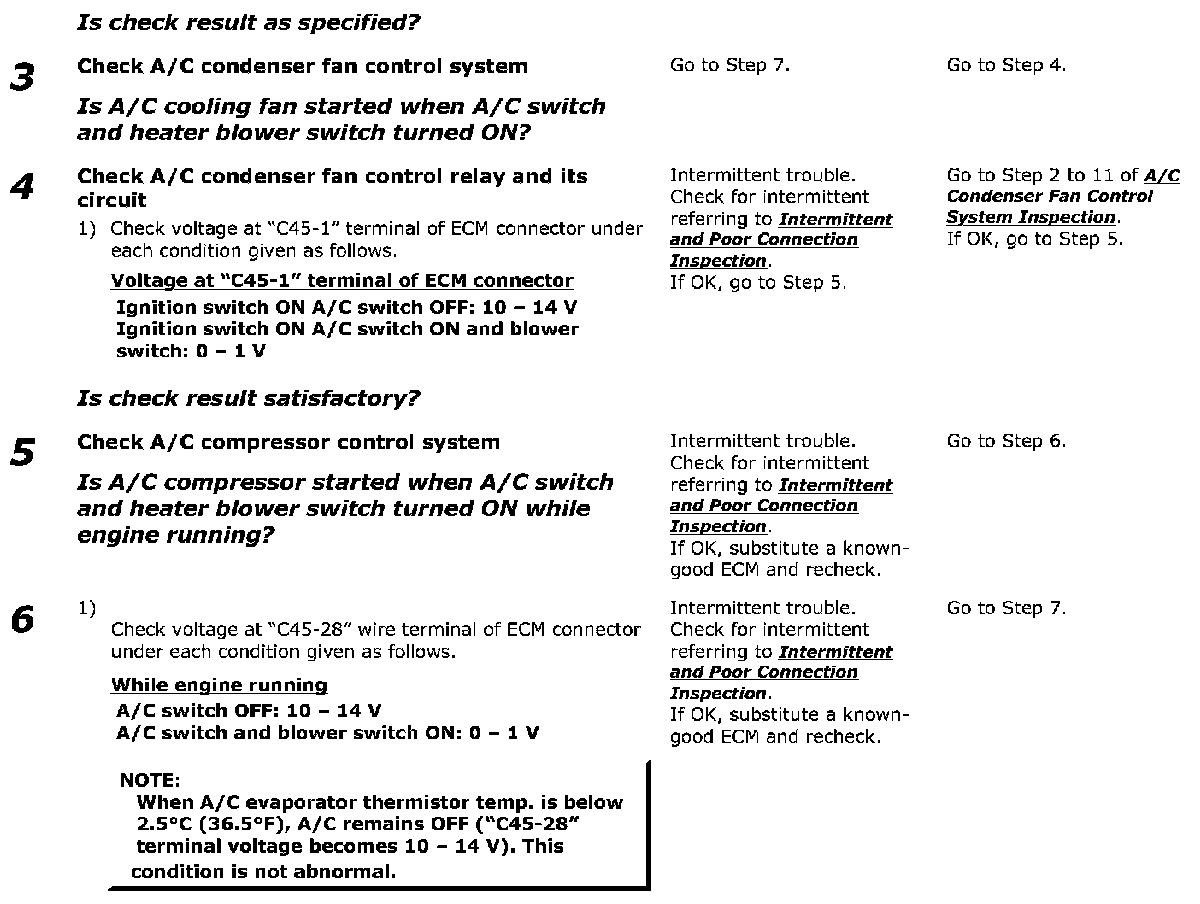

Step 1 (Continued) - 2:

Step 2 (Continued) - 6:

Step 6 (Continued) - 7:

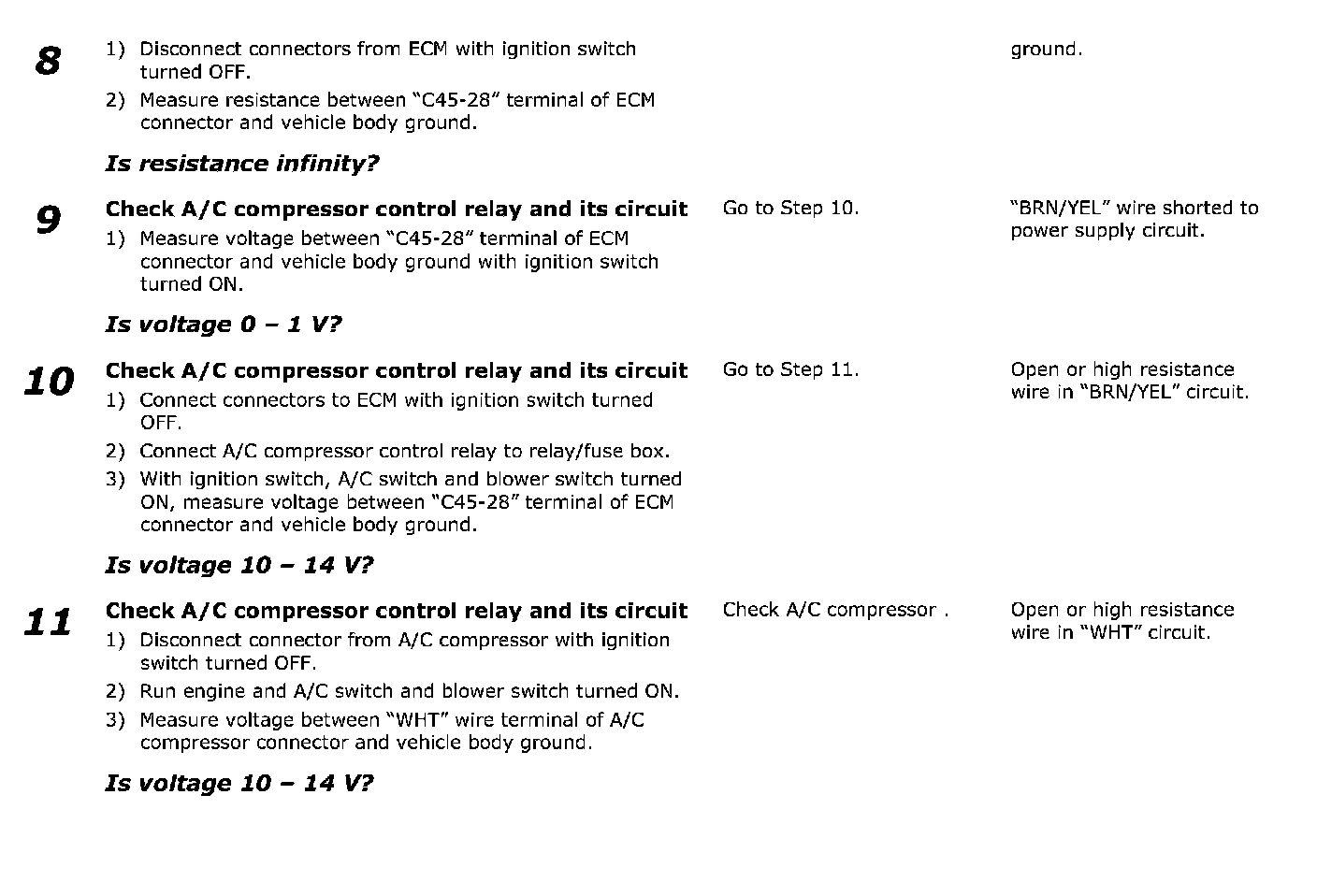

Step 8 - 11:

Troubleshooting
