Wagon

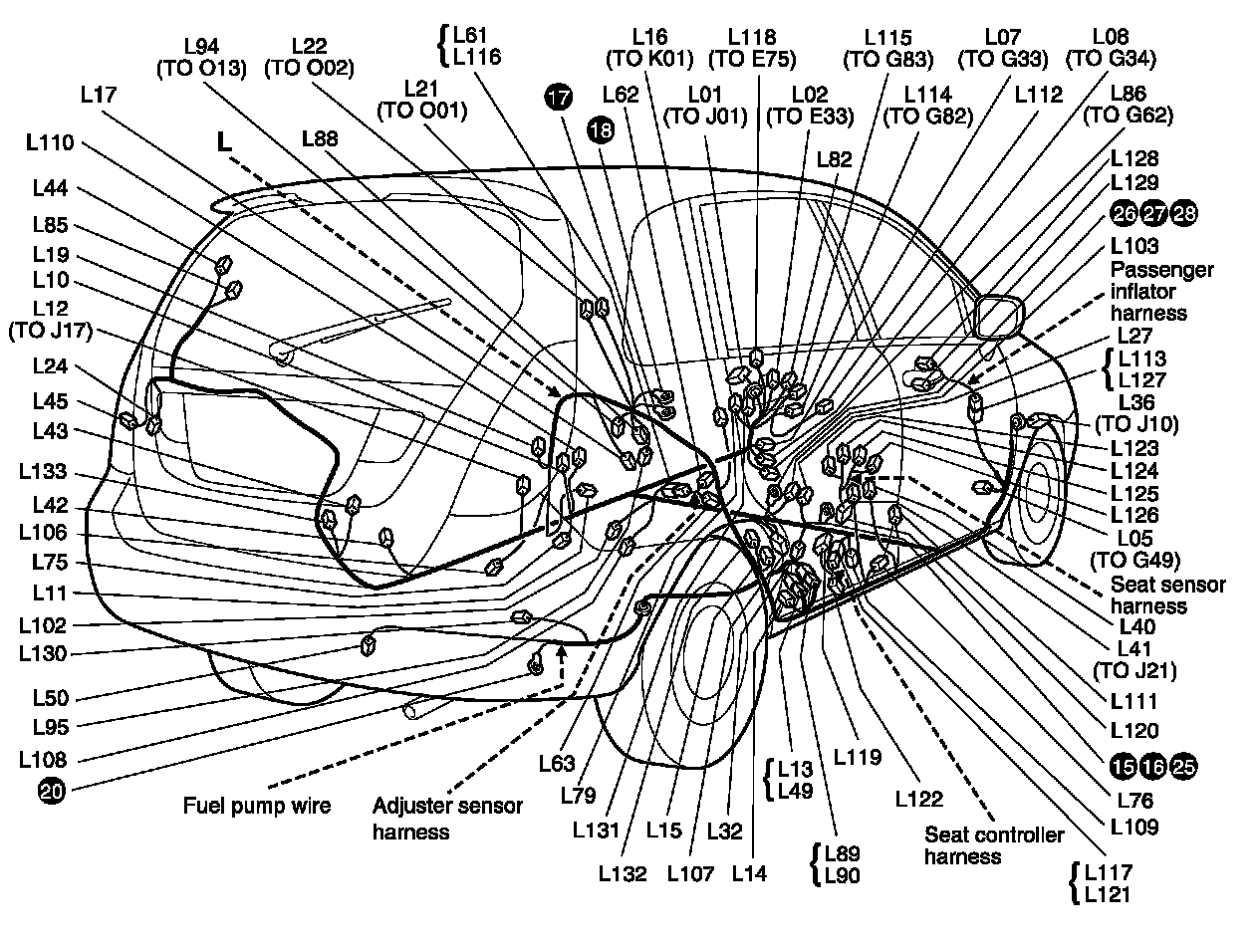

L: Floor harness, fuel pump wire, Adjuster sensor harness, Seat controller harness, Seat sensor harness, Passenger inflator harness (Wagon) View:

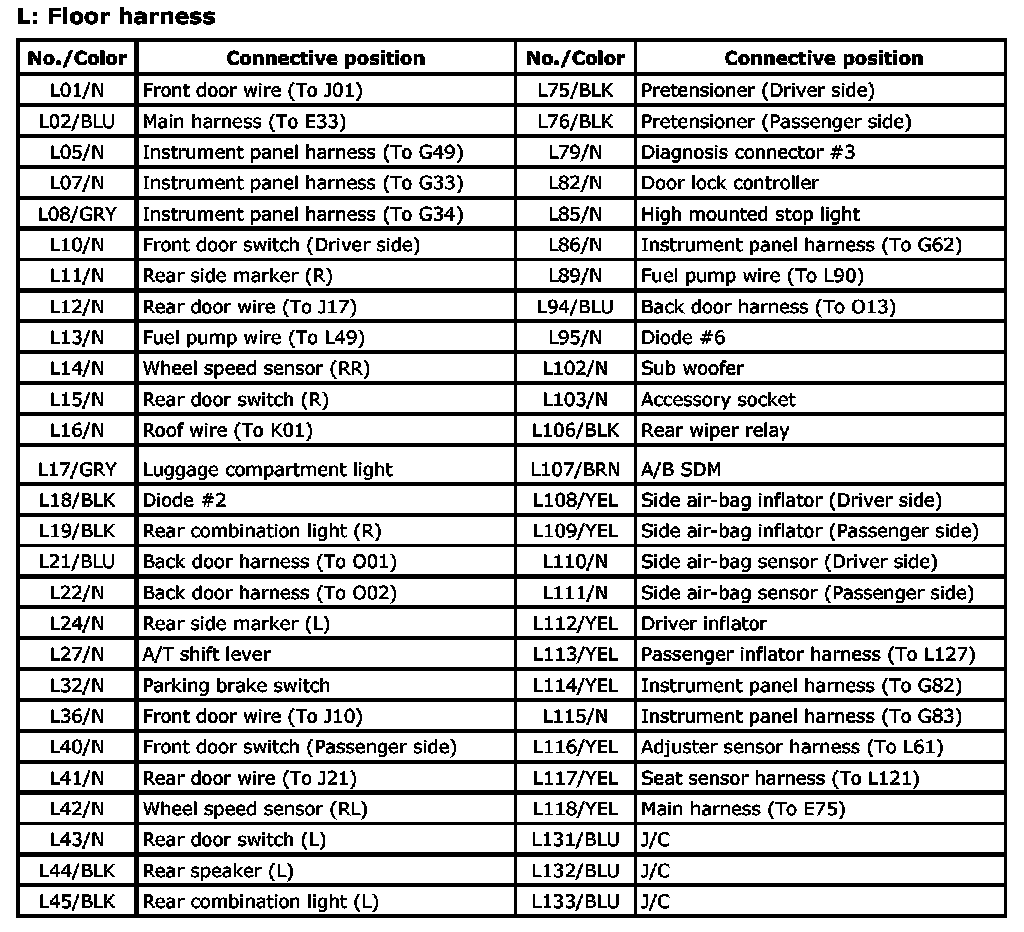

L: Floor Harness Index:



L: Fuel pump wire, Adjuster sensor harness, Seat controller harness, Seat sensor harness, Passenger inflator harness (Wagon) Index:
