Fog/Driving Lamp Bulb: Service and Repair

Fog Light Bulb Replacement

Reference: Front Fog Light Assembly Removal and Installation

WARNING:
- To avoid danger of being burned, don't touch when the bulb is hot.
- Don't touch glass surface of bulb. This will prevent the bulb from possibly becoming cloudy, or failing prematurely.

1. Remove fog light.

Fog Light Bulb Replacement:

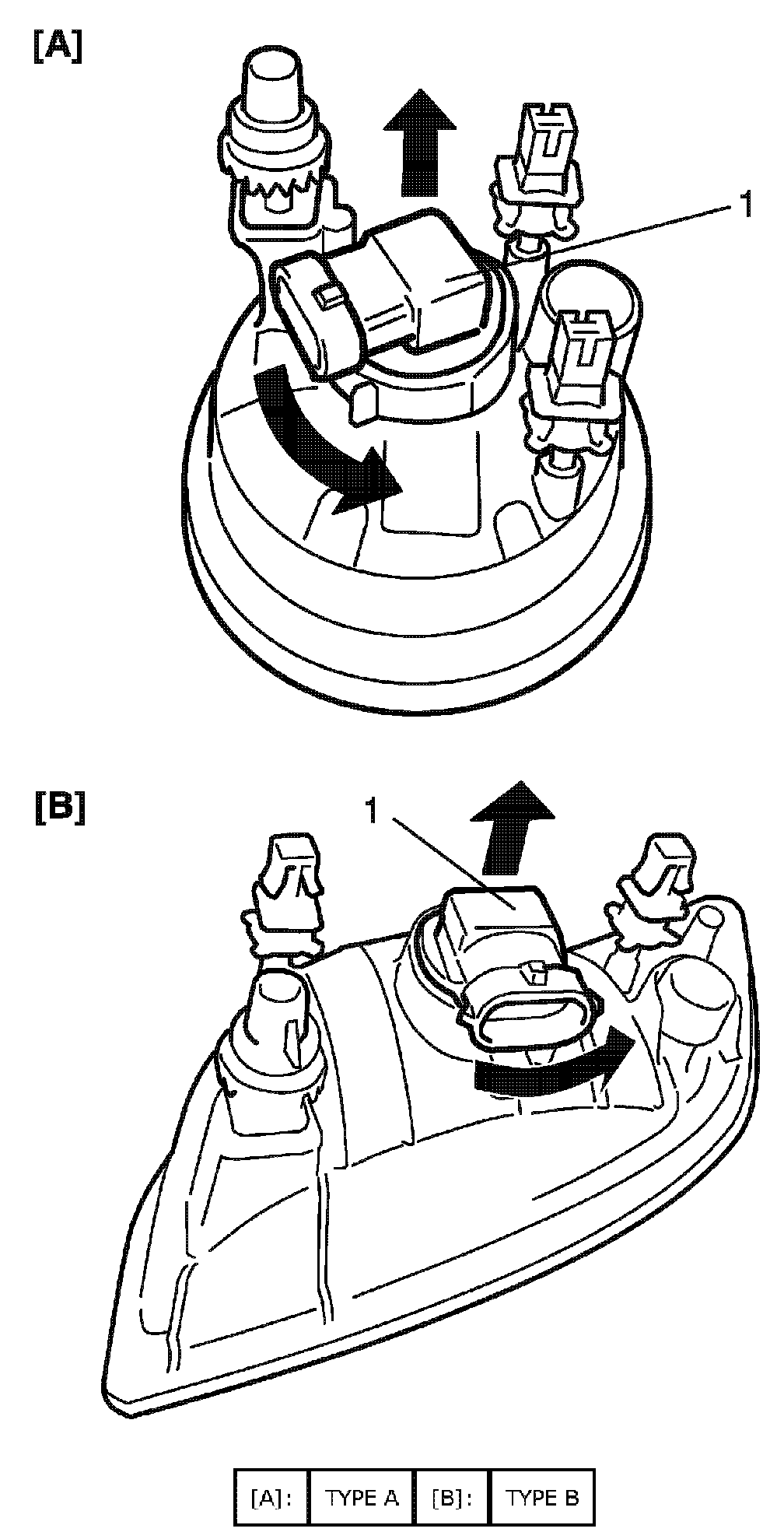

2. Remove fog light bulb (1) as shown.
3. Replace fog light bulb and assemble all removed parts.
