Heater and Ventilation Construction

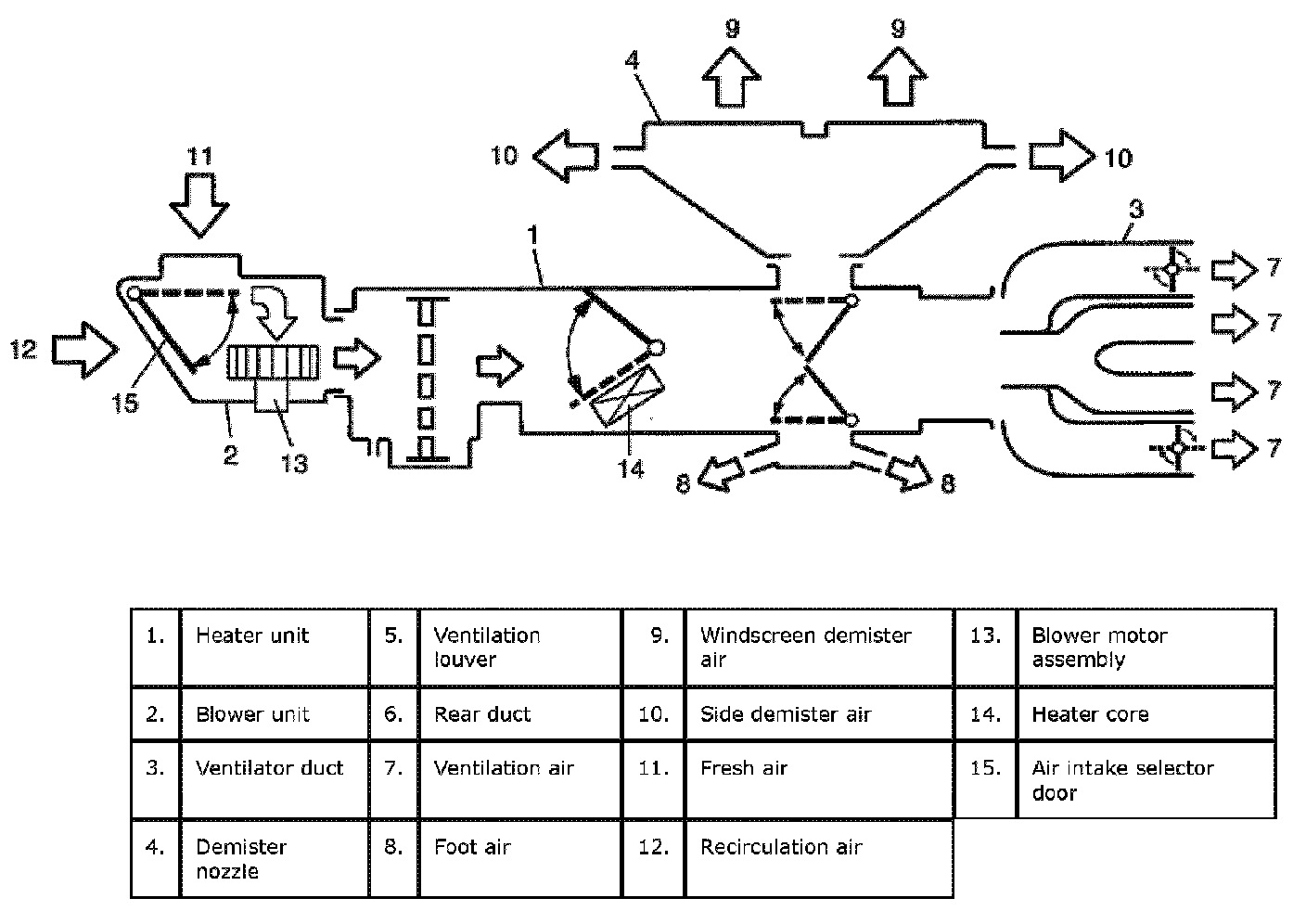

Air Flow Diagram:

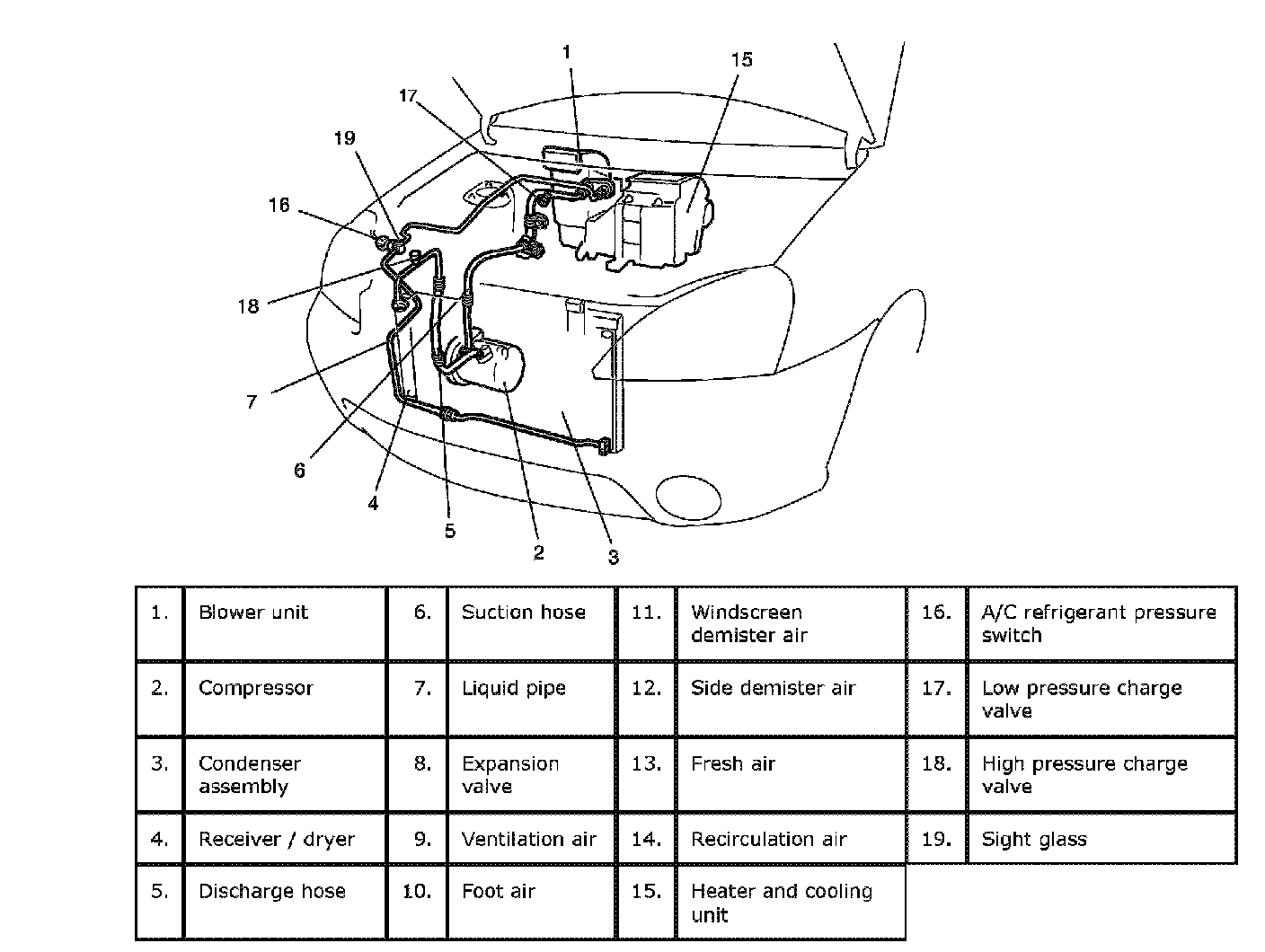

Heater And Ventilation Component Location:



Major Components Of A/C System:
