Blower Motor Controller

Blower Motor Controller Removal and Installation

Removal
1. Disconnect negative (-) cable at battery.
2. Disconnect blower motor controller connector.

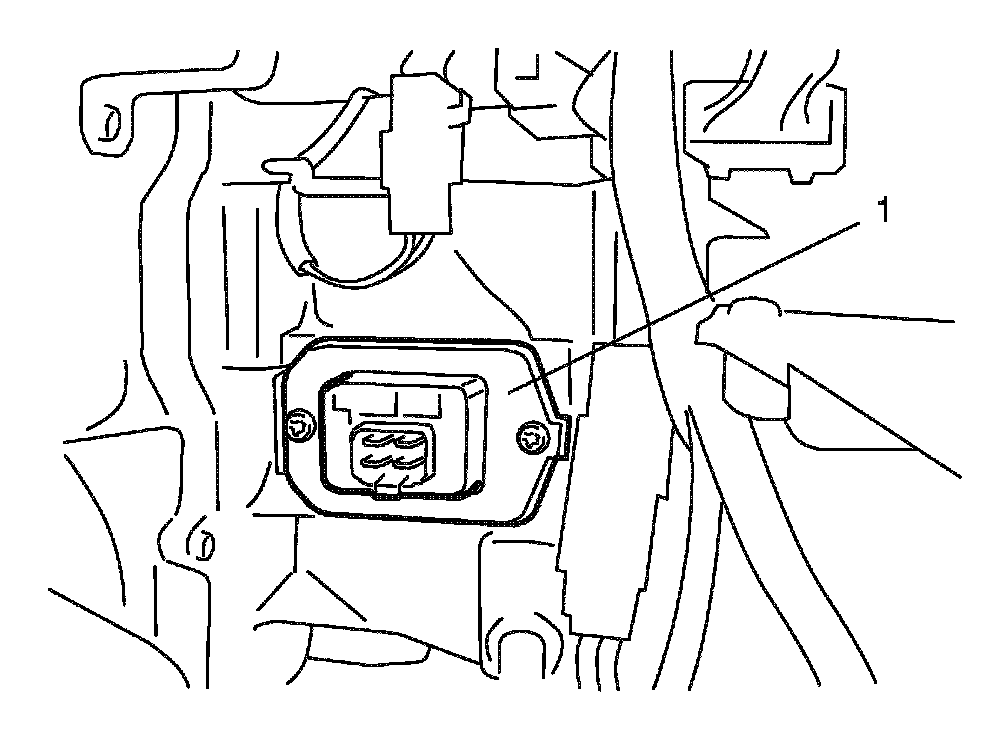

3. Remove blower motor control (1).

Installation
Reference: Blower Motor Controller Inspection

Reverse removal procedure to install blower motor controller.
