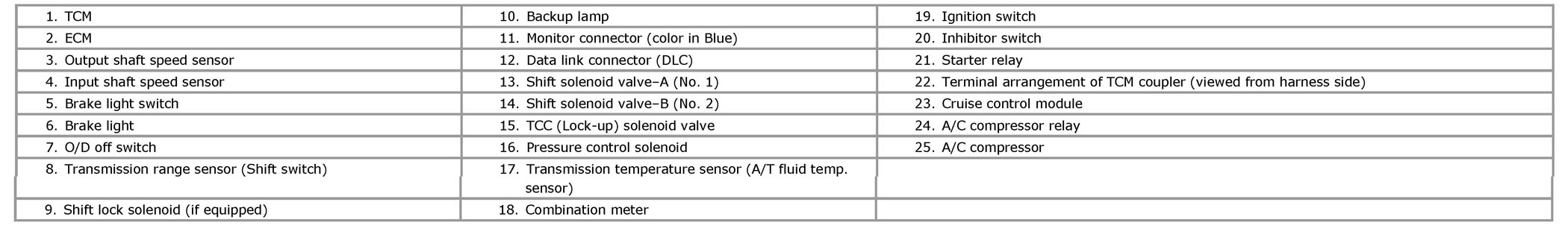

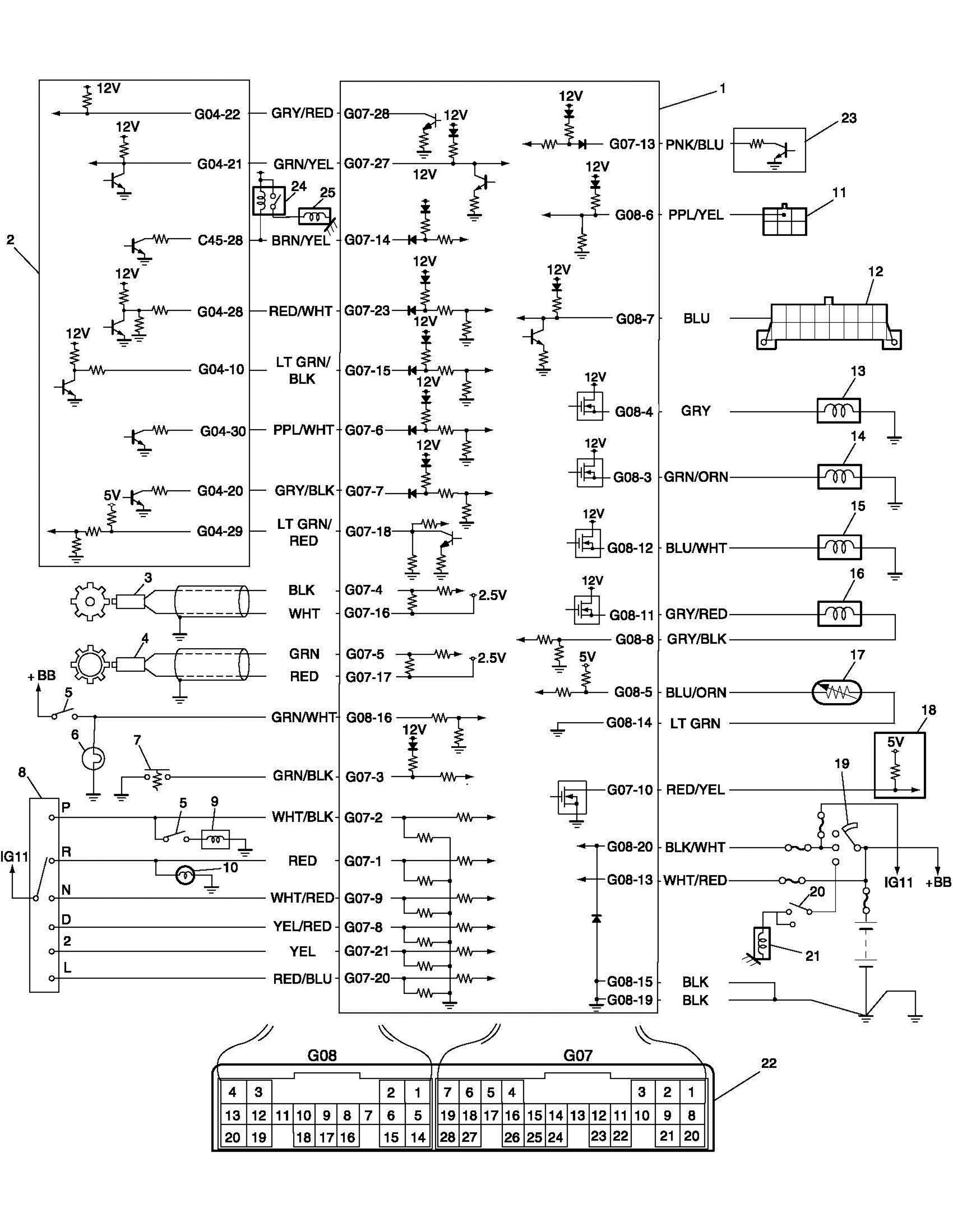

Transmission Control Module (TCM) Wiring Diagram
Transmission Control Module (TCM) Wiring Diagram

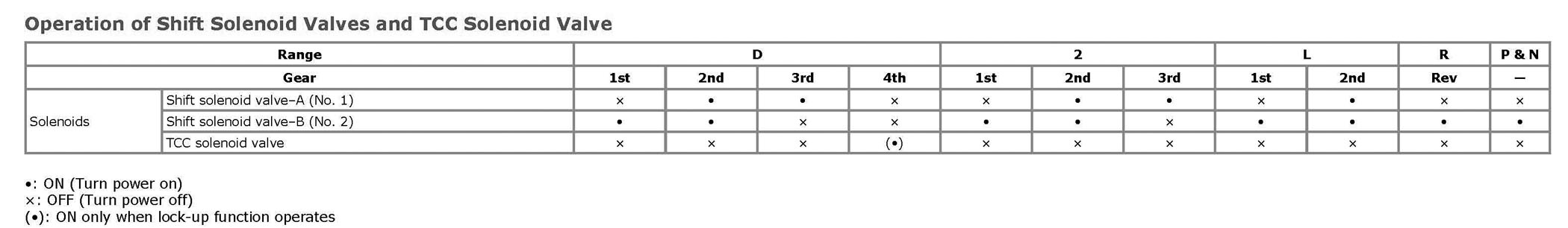

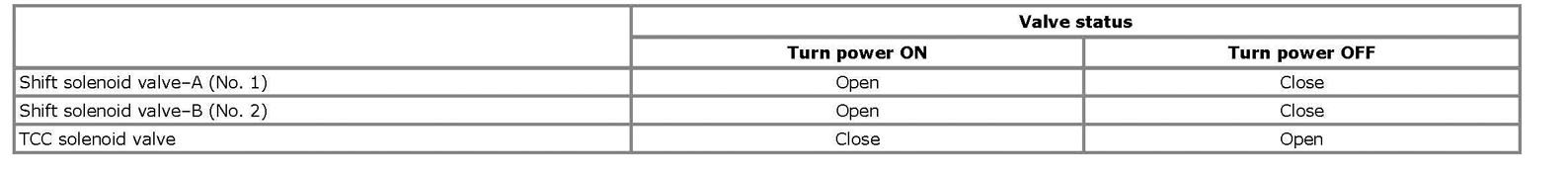

Operation of Shift Solenoid Valves and TCC Solenoid Valve
