Sedan

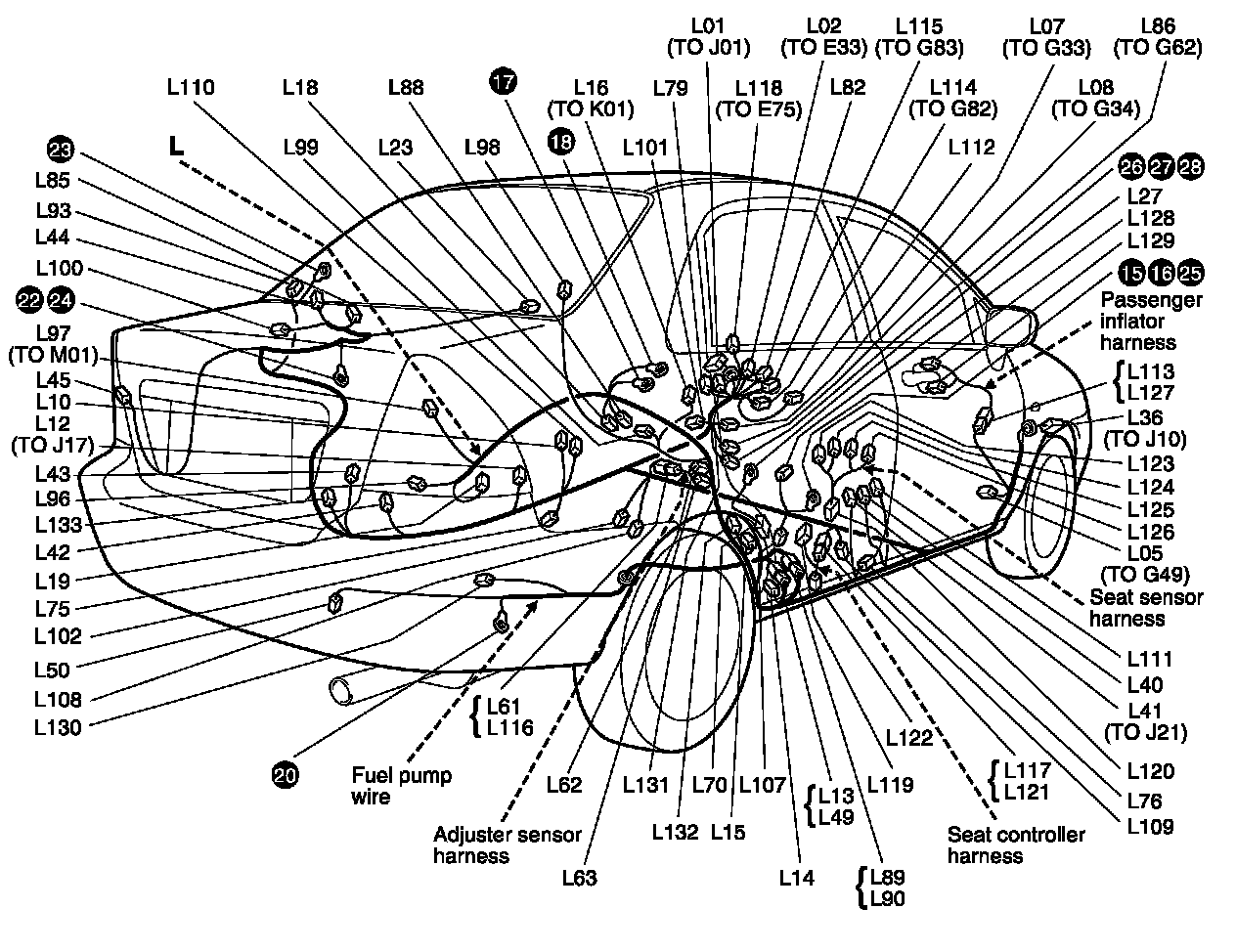

L: Floor harness/fuel pump wire/Adjuster sensor harness/Seat controller harness/Seat sensor harness/Passenger inflator harness (Sedan) View:

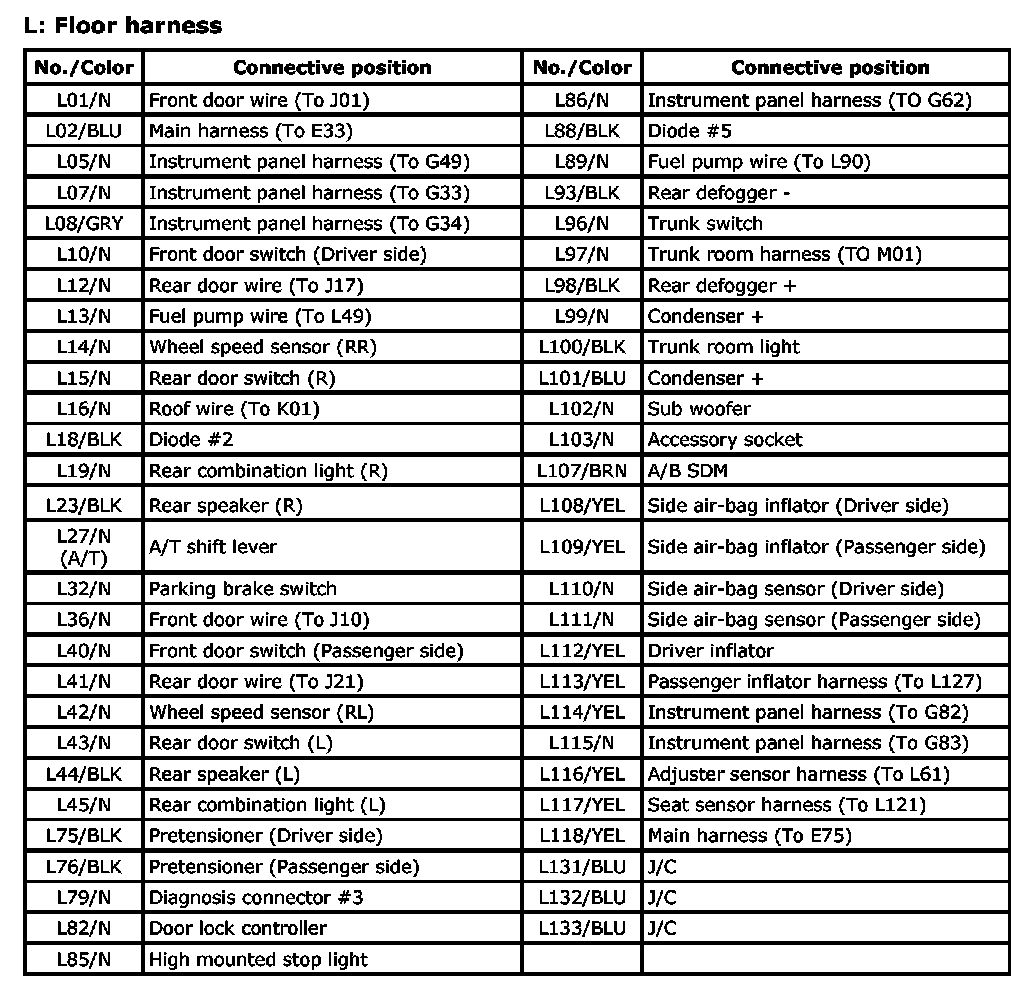

L: Floor harness Index:



L:Fuel pump wire/Adjuster sensor harness/Seat controller harness/Seat sensor harness/Passenger inflator harness (Sedan) Index:
