Power Door Lock Switch: Testing and Inspection

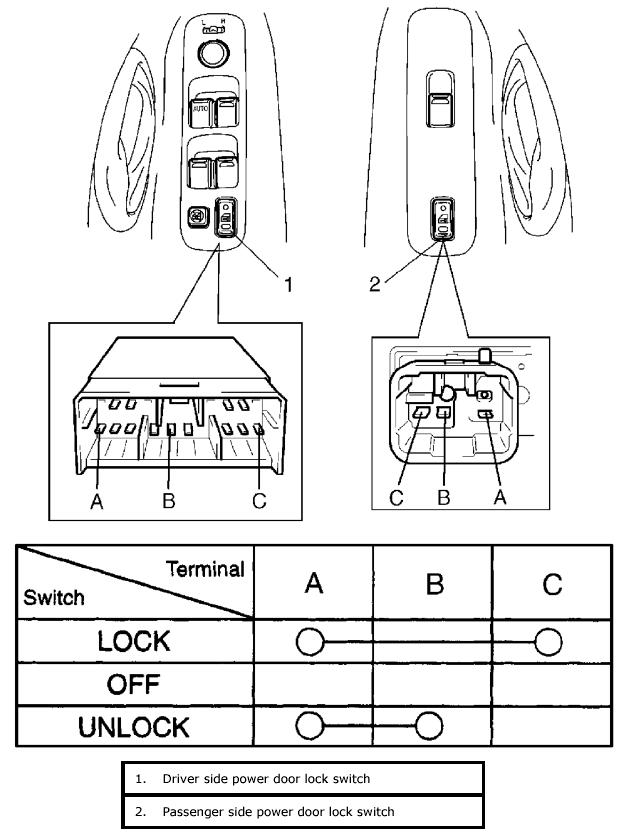

Power Door Lock Switch (If Equipped) Inspection

Check for continuity between terminals at each switch position. If check result is not as specified, replace switch.
