Rear Door: Service and Repair

Rear Door Assembly Removal and Installation

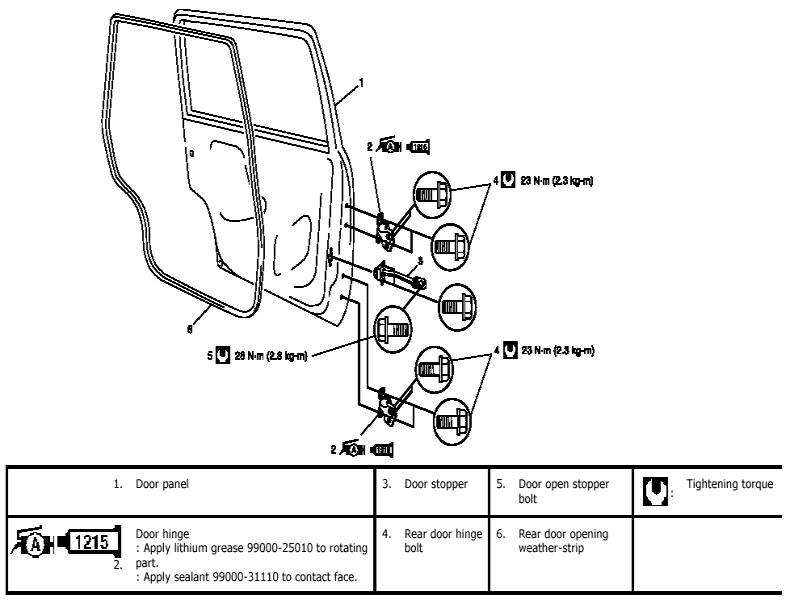

Rear Door Assembly Components:






Refer to Front Door Assembly Removal and Installation.
^ Refer to the figure in Rear Door Assembly Components for grease and sealant.
