P2400

DTC P2400: Evaporative Emission System Leak Detection Pump Control Circuit / Open

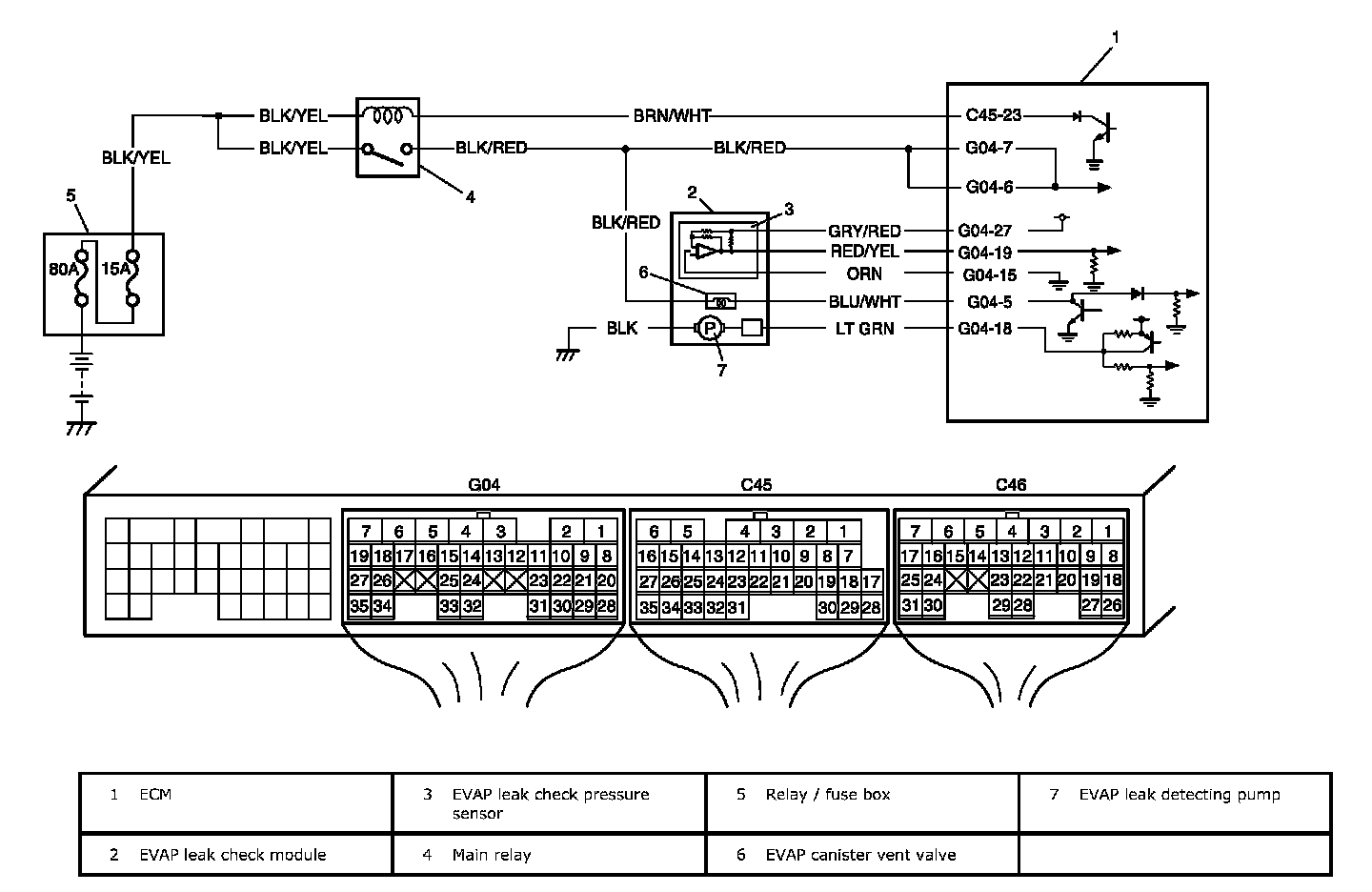

Wiring Diagram:




Wiring Diagram




DTC Detecting Condition and Trouble Area

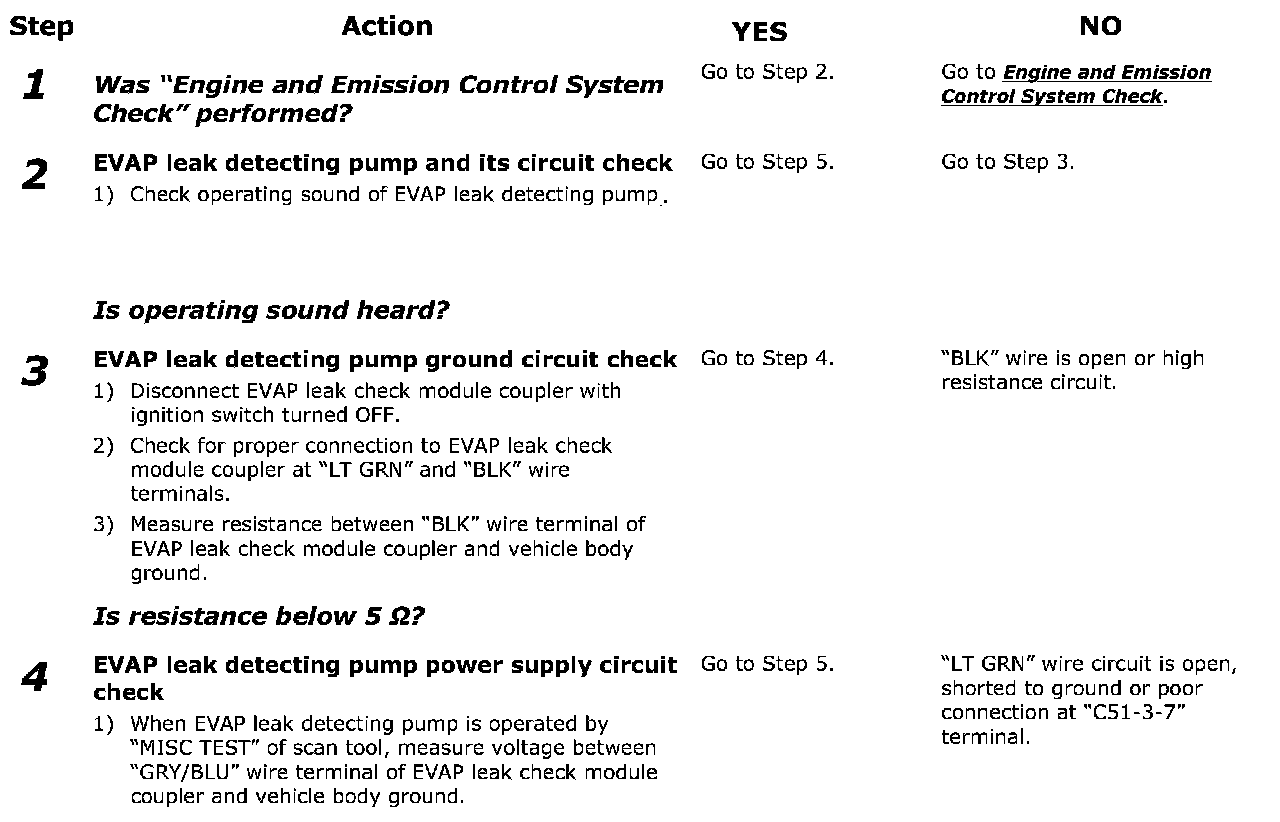

Step 1 - 4:




Step 4 (Continued) - 5:




DTC Troubleshooting
