P1425

DTC P1425: Evaporative Emission System Leak Detecting Pump Flow High/Low

System Diagram:




System Diagram

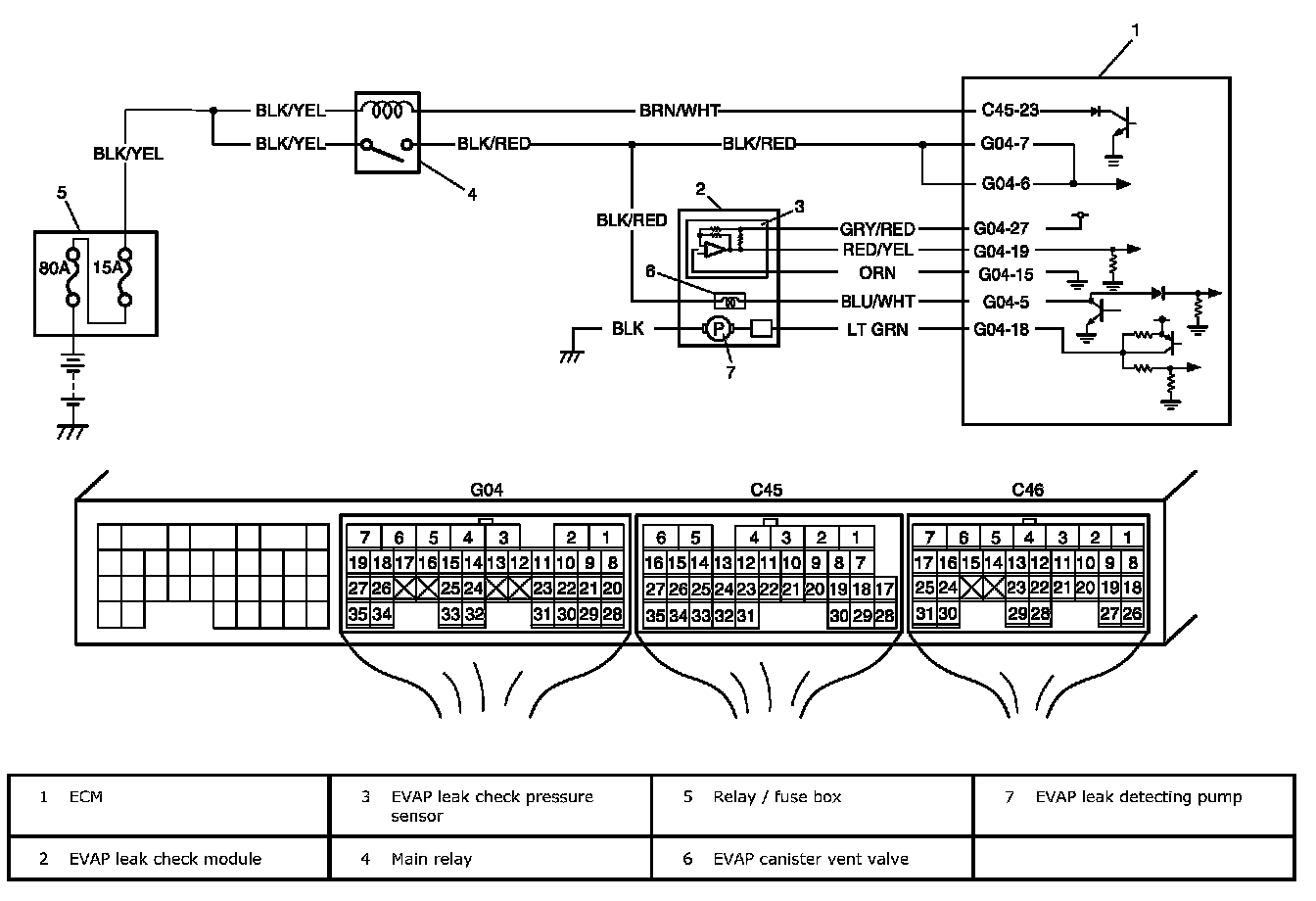

Wiring Diagram:




Wiring Diagram




DTC Detecting Condition and Trouble Area

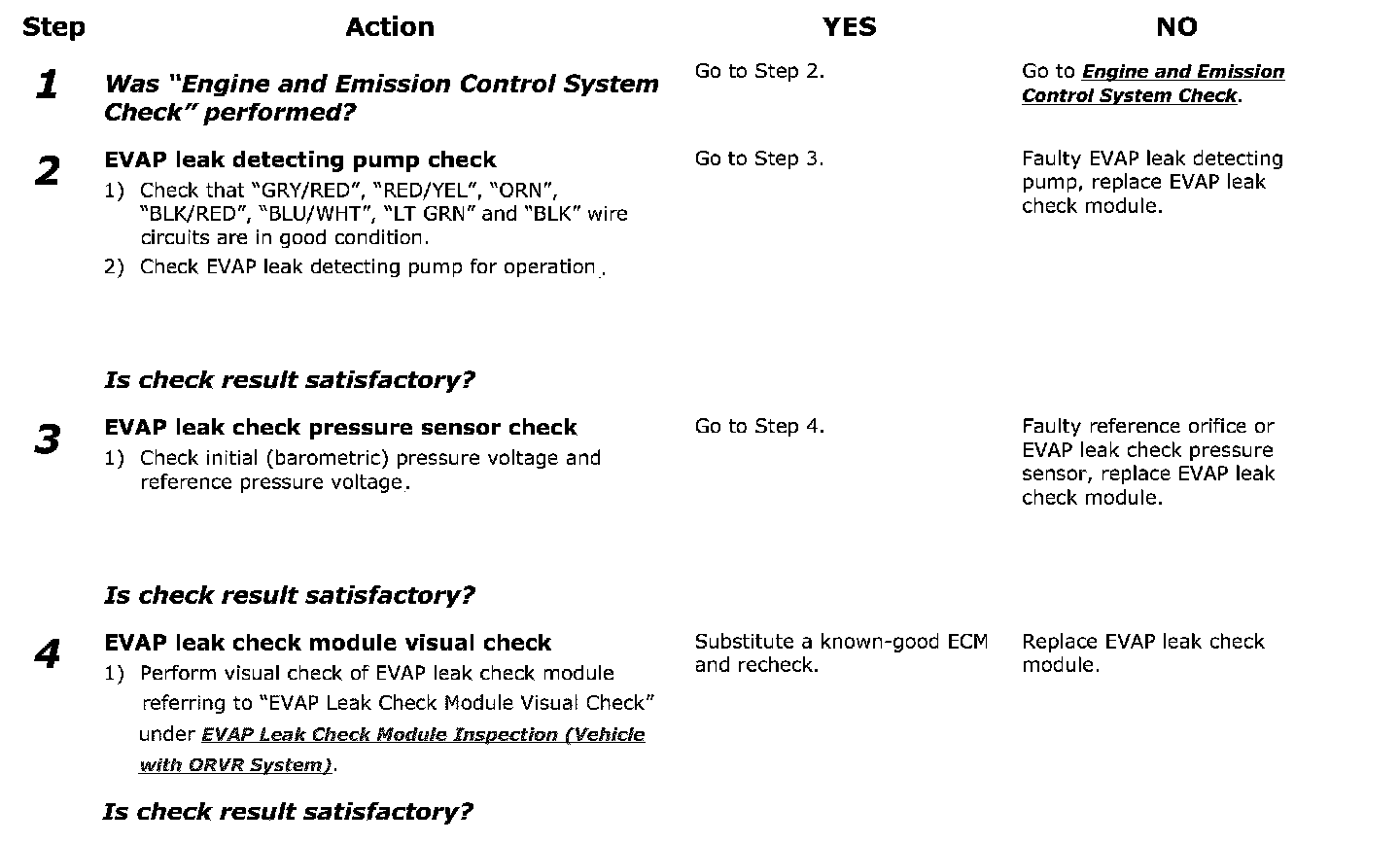

Step 1 - 4:




DTC Troubleshooting
