Transmission Control System

DTC P0727 (No. 35): Engine Speed Input Circuit No Signal

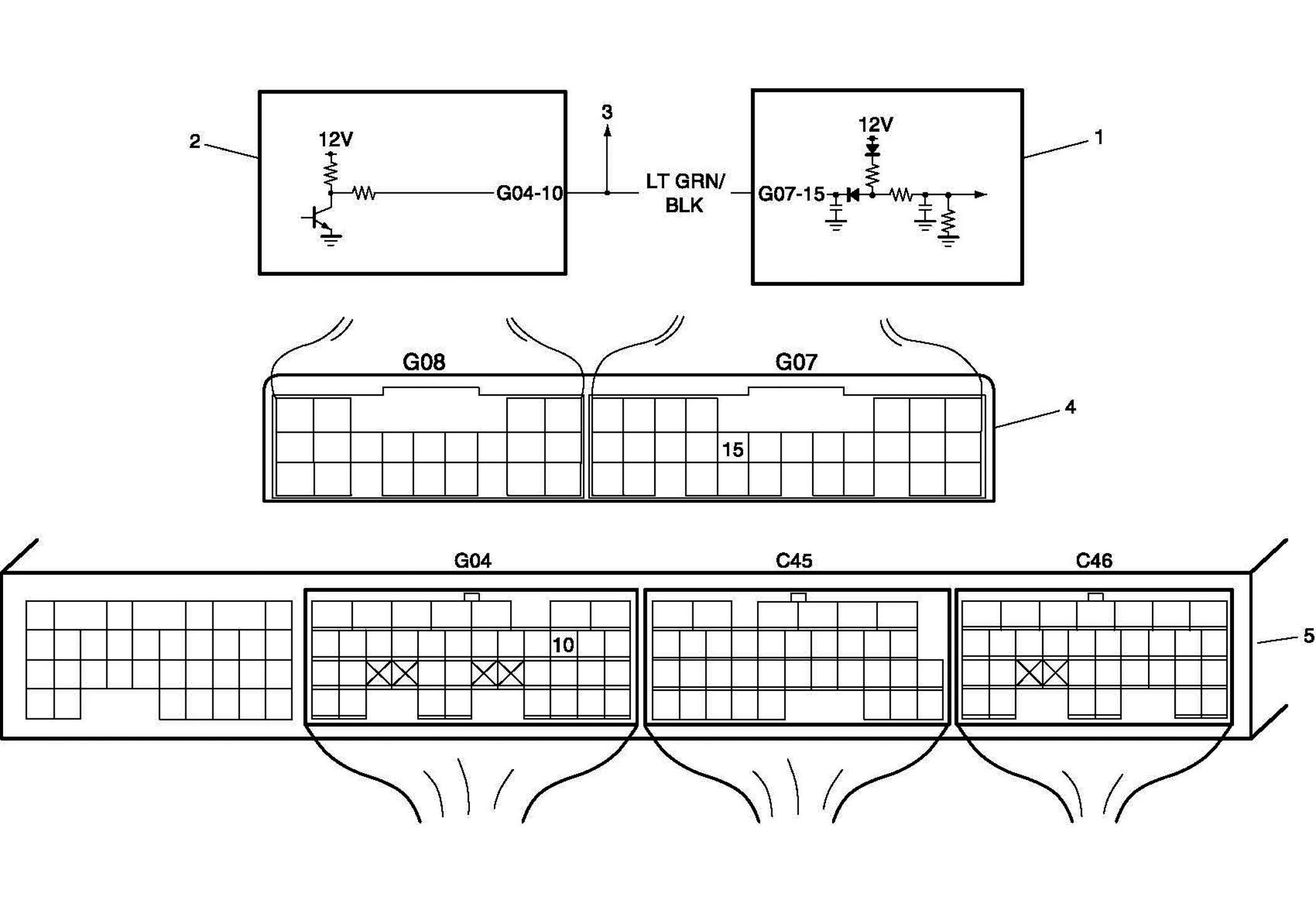

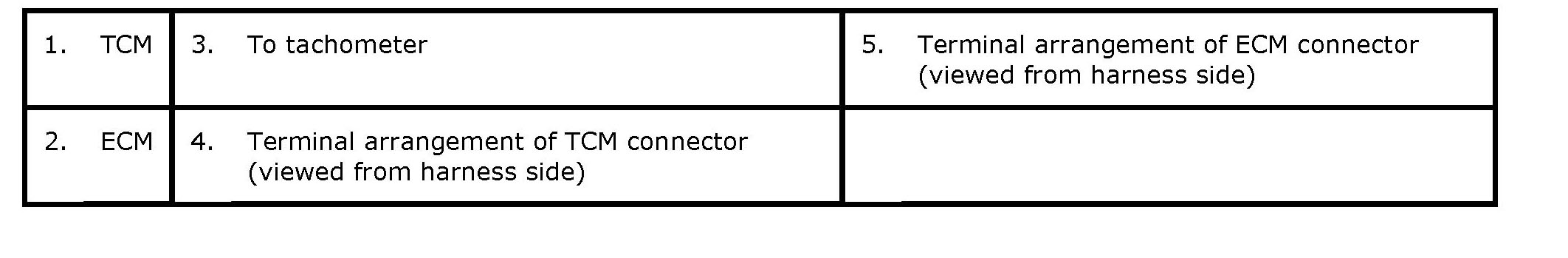

Wiring Diagram

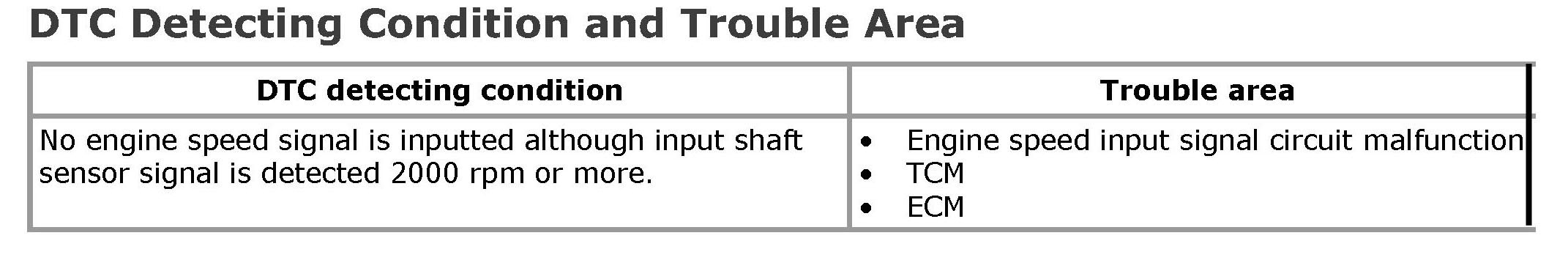

DTC Detecting Condition and Trouble Area

DTC Detecting Condition and Trouble Area:

DTC Confirmation Procedure
1. Connect scan tool to DLC with ignition switch OFF.
2. Clear DTCs in TCM and ECM memories by using scan tool.
3. Start engine and keep engine running at 2000 rpm or more for 10 seconds.
4. Check DTC, pending DTC and freeze frame data.

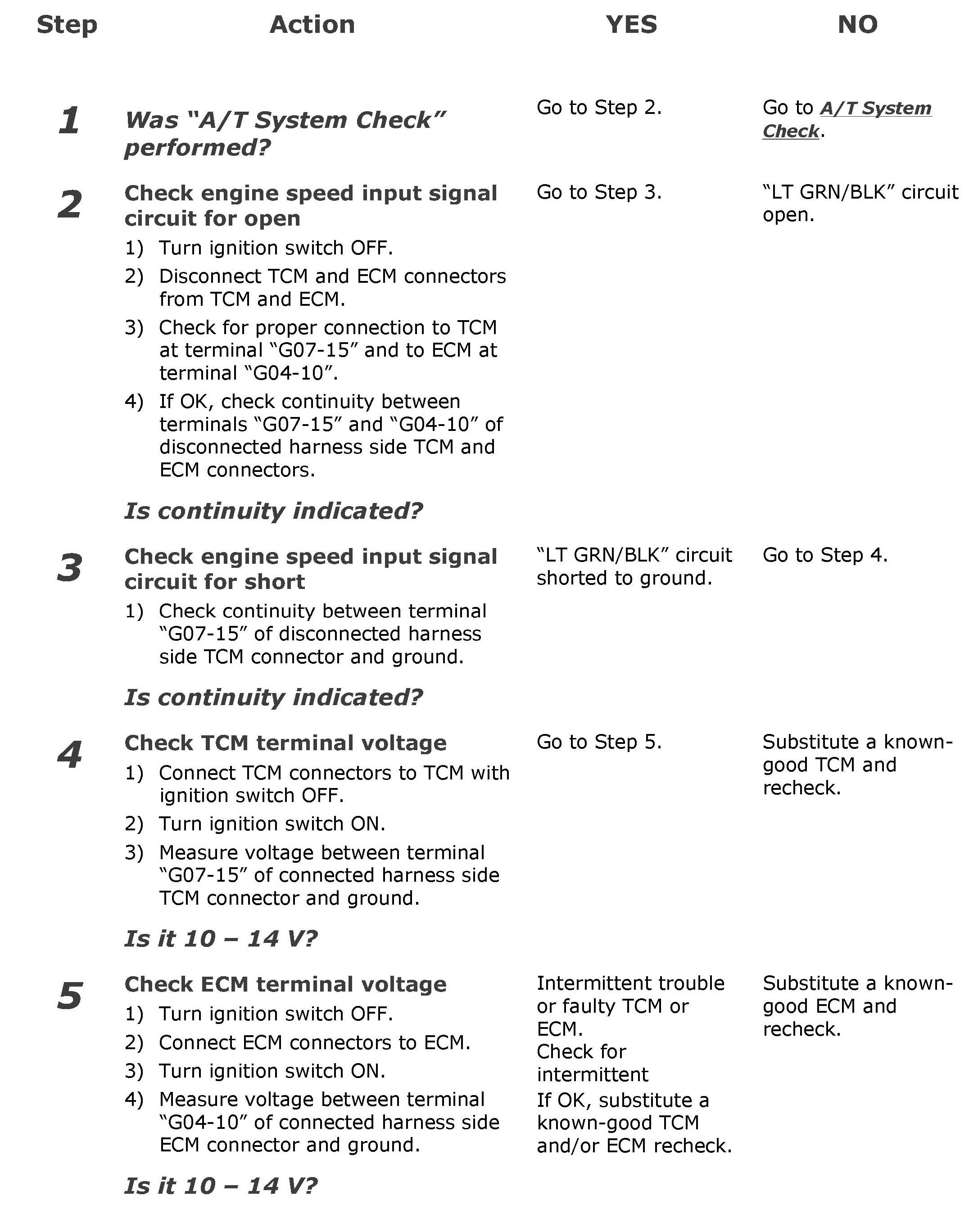

DTC Troubleshooting

Steps 1-5:
