B1513

DTC B1513 (No.13): Temperature Control Actuator and/or its Circuit malfunction

Wiring Diagram:

Wiring Diagram

DTC Detecting Condition and Trouble Area:

DTC Detecting Condition and Trouble Area

DTC Troubleshooting

NOTE: First, perform Temperature control actuator motor circuit inspection. After that, if DTC 1513 is still detected, perform Temperature control actuator position sensor circuit inspection.

Step 1 - 3:

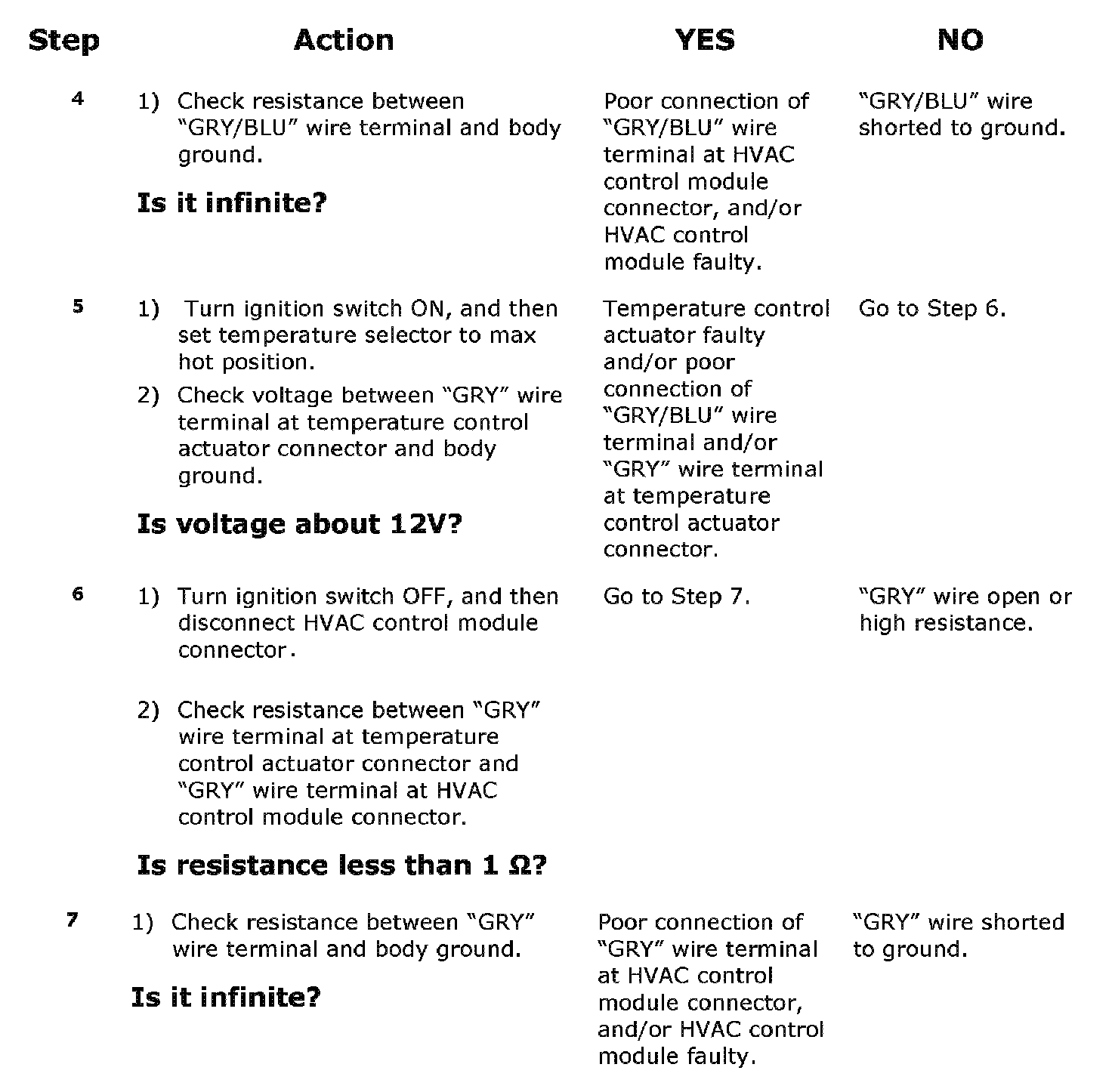

Step 4 - 7:

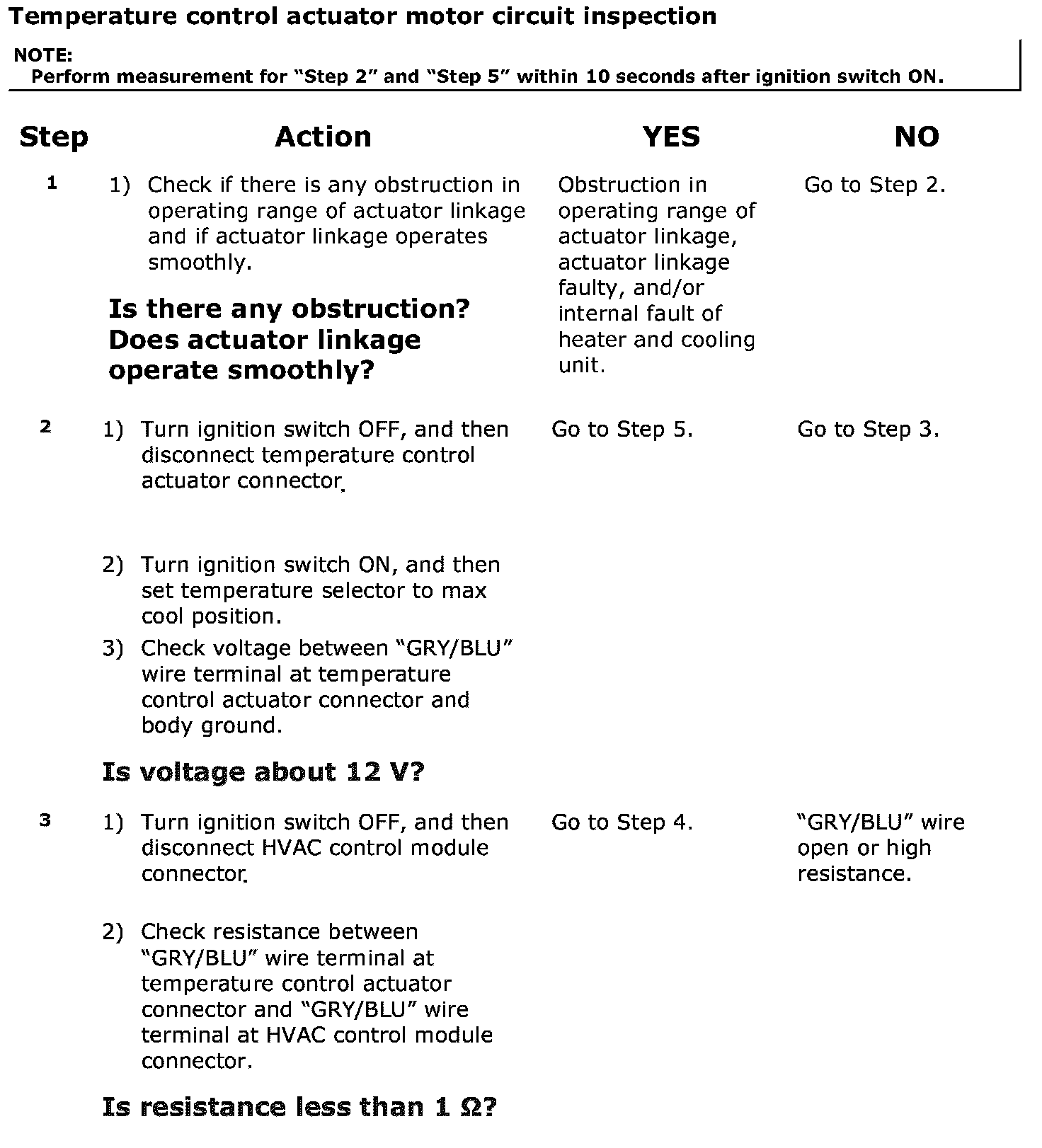

Temperature control actuator motor circuit inspection

Step 1 - 4:

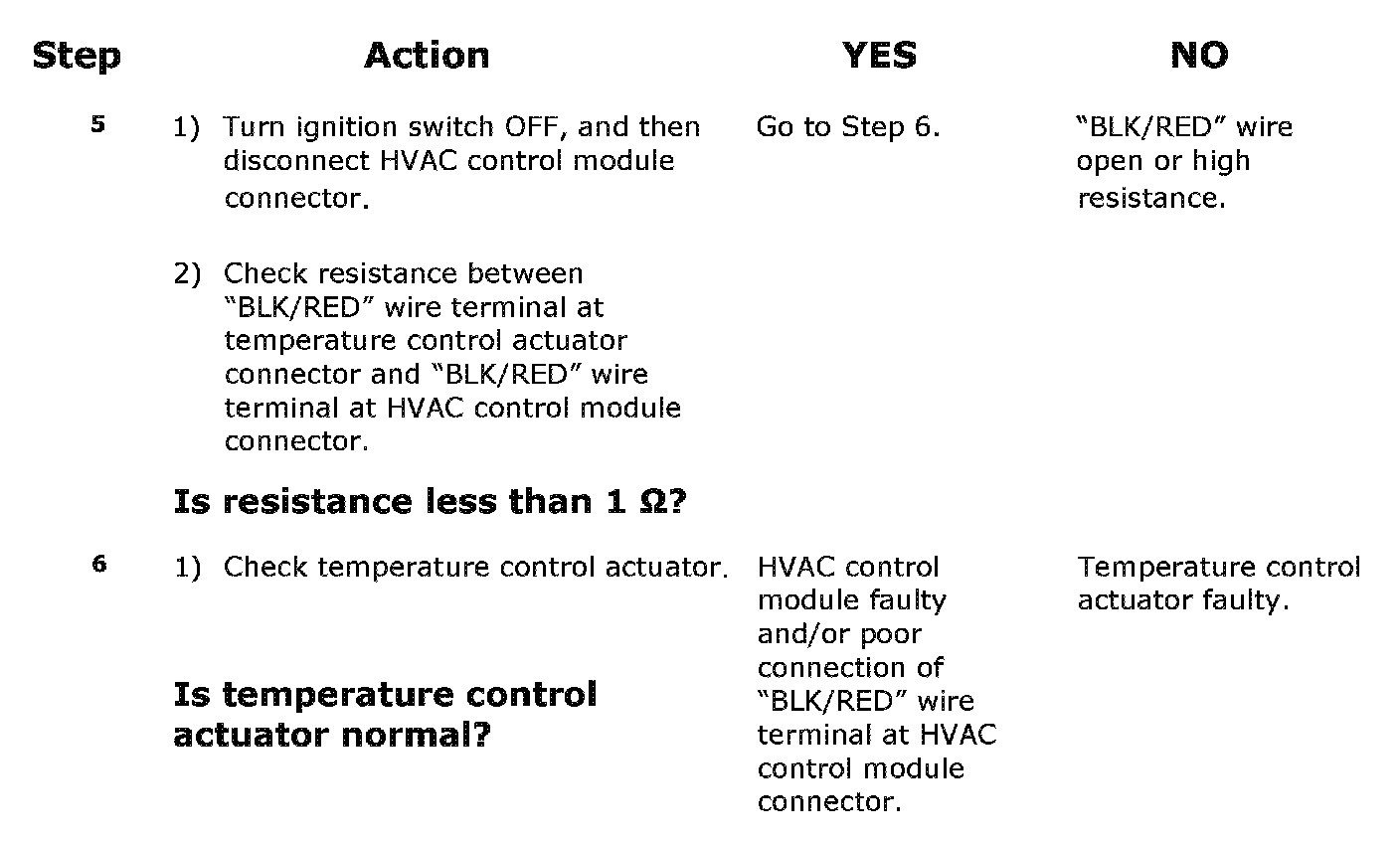

Step 5 - 6:

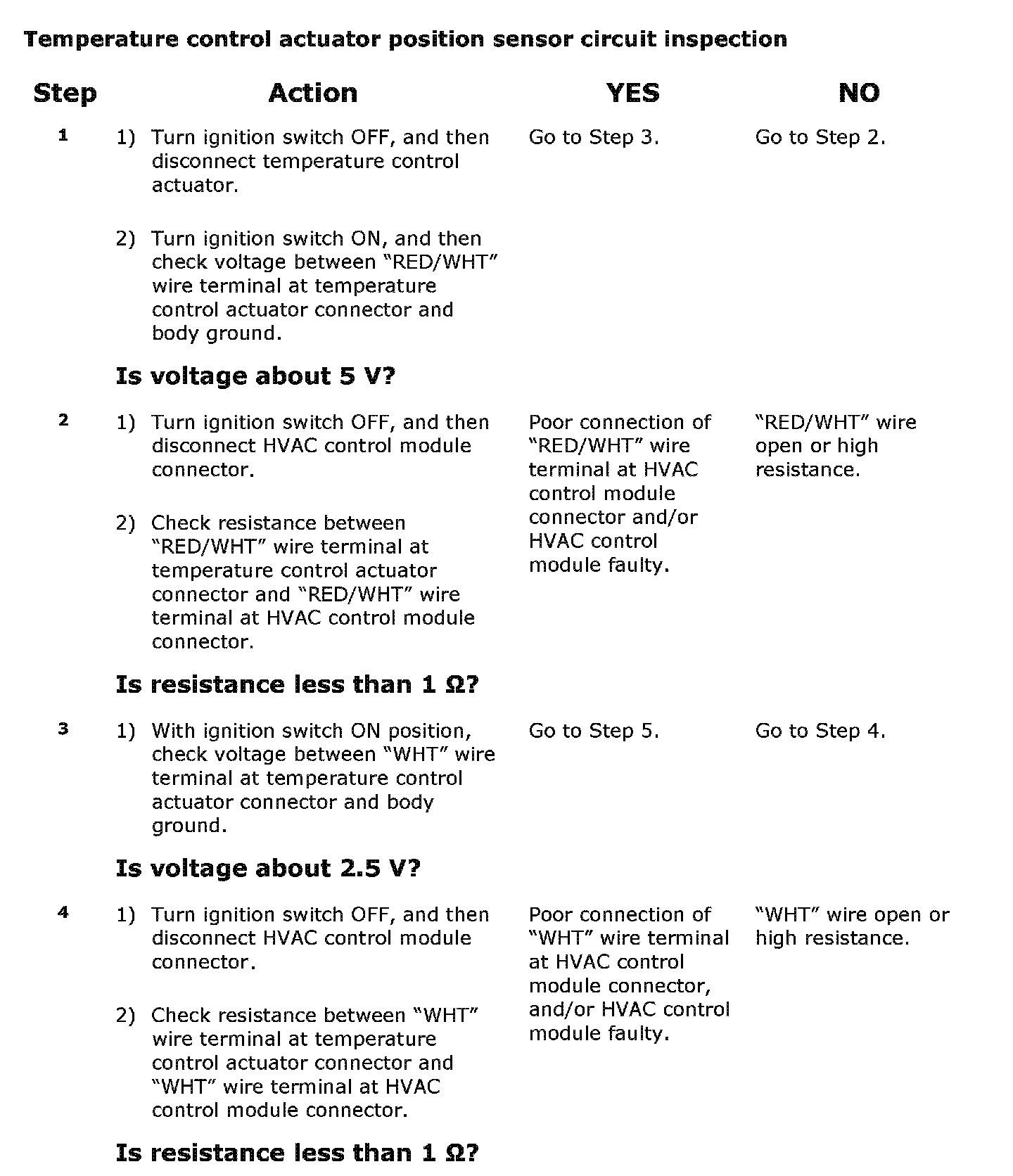

Temperature control actuator position sensor circuit inspection
