B1207

DTC B1207: Front Left (Weight) Sensor Crush Detected

CAUTION:
- Be sure to perform Air Bag Diagnostic System Check:Advanced Air Bag before starting diagnosis according to flow. Air Bag Diagnostic System Check
- When measurement of resistance or voltage is required in this flow, use a tester along with a correct terminal adapter from special tool (Connector test adapter kit).
- When a check for proper connection is required, refer to Inspection of Intermittent and Poor Connections:Advanced Air Bag. Inspection of Intermittent and Poor Connections
- If there is open circuit in air bag wire harness, connector or terminal is found damaged, replace the wire harness, connector and terminal as an assembly.

DTC Will Set when
When a stress exceeding the specified value is inputted to the FL weight sensor.

Flow Test Description
STEP 1: Check for DTC.
STEP 2: Check for FL weight sensor.

Step 1 - 2:

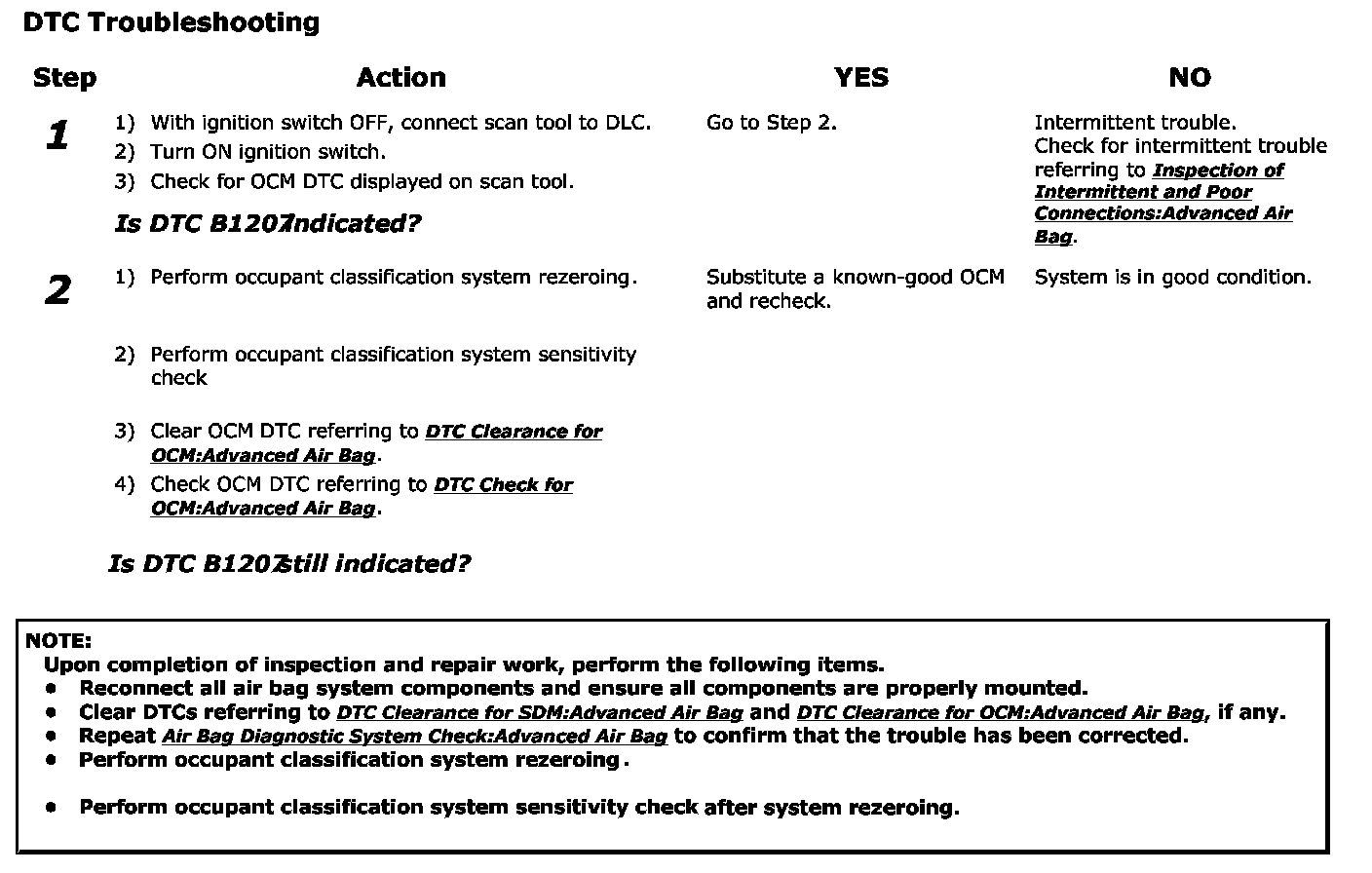

DTC Troubleshooting
