Front Fog Light Assembly Removal and Installation: Removal

  1. Disconnect negative (-) cable at battery.
  2. Remove front bumper. Refer to FRONT BUMPER AND REAR BUMPER COMPONENTS .
  3. Disconnect couplers (1) from fog light (2).
  4. Detach fog light (2) pushing clips (3) to arrow direction.

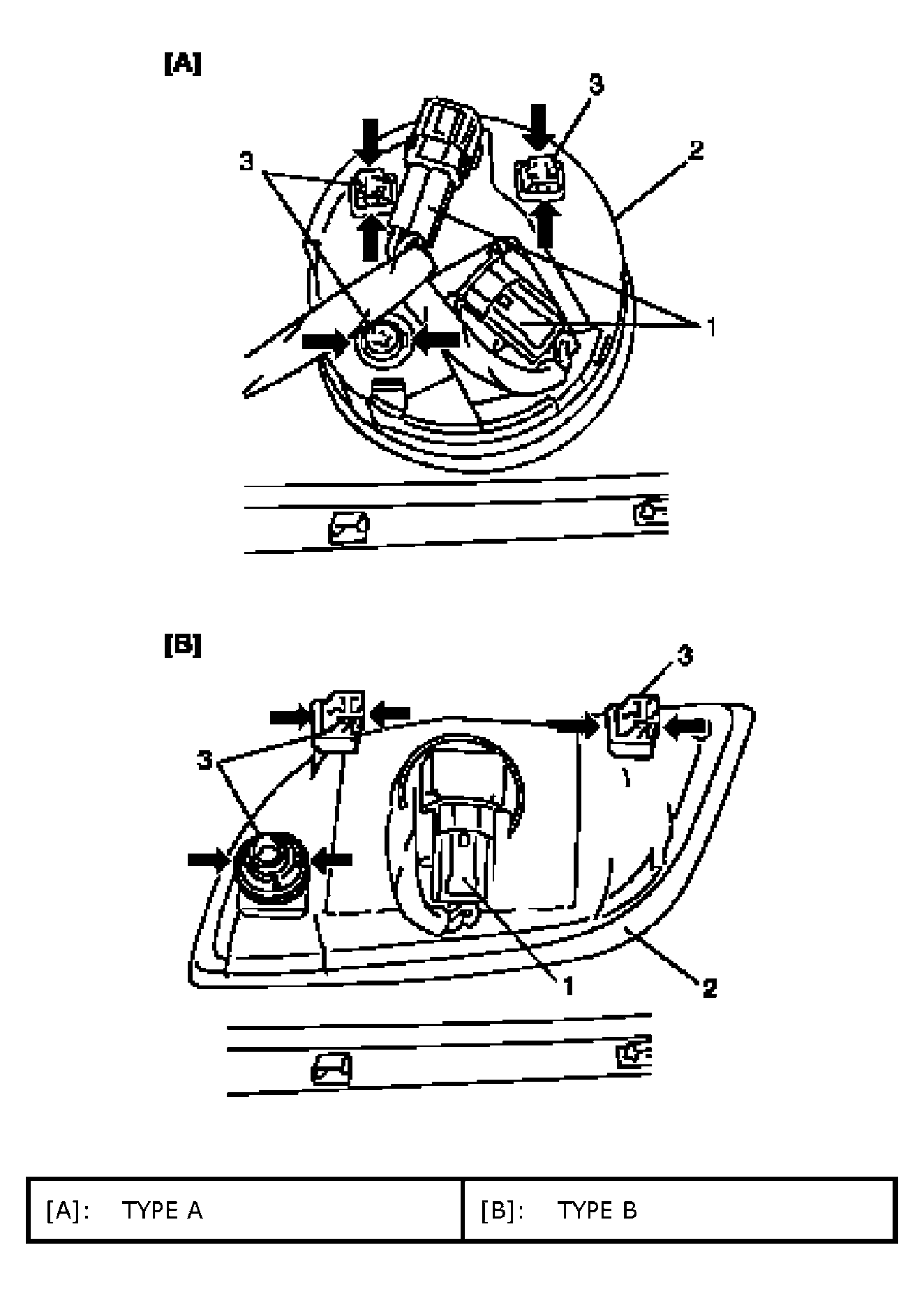

    Fig 1: Identifying Fog Light (2) Pushing Clips (3) Disconnecting Direction
    G04591570Courtesy of SUZUKI OF AMERICA CORP.
