Ignition Coil Assembly (Igniter and Ignition Coil) Removal and Installation: Removal

  1. Remove engine cover from cylinder head cover referring to ENGINE COVER REMOVAL AND INSTALLATION .
  2. Disconnect ignition coil coupler.
  3. Remove ignition coil bolt (1), and then pull out ignition coil (2).

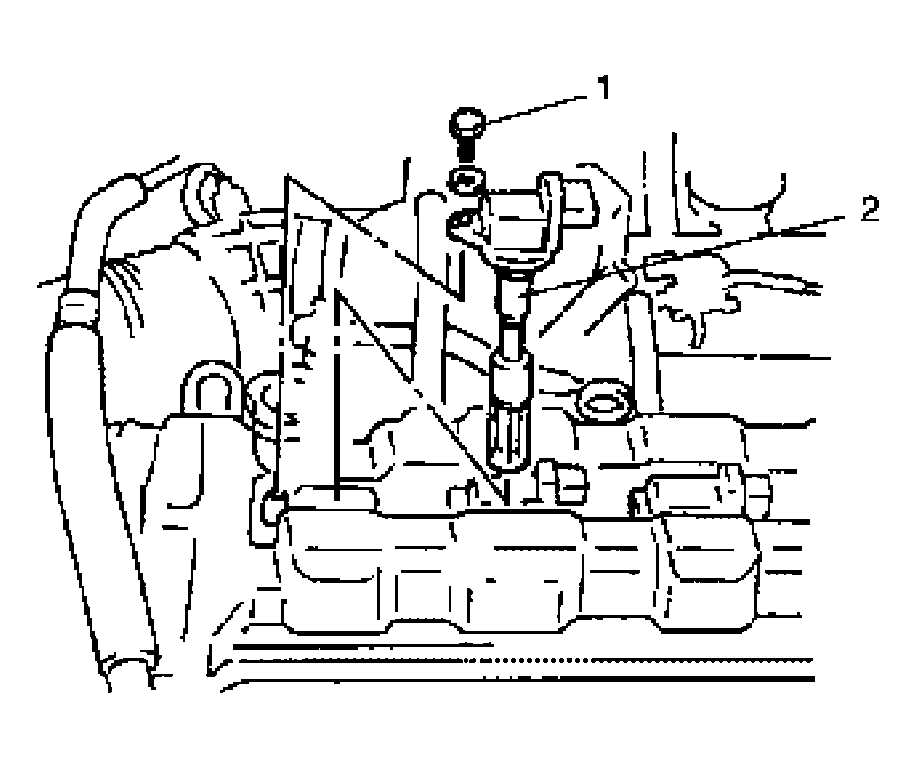

    Fig 1: Pulling Out Ignition Coil
    G04590033Courtesy of SUZUKI OF AMERICA CORP.
