Front Wheel Speed Sensor Inspection

Reference: FRONT WHEEL SPEED SENSOR REMOVAL AND INSTALLATION

• Check sensor for damage.
• Measure resistance of sensor.

Between both terminals (1) of sensor

1.2 - 1.6 kΩ at 20 °C (68 °F)

Between sensor terminal (1) and sensor body (2)

Infinity

If the check result is not as specified and any malcondition is found, replace.

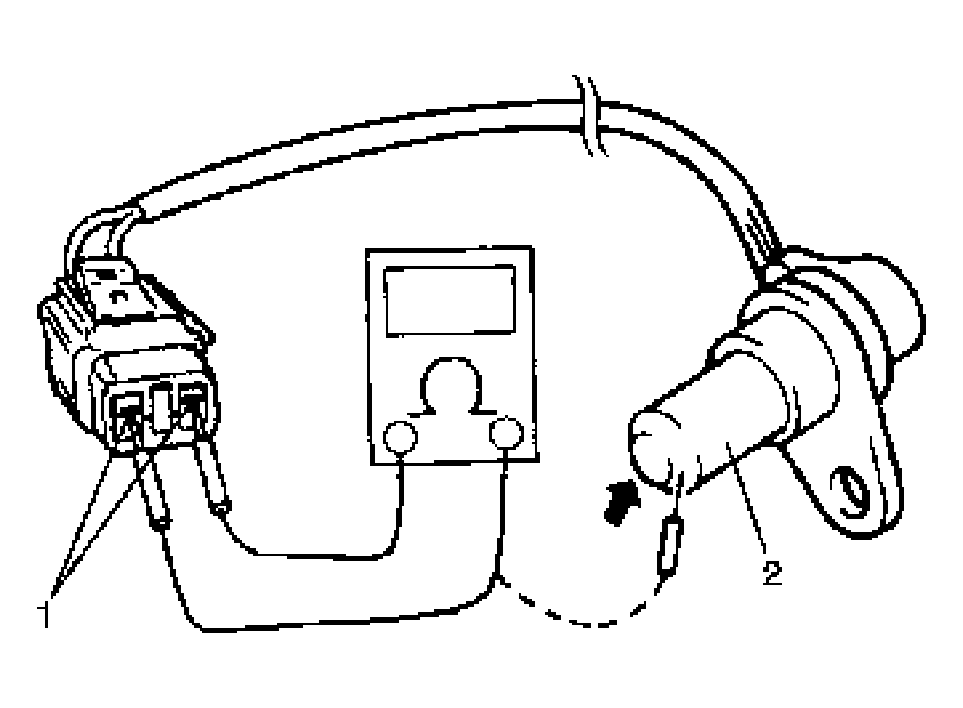

Fig 1: Measuring Resistance Between Sensor Terminal And Sensor Body

Courtesy of SUZUKI OF AMERICA CORP.
