Front Door Glass Removal and Installation: Installation

Reverse removal procedure noting the following instructions.

• If there is deformity for glass run, replace new one.
• Tighten door glass rear mounting screw (1) first, and then tighten door glass front mounting screw (2).
  Fig 1: Tightening Door Glass Rear Mounting Screw

  Courtesy of SUZUKI OF AMERICA CORP.
• Secure door sealing cover (1) with adhesive (2).

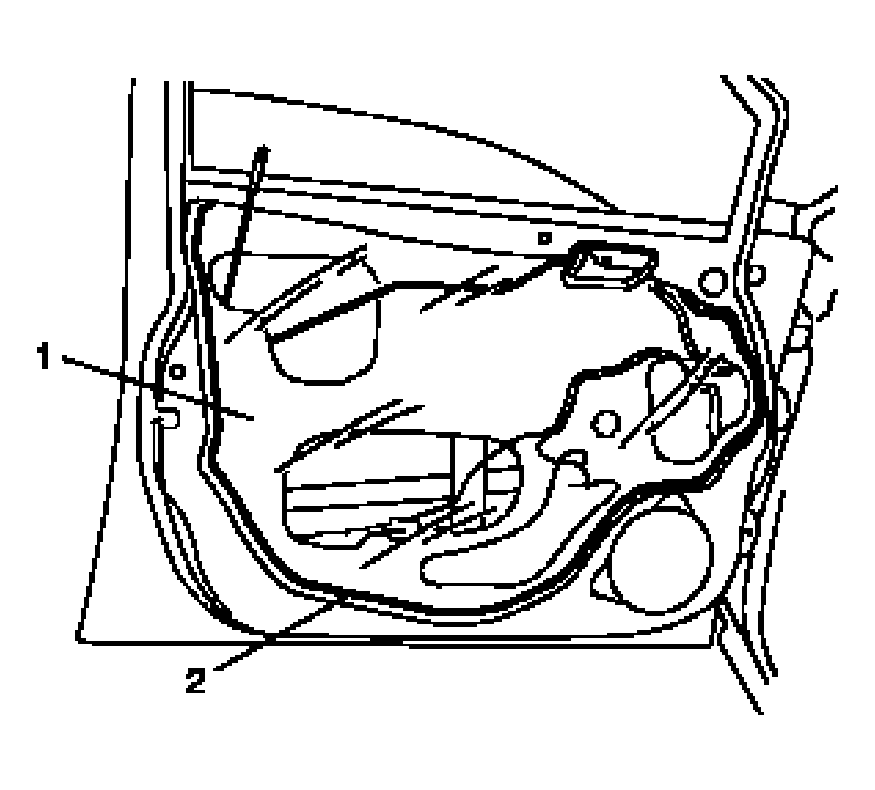

  Fig 2: Identifying Door Sealing Cover

  Courtesy of SUZUKI OF AMERICA CORP.
• Tighten front door outer weather-strip mounting screw as specified torque.

  Tightening torque

  Front door outer weather-strip mounting screw (a): 1.5 N.m (0.15 kg-m, 1.0 lb-ft)

  Fig 3: Tightening Front Door Outer Weather-Strip Mounting Screw

  Courtesy of SUZUKI OF AMERICA CORP.
