Rear Door Lock Assembly Removal and Installation: Removal

Remove rear door glass referring to REAR DOOR GLASS REMOVAL AND INSTALLATION .
Disconnect door opening control rod (1) and door latch control rod (2).
Disconnect door lock motor lead wire (if equipped).
Loosen door latch mounting screw (3), door latch actuator bolt (4) and remove door latch assembly (5).

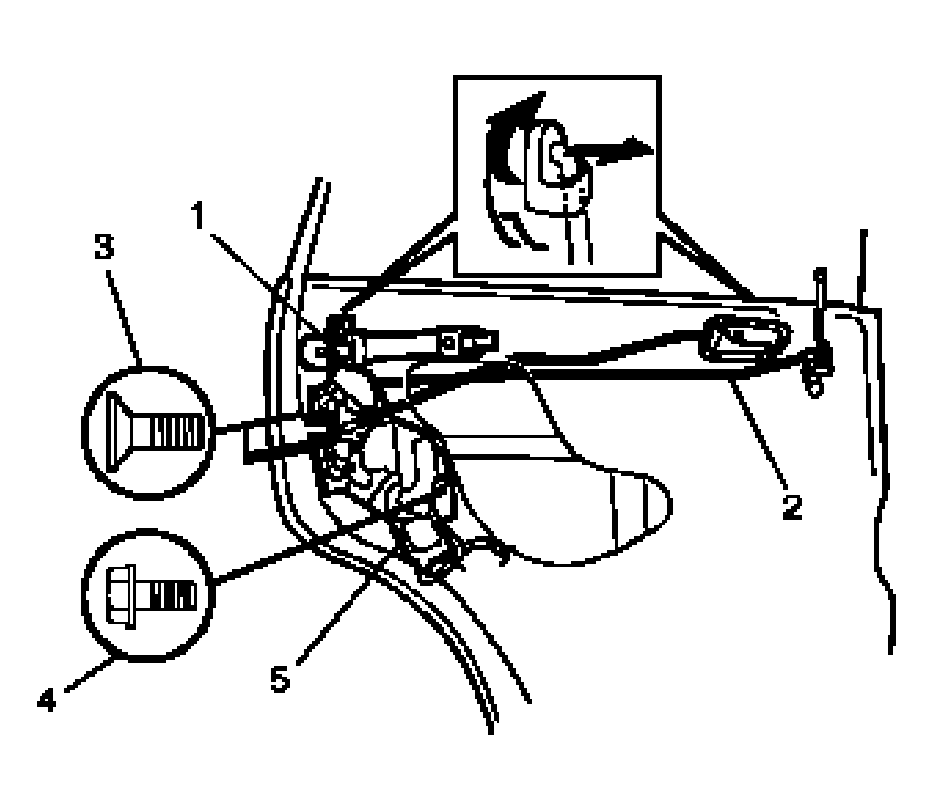

Fig 1: Removing Rear Door Lock Assembly
Courtesy of SUZUKI OF AMERICA CORP.
