Transmission Range Sensor (Shift Switch) Inspection and Adjustment: Adjustment

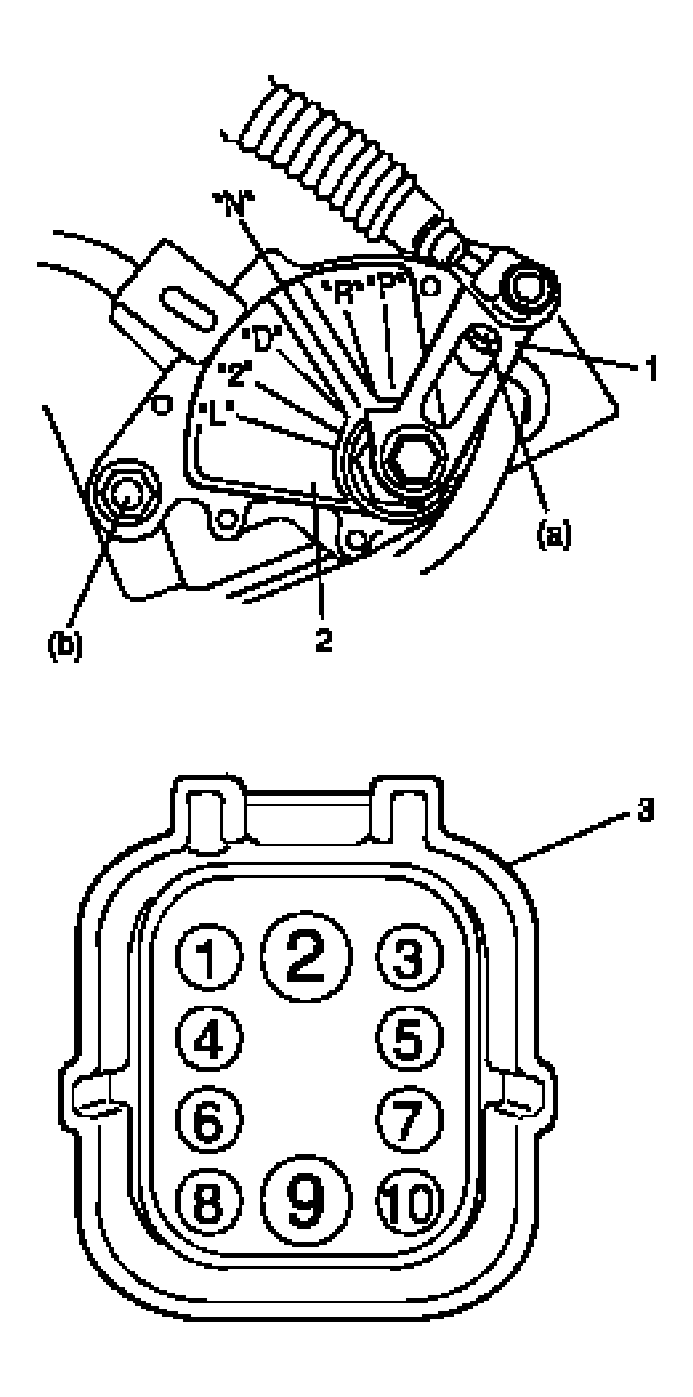

- Shift manual shift lever (1) to "N" range.
- Connect ohmmeter between 6 and 10 terminals of disconnected transmission range sensor connector (3).
- Turn transmission range sensor (2) gradually to find position where ohmmeter reading indicates continuity. Then fix transmission range sensor (2) at that position by tightening bolts and nut to specified torque.
Tightening torque
Transmission range sensor bolt a: 25 N.m (2.5 kg-m, 18.0 lb-ft)
Transmission range sensor nut b: 7.5 N.m (0.75 kg-m, 5.5 lb-ft)
- Connect transmission range sensor connector (3).
- Check that engine starts in "N" and "P" ranges but it doesn't start in "D", "2", "L" or "R" range. Also, check that back-up lamp turn ON in "R" range.
