Wheel Alignment Specifications
Wheel alignment specifications
WHEEL ALIGNMENT SPECIFICATIONS

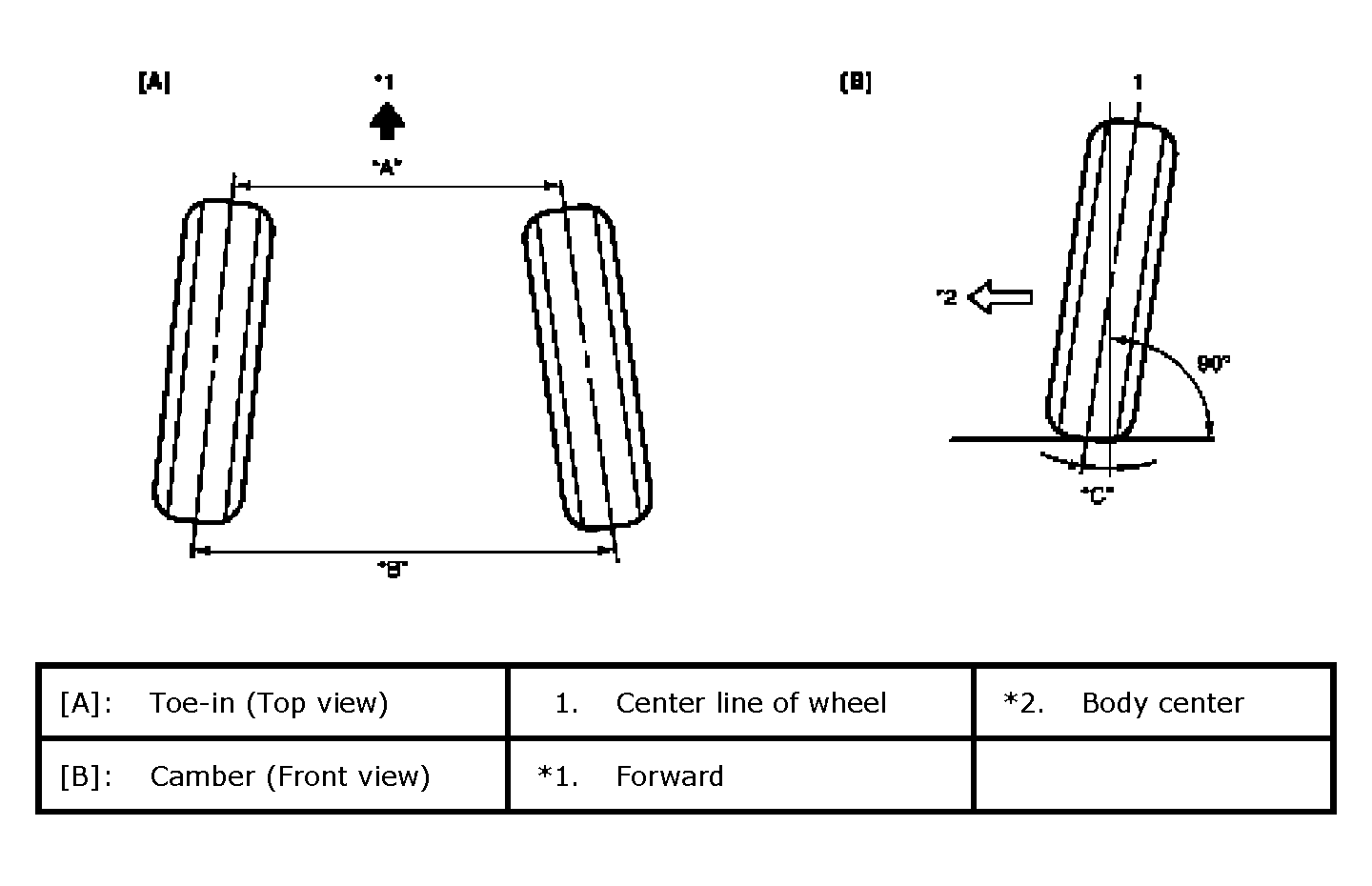

| Item | Front | Rear | |
|---|---|---|---|
| Toe ("B"-"A") (total) | IN 1.0 +/- 2 mm 0.039 +/- 0.079 in.) | IN 2.6 +/- 2 mm (0.1 +/- 0.079 in.) | |
| Camber "C" (Non adjustable, for reference only) | -0 ° 10'+/- 1 ° | -1 ° 15'+/- 1 ° | |
| Caster (Non adjustable, for reference only) | 2 ° 11'+/- 2 ° | - | |
| Kingpin Inclination | 12 ° 52'+/- 3 ° | - | |
| Side Slip Limit mm/m (in./3.3 ft) | IN 1.0 to IN 4.0 (IN 0.039 to IN 0.157) | IN 1.0 to IN 4.0 (IN 0.039 to IN 0.157) | |
| Steering angle (Turning angle) | Inside | 37.5 °+/- 3 ° | - |
| Outside | 32.5 °+/- 3 ° | - | |
|
NOTE:
Toe value in the specifications table was measured by using a toe-in gauge.
|
|||
