Automatic Transaxle Fluid Cooler Hose Inspection

Check automatic transaxle fluid cooler hose for fluid leakage, cracks, damage and deterioration.

Replace hose and/or clamp if any faulty condition is found.

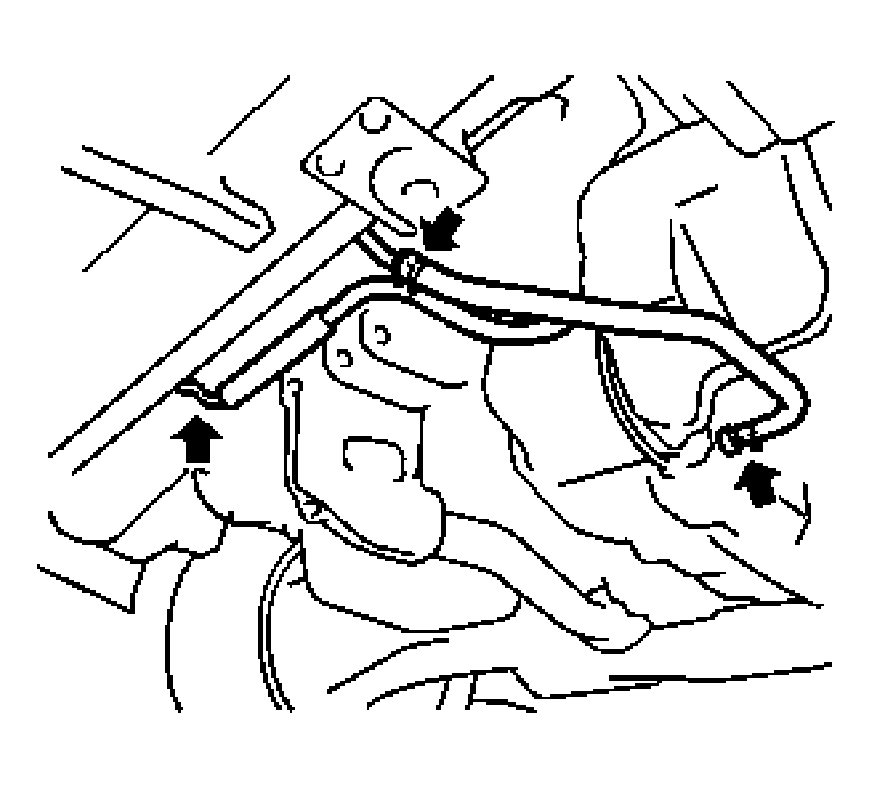

Fig 1: Checking Automatic Transaxle Fluid Cooler Hose For Fluid Leakage

Courtesy of SUZUKI OF AMERICA CORP.
