Oil Pump Removal and Installation: Removal

  1. Disconnect negative cable at battery.
  2. Drain engine oil.
  3. Remove oil pan and oil pump strainer.

    Refer to OIL PAN AND OIL PUMP STRAINER REMOVAL AND INSTALLATION .

  4. Remove oil pump sprocket cover (1).

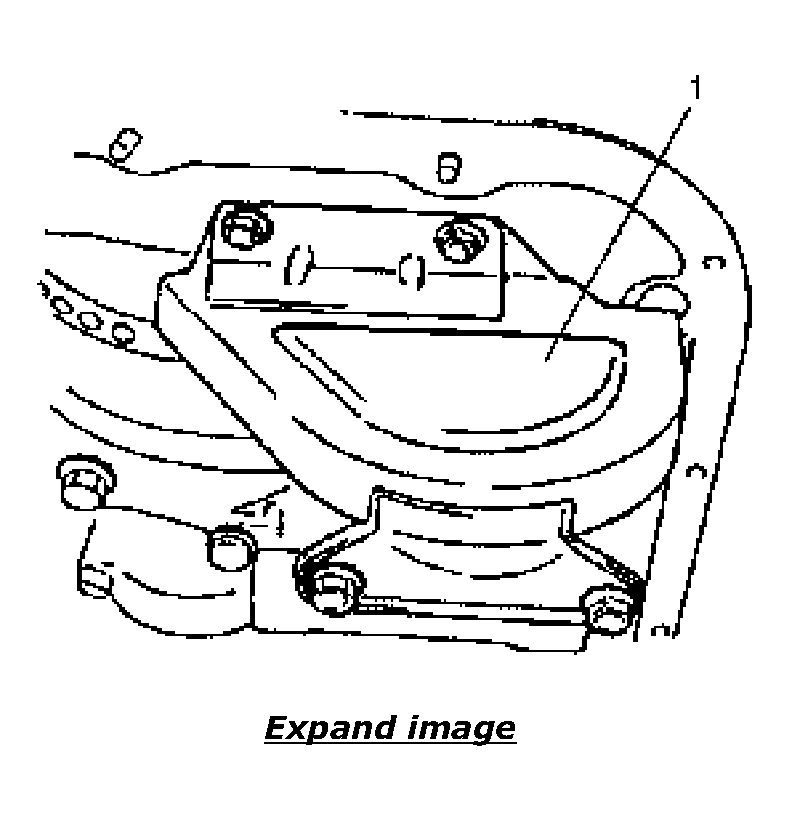

    Fig 1: Removing Oil Pump Sprocket Cover
    G04589930Courtesy of SUZUKI OF AMERICA CORP.
  5. Remove baffle plate (5) from lower crank case (1).
  6. Remove oil pump (2) with sprocket from lower crankcase (1).

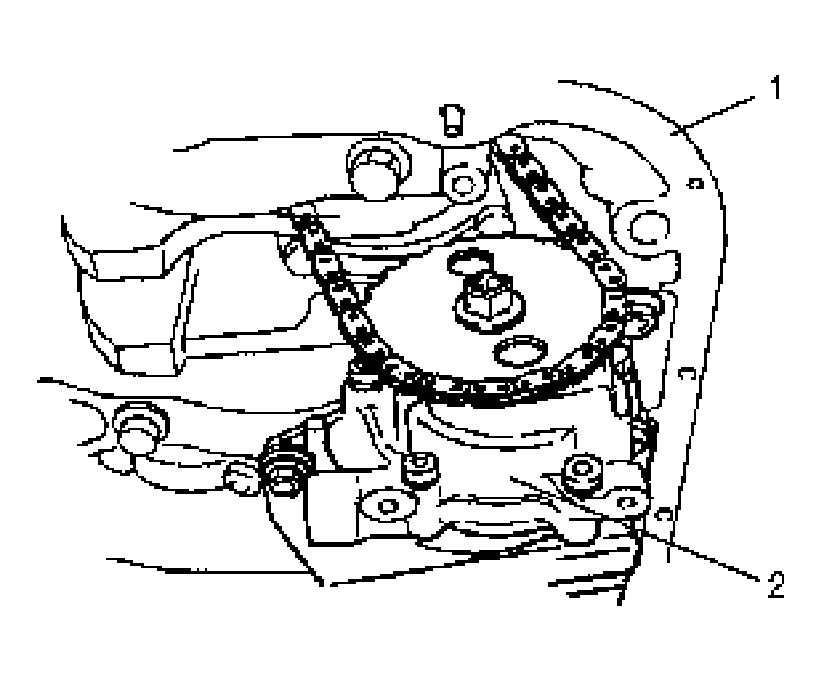

    Fig 2: Removing Oil Pump With Sprocket From Lower Crankcase
    G04589931Courtesy of SUZUKI OF AMERICA CORP.
