Accelerator Cable Adjustment

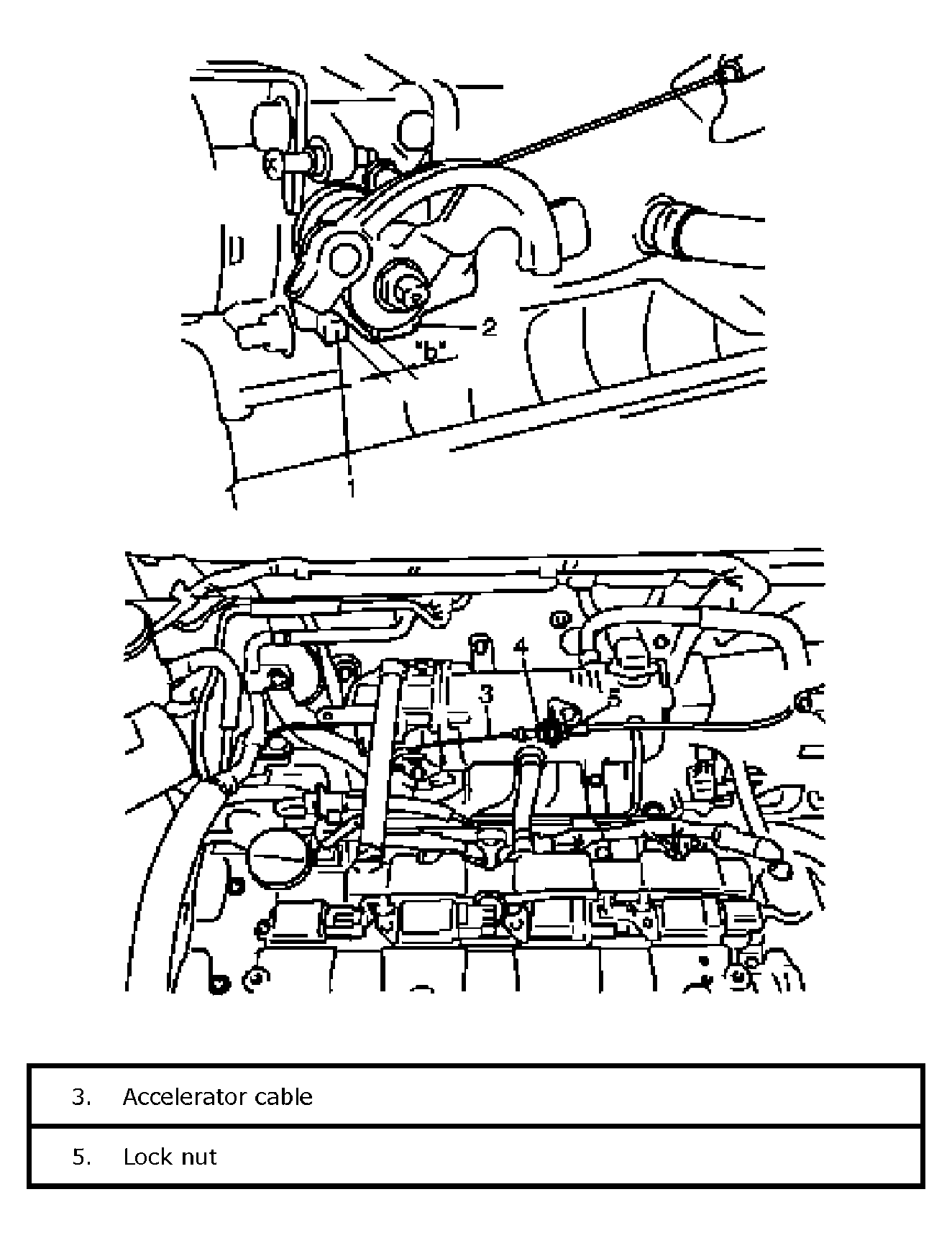

With accelerator pedal depressed fully, check clearance between throttle lever (2) and lever stopper (1) (throttle body) which should be within the following specification.
Clearance between throttle lever and lever stopper (with pedal depressed fully) "b"
0.5 - 2.0 mm (0.02 - 0.07 in.)
If measured value is out of specification, adjust it to specification with cable adjusting nut (4).
