Engine Compartment

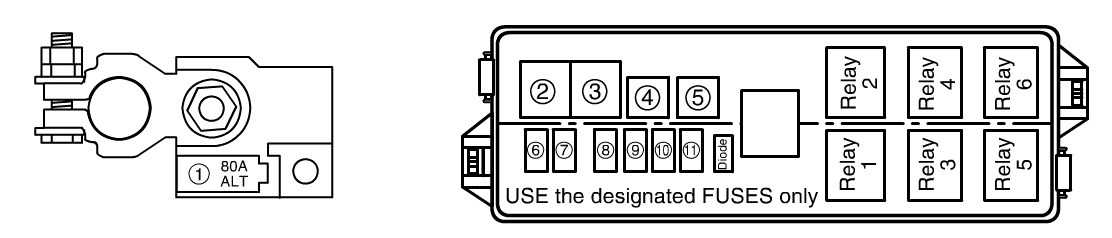

For fuse/relay box identification, refer to illustrations. See Fig 1
Engine Compartment (Main) Fuse/Relay Assignments
| Position No. | Amperage | Protected circuit |
|---|---|---|
| 1 | 80 A | Battery |
| -- | -- | Generator |
| -- | -- | Starting motor |
| -- | -- | All electric circuit |
| 2 | 60 A | Ignition switch |
| 3 | 60 A | Individual circuit fuse box |
| -- | -- | Supplementary fuse box (No.1) |
| 4 | 60 A | ABS control module |
| 5 | 30 A | Blower fan main relay |
| 6 | 15 A | Combination meter |
| -- | -- | Head light (R) |
| -- | -- | Diode #3 |
| 7 | 15 A | Head light (L) |
| -- | -- | Diode #3 |
| 8 | 30 A | Radiator fan control relay #1 |
| -- | -- | Radiator fan control relay #2 |
| 9 | 20 A | Compressor relay |
| -- | -- | Condenser fan relay |
| 10 | 15 A | Main relay |
| 11 | 15 A | Brake light switch |
