Door Mirror Heater (If Equipped) Inspection

  1. Remove door trim referring to FRONT DOOR GLASS REMOVAL AND INSTALLATION .
  2. Disconnect door mirror coupler (1).
  3. Check for continuity between terminals "a" and "b". If no continuity, replace outside mirror.

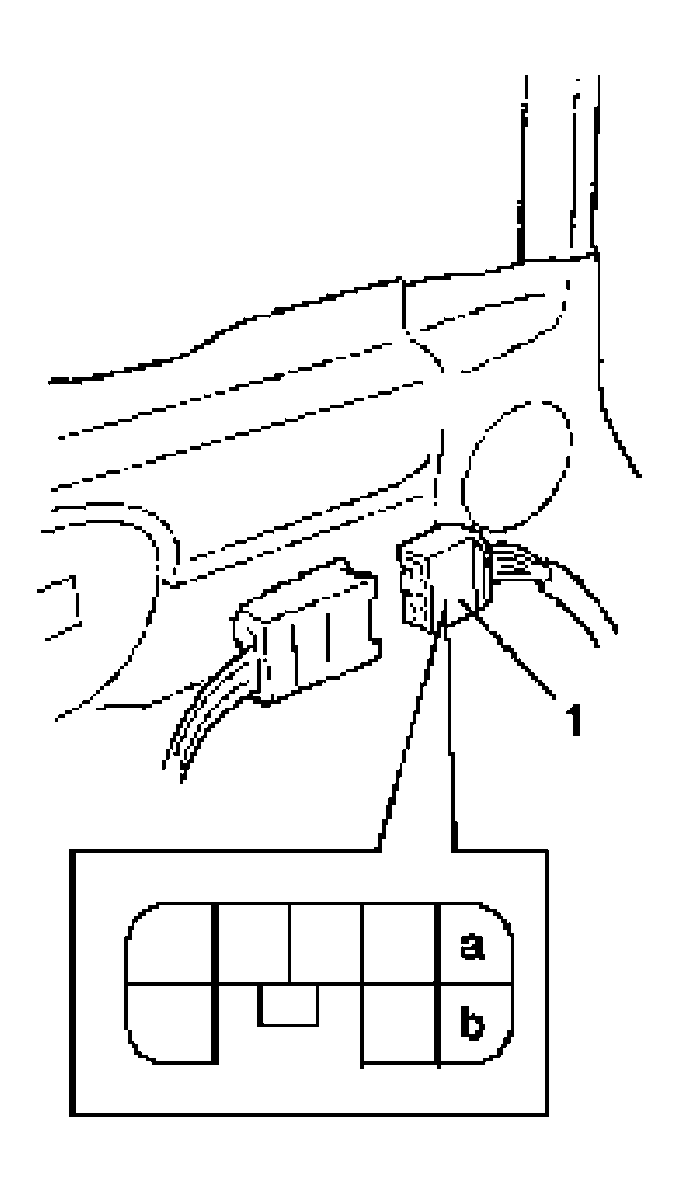

    Fig 1: Inspecting Door Mirror Heater Connector
    G04591683Courtesy of SUZUKI OF AMERICA CORP.
