Brake Light Switch Inspection

Check brake light switch for continuity between terminals at each switch position.

If check result is not as specified, replace switch.

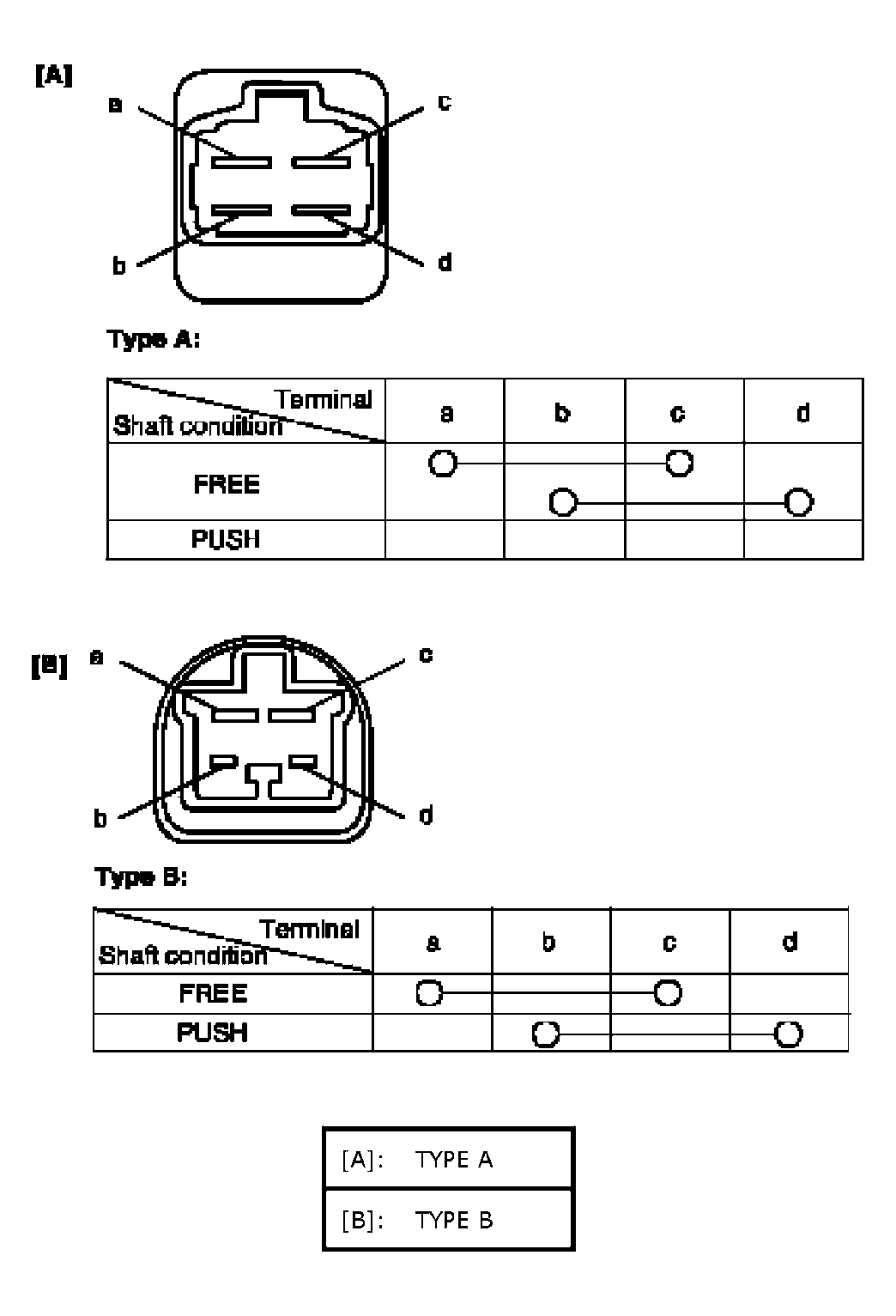

Fig 1: Locating Brake Light Switch Terminals
G04591564Courtesy of SUZUKI OF AMERICA CORP.
