Transfer Right Case and Left Case Disassembly and Assembly: Disassembly

  1. Remove oil seals (1) from transfer right case and left case by using special tool.

    Special Tool

    1. 09913-50121
  2. Remove oil protect plate (2) and oil receiver (3) from transfer right case.

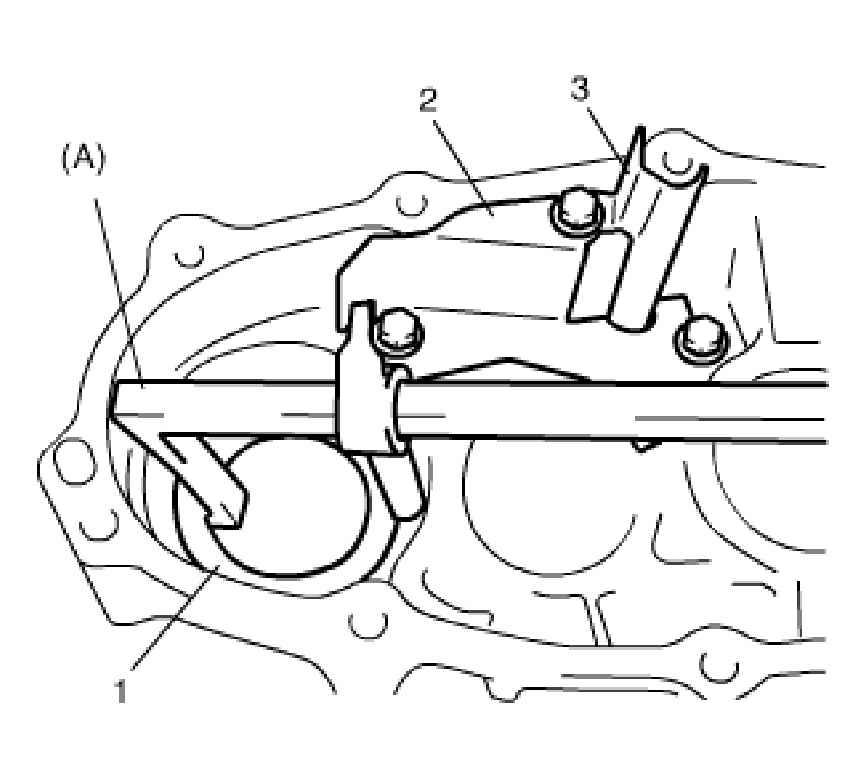

    Fig 1: Removing Oil Protect Plate And Oil Receiver From Transfer Right Case
    G04590576Courtesy of SUZUKI OF AMERICA CORP.
  3. Remove adjuster plates (1) from transfer right and left cases.
  4. Remove bevel gear adjuster (2) from transfer right and left case by using special tool.

    Special Tool

    1. 09940-14940

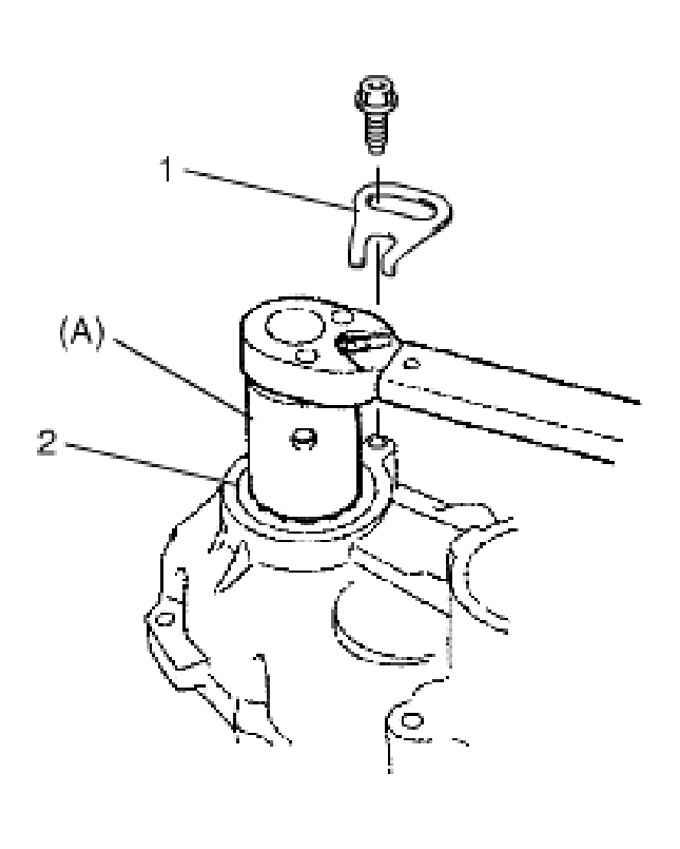

      Fig 2: Removing Bevel Gear Adjuster From Transfer Right And Left Case
      G04590577Courtesy of SUZUKI OF AMERICA CORP.
