Valve Body Assembly Disassembly and Reassembly: Reassembly

Apply A/T fluid to new O-rings and install O-rings to each solenoid valves.
Install solenoid valves to valve body and tighten bolts to specified torque.
Tightening torque

Shift solenoid bolts a: 7.0 N.m (0.7 kg-m, 5.0 lb-ft)

Pressure control solenoid bolt b: 7.0 N.m (0.7 kg-m, 5.0 lb-ft)

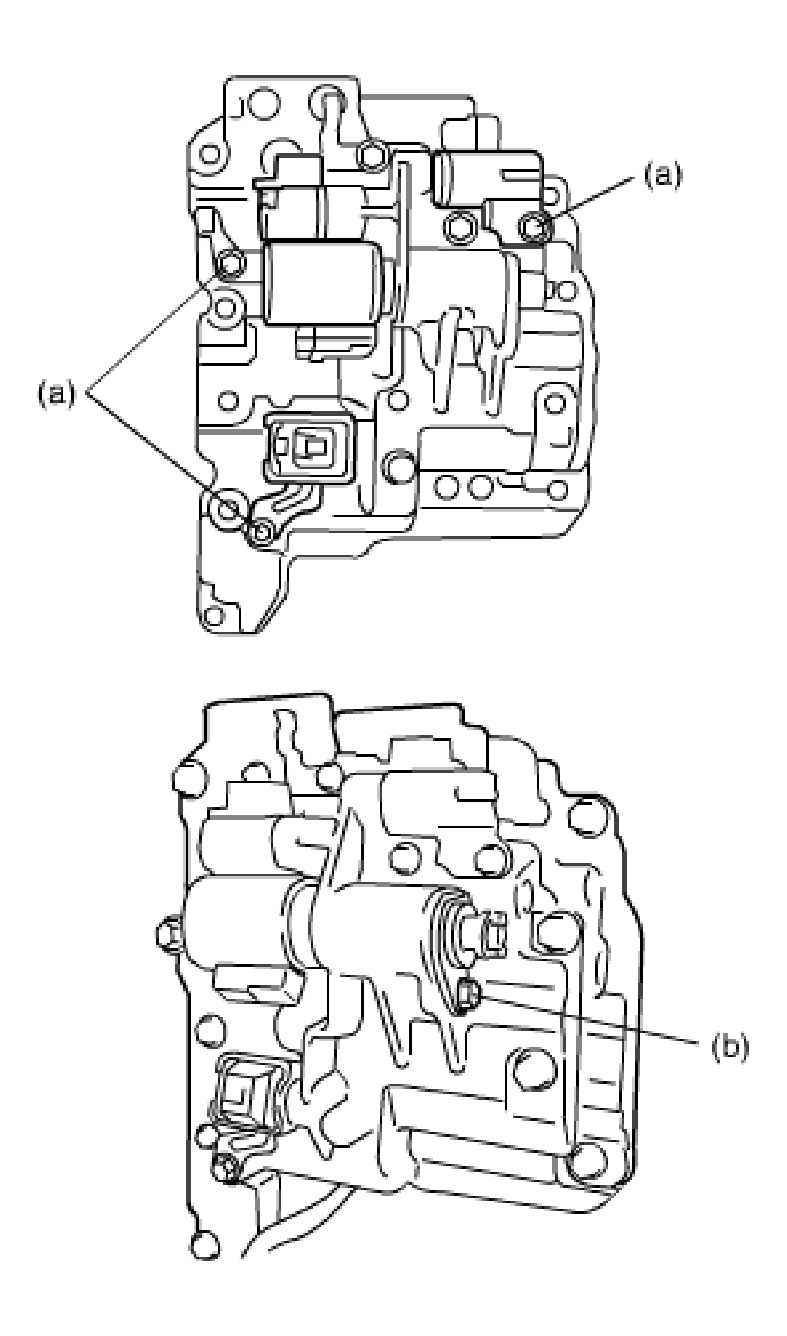

Fig 1: Installing Solenoid Valves To Valve Body
Courtesy of SUZUKI OF AMERICA CORP.
Install manual shift valve to valve body.
