Underdrive Gear Preliminary Check

Reference: AUTOMATIC TRANSAXLE UNIT DISASSEMBLY

Reference: AUTOMATIC TRANSAXLE UNIT ASSEMBLY

Measure starting torque of underdrive gear, using spring force gauge, attach cord at gear of underdrive gear. If starting torque is out of specification, replace underdrive gear assembly.

Starting torque of underdrive gear

0.55 - 1.35 N.m (0.06 - 0.14 kgf-m, 0.40 - 1.01 lb-ft)

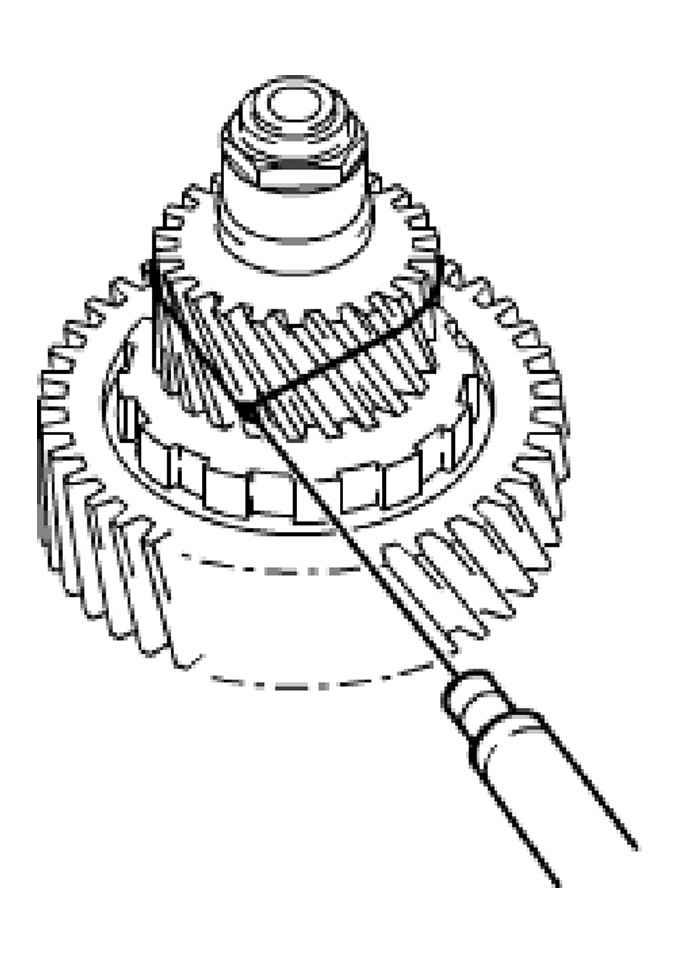

Fig 1: Measuring Starting Torque Of Underdrive Gear

Courtesy of SUZUKI OF AMERICA CORP.
