Transmission Range Sensor (Shift Switch) Inspection and Adjustment: Inspection
- Disconnect transmission range sensor connector (1).

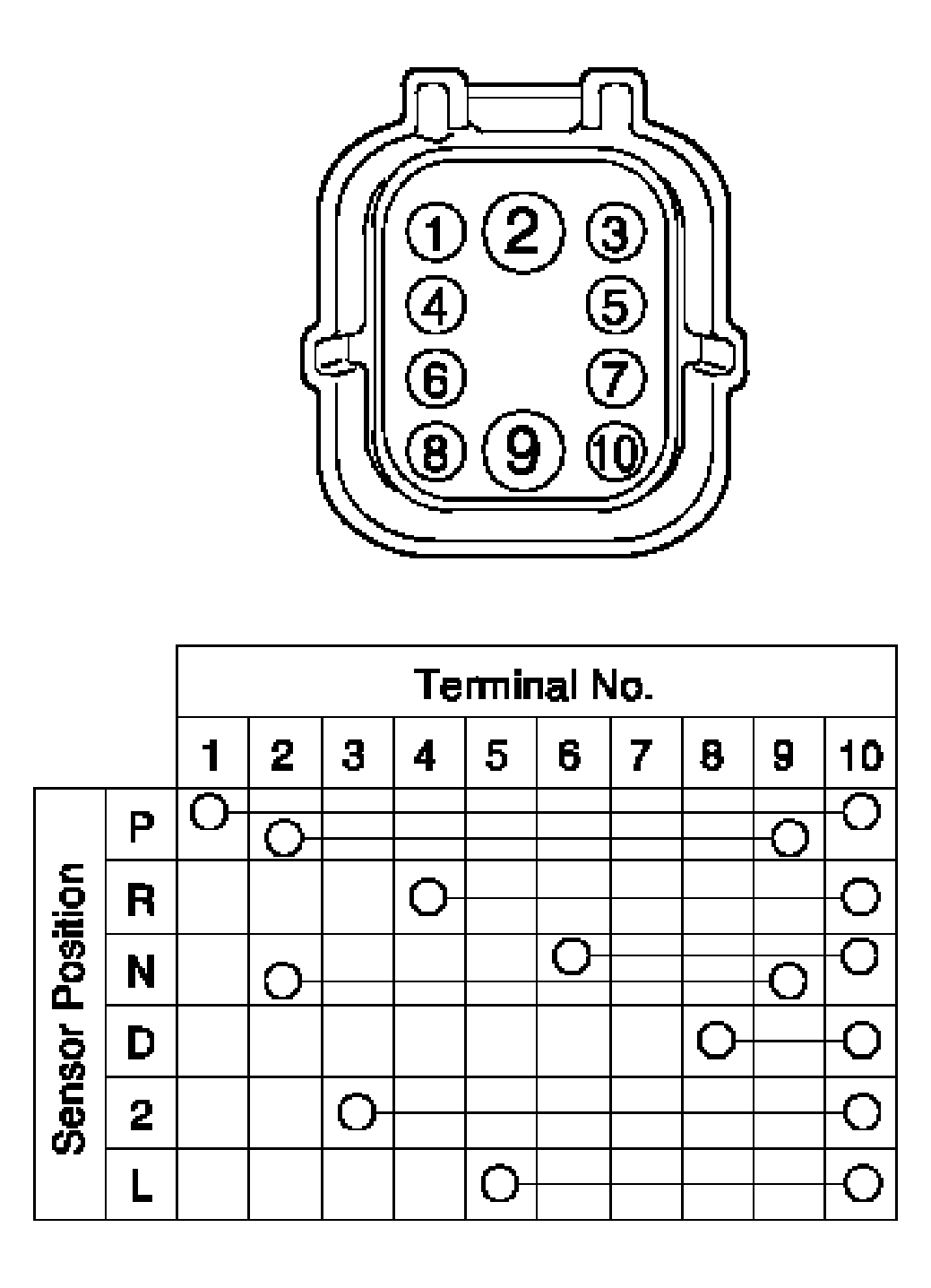

- Check that continuity exists at terminals as shown in the following figure by moving select lever. If check result is not as specified, adjust switch.
